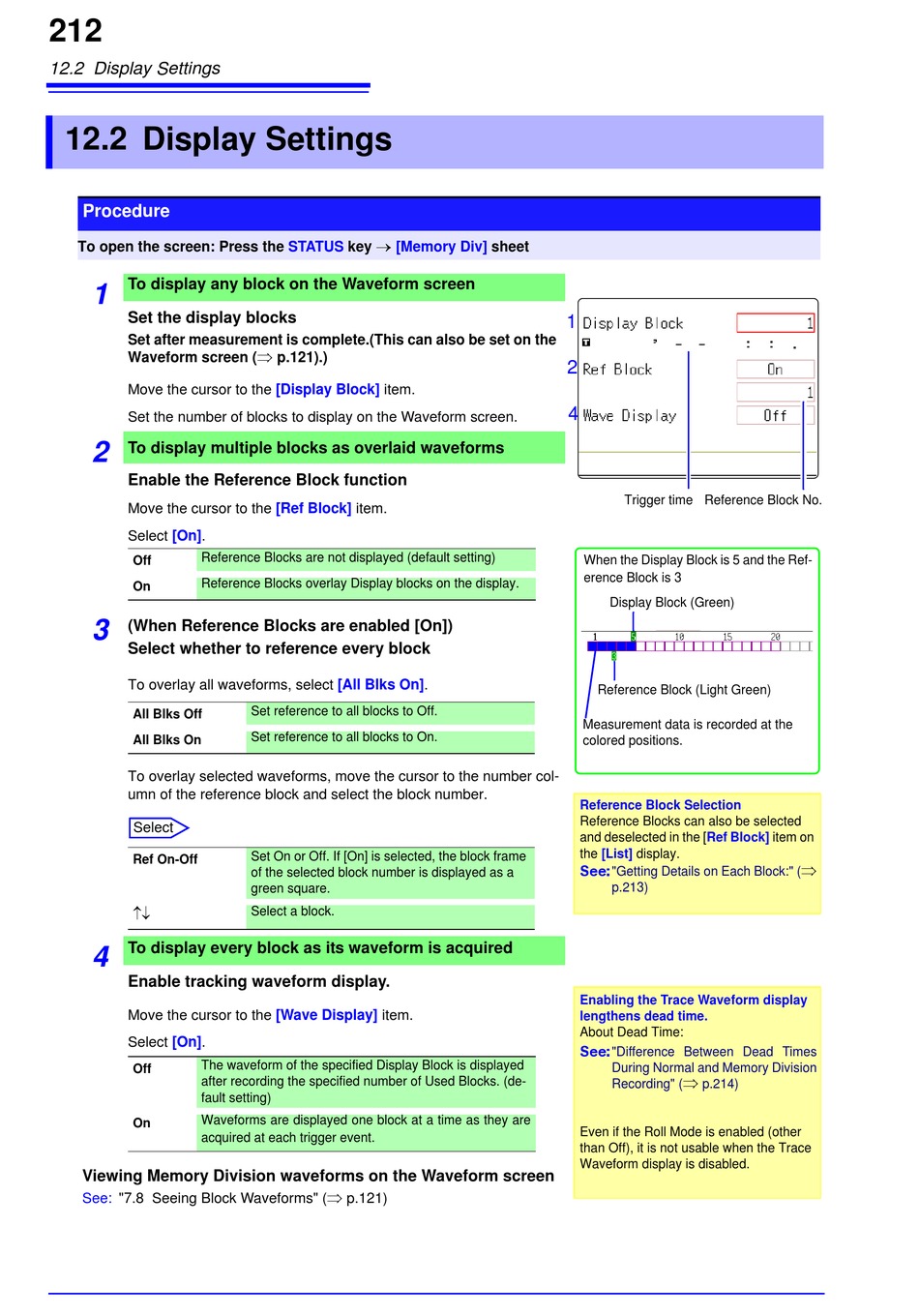

12.2 Display Settings

12.2 Display Settings
Procedure
To open the screen: Press the
To display any block on the Waveform screen
1
Set the display blocks
Set after measurement is complete.(This can also be set on the
Waveform screen (
Move the cursor to the
Set the number of blocks to display on the Waveform screen.
2 To display multiple blocks as overlaid waveforms
Enable the Reference Block function
Move the cursor to the
Select [On].
Reference Blocks are not displayed (default setting)
Off
Reference Blocks overlay Display blocks on the display.
On
3
(When Reference Blocks are enabled [On])
Select whether to reference every block
To overlay all waveforms, select
All Blks Off
All Blks On
To overlay selected waveforms, move the cursor to the number col-
umn of the reference block and select the block number.
Select
Ref On-Off

To display every block as its waveform is acquired
4
Enable tracking waveform display.
Move the cursor to the
Select [On].
The waveform of the specified Display Block is displayed
Off
after recording the specified number of Used Blocks. (de-
fault setting)
Waveforms are displayed one block at a time as they are
On
acquired at each trigger event.
Viewing Memory Division waveforms on the Waveform screen
See: "7.8 Seeing Block Waveforms" (

STATUS key [Memory Div]

p.121).)
[Display Block] item.
[Ref Block] item.
[All Blks On].
Set reference to all blocks to Off.
Set reference to all blocks to On.
Set On or Off. If [On] is selected, the block frame
of the selected block number is displayed as a
green square.
Select a block.
[Wave Display] item.

p.121)
sheet
1
2
4
Trigger time
When the Display Block is 5 and the Ref-
erence Block is 3
Display Block (Green)
Reference Block (Light Green)
Measurement data is recorded at the
colored positions.
Reference Block Selection
Reference Blocks can also be selected
and deselected in the
the [List] display.
See:
"Getting Details on Each Block:" (
p.213)
Enabling the Trace Waveform display
lengthens dead time.
About Dead Time:
See:
"Difference Between Dead Times
During Normal and Memory Division
Recording" (
Even if the Roll Mode is enabled (other
than Off), it is not usable when the Trace
Waveform display is disabled.
Reference Block No.
[Ref Block] item on


p.214)
