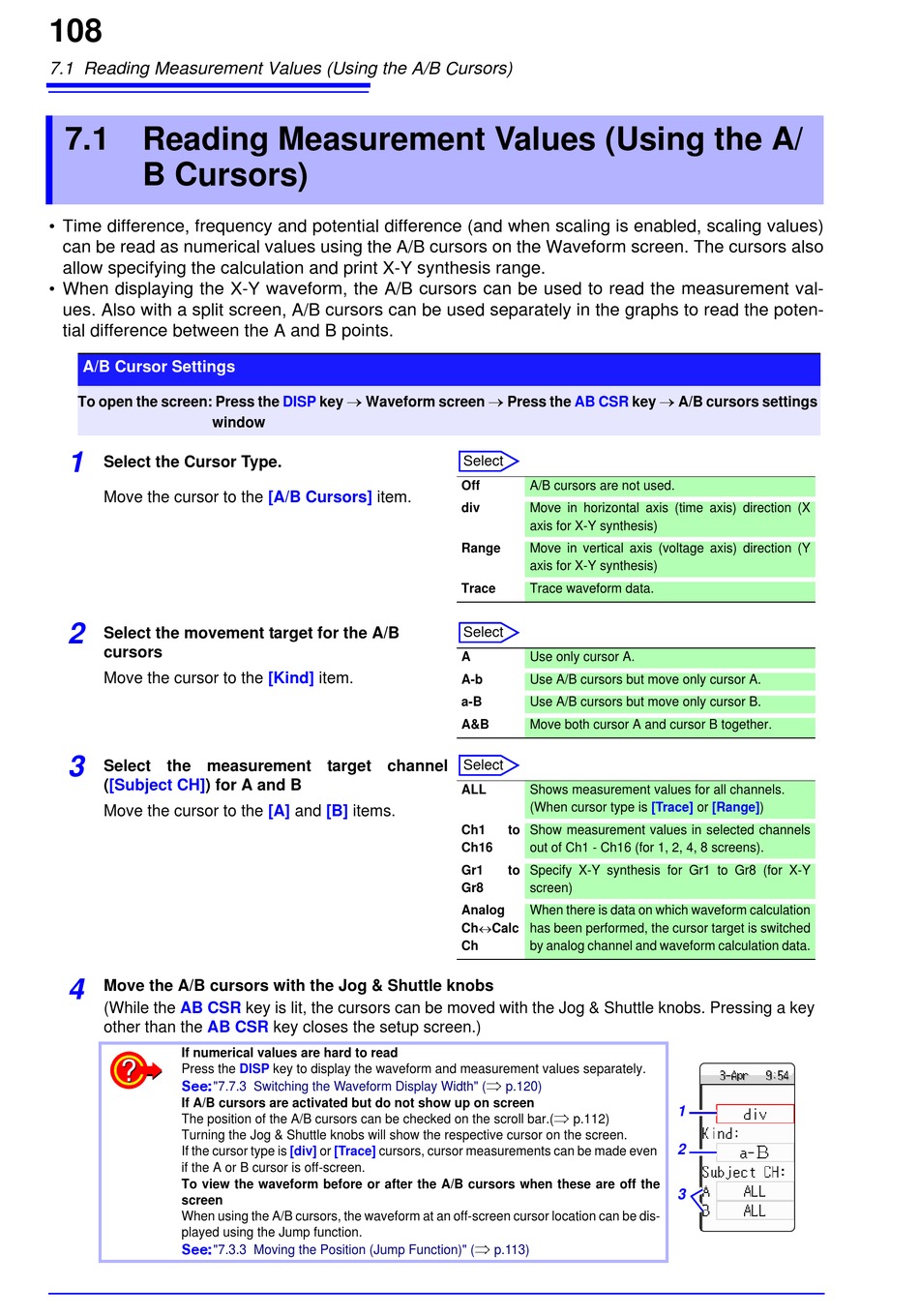

7.1 Reading Measurement Values (Using the A/B Cursors)

7.1 Reading Measurement Values (Using the A/
B Cursors)
• Time difference, frequency and potential difference (and when scaling is enabled, scaling values)
can be read as numerical values using the A/B cursors on the Waveform screen. The cursors also
allow specifying the calculation and print X-Y synthesis range.
• When displaying the X-Y waveform, the A/B cursors can be used to read the measurement val-
ues. Also with a split screen, A/B cursors can be used separately in the graphs to read the poten-
tial difference between the A and B points.
A/B Cursor Settings
To open the screen: Press the
window
1
Select the Cursor Type.
Move the cursor to the
2
Select the movement target for the A/B
cursors
Move the cursor to the
3
Select the measurement target channel
([Subject CH]) for A and B
Move the cursor to the
4
Move the A/B cursors with the Jog & Shuttle knobs
(While the AB CSR
other than the AB CSR
If numerical values are hard to read
Press the
See:
"7.7.3 Switching the Waveform Display Width" (
If A/B cursors are activated but do not show up on screen
The position of the A/B cursors can be checked on the scroll bar.(
Turning the Jog & Shuttle knobs will show the respective cursor on the screen.
If the cursor type is
if the A or B cursor is off-screen.
To view the waveform before or after the A/B cursors when these are off the
screen
When using the A/B cursors, the waveform at an off-screen cursor location can be dis-
played using the Jump function.
See:
"7.3.3 Moving the Position (Jump Function)" (

DISP key Waveform screen
[A/B Cursors] item.
[Kind] item.
[A] and [B] items.
key is lit, the cursors can be moved with the Jog & Shuttle knobs. Pressing a key
key closes the setup screen.)
DISP key to display the waveform and measurement values separately.
[div] or [Trace] cursors, cursor measurements can be made even

Press the AB CSR key
Select
Off A/B cursors are not used.
div Move in horizontal axis (time axis) direction (X
axis for X-Y synthesis)
Range Move in vertical axis (voltage axis) direction (Y
axis for X-Y synthesis)
Trace Trace waveform data.
Select
A Use only cursor A.
A-b Use A/B cursors but move only cursor A.
a-B Use A/B cursors but move only cursor B.
A&B Move both cursor A and cursor B together.
Select
ALL Shows measurement values for all channels.
(When cursor type is
Ch1 to Show measurement values in selected channels
Ch16 out of Ch1 - Ch16 (for 1, 2, 4, 8 screens).
Gr1 to Specify X-Y synthesis for Gr1 to Gr8 (for X-Y
Gr8 screen)
Analog When there is data on which waveform calculation
ChCalc has been performed, the cursor target is switched
Ch by analog channel and waveform calculation data.

p.120)

p.112)

p.113)

A/B cursors settings
[Trace] or [Range])
1
2
3
