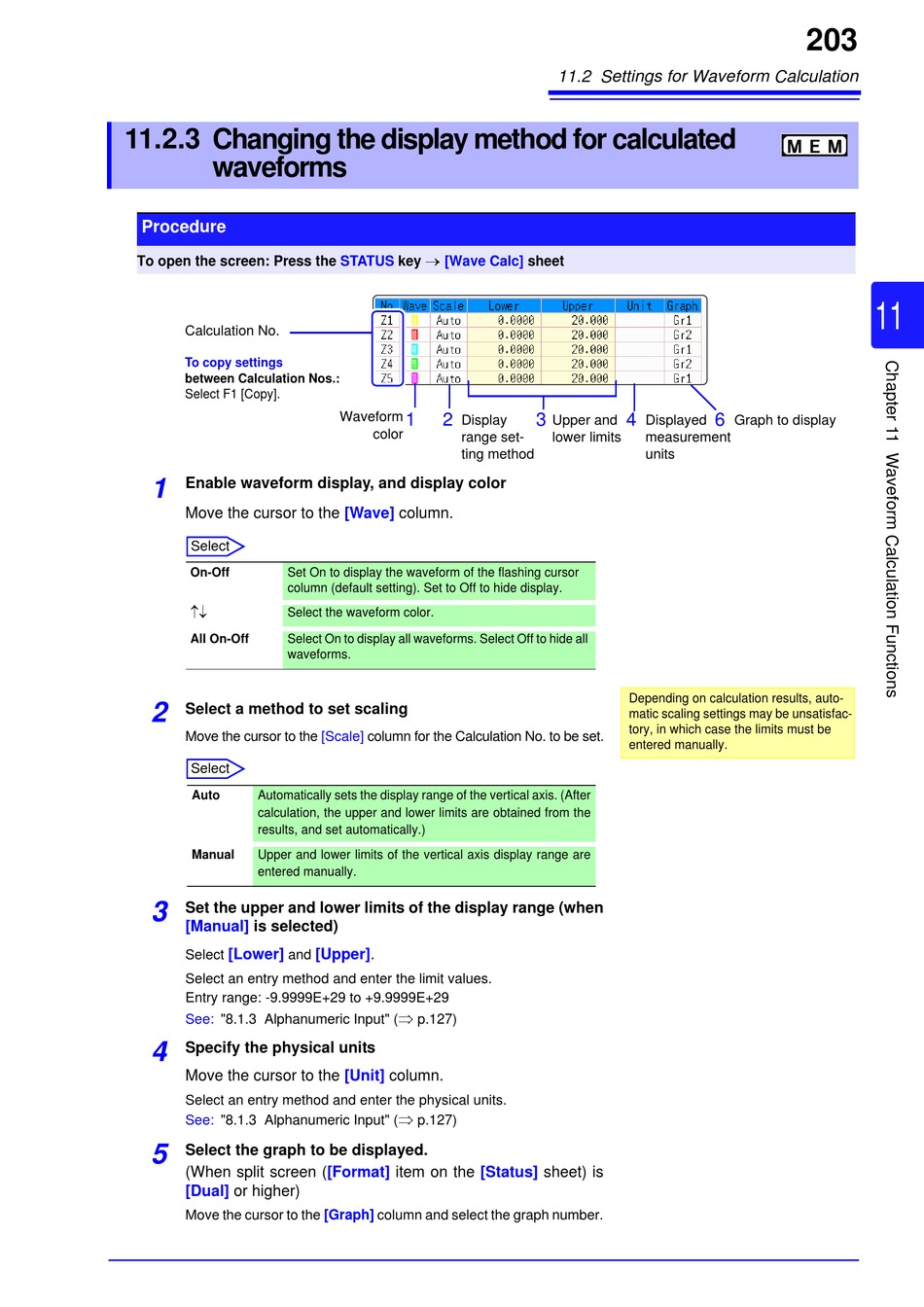

11.2.3 Changing the display method for calculated
waveforms
Procedure
To open the screen: Press the
Calculation No.
To copy settings
between Calculation Nos.:
Select F1 [Copy].
Enable waveform display, and display color
1
Move the cursor to the
Select
On-Off Set On to display the waveform of the flashing cursor
column (default setting). Set to Off to hide display.

Select the waveform color.
All On-Off Select On to display all waveforms. Select Off to hide all
waveforms.
2
Select a method to set scaling
Move the cursor to the
Select
Auto Automatically sets the display range of the vertical axis. (After
calculation, the upper and lower limits are obtained from the
results, and set automatically.)
Manual Upper and lower limits of the vertical axis display range are
entered manually.
3
Set the upper and lower limits of the display range (when
[Manual] is selected)
[Lower]
Select and
Select an entry method and enter the limit values.
Entry range: -9.9999E+29 to +9.9999E+29
See: "8.1.3 Alphanumeric Input" (
4
Specify the physical units
Move the cursor to the
Select an entry method and enter the physical units.
See: "8.1.3 Alphanumeric Input" (
5
Select the graph to be displayed.
(When split screen
[Dual] or higher)
Move the cursor to the

STATUS key [Wave Calc]
1 2
Waveform
Display
color
range set-
ting method
[Wave] column.
[Scale] column for the Calculation No. to be set.
[Upper].

p.127)
[Unit] column.

p.127)
([Format] item on the [Status]
[Graph] column and select the graph number.
11.2 Settings for Waveform Calculation
sheet
3 4
Upper and Displayed
lower limits measurement
units
Depending on calculation results, auto-
matic scaling settings may be unsatisfac-
tory, in which case the limits must be
entered manually.
sheet) is
203
11
6
Graph to display
