324

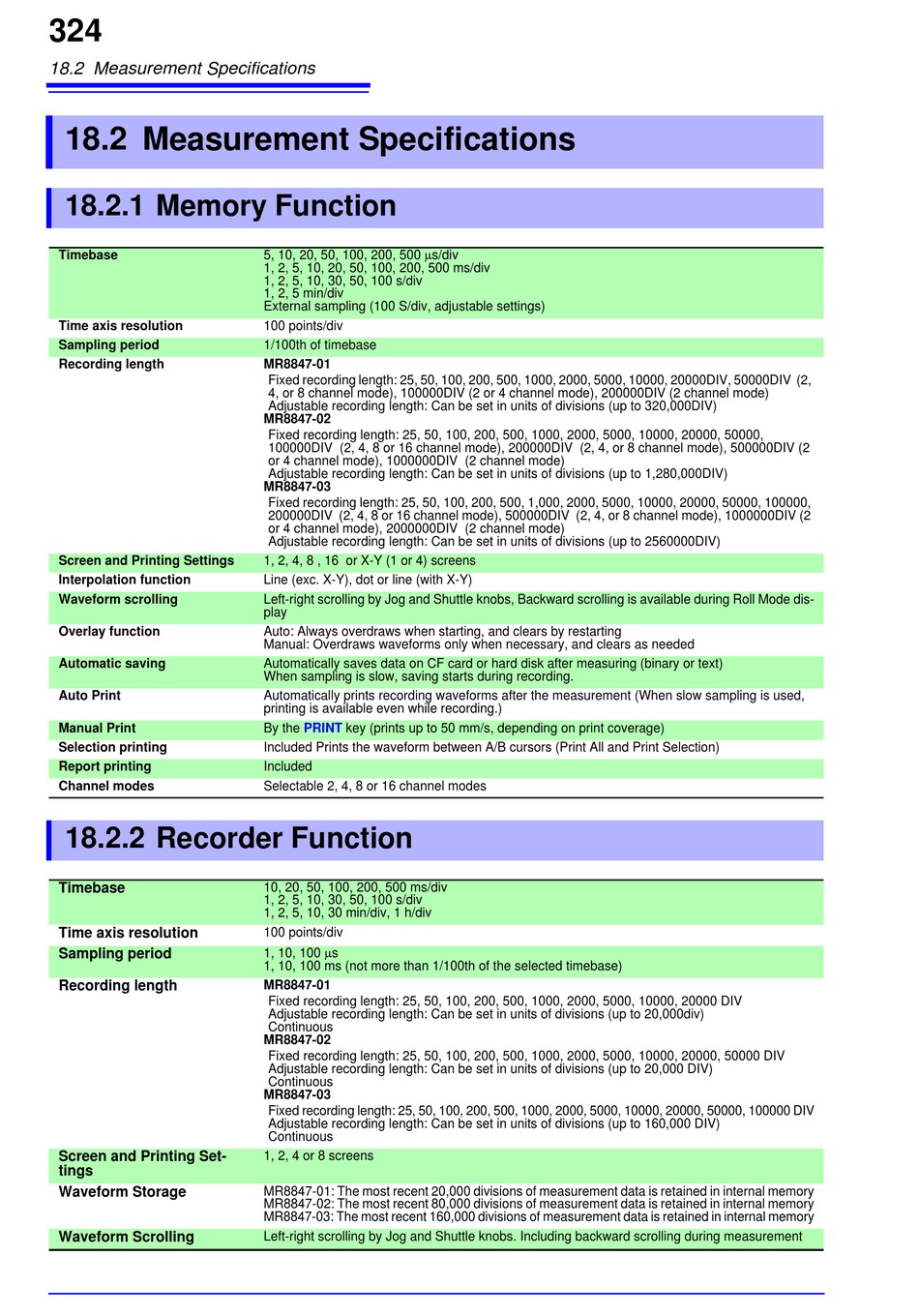

18.2 Measurement Specifications

18.2 Measurement Specifications

18.2.1 Memory Function

Timebase
Time axis resolution
Sampling period
Recording length
Screen and Printing Settings
Interpolation function
Waveform scrolling
Overlay function
Automatic saving
Auto Print
Manual Print
Selection printing
Report printing
Channel modes

18.2.2 Recorder Function

Timebase
Time axis resolution
Sampling period
Recording length
Screen and Printing Set-
tings
Waveform Storage
Waveform Scrolling
5, 10, 20, 50, 100, 200, 500 s/div
1, 2, 5, 10, 20, 50, 100, 200, 500 ms/div
1, 2, 5, 10, 30, 50, 100 s/div
1, 2, 5 min/div
External sampling (100 S/div, adjustable settings)
100 points/div
1/100th of timebase
MR8847-01
Fixed recording length: 25, 50, 100, 200, 500, 1000, 2000, 5000, 10000, 20000DIV, 50000DIV (2,
4, or 8 channel mode), 100000DIV (2 or 4 channel mode), 200000DIV (2 channel mode)
Adjustable recording length: Can be set in units of divisions (up to 320,000DIV)
MR8847-02
Fixed recording length: 25, 50, 100, 200, 500, 1000, 2000, 5000, 10000, 20000, 50000,
100000DIV (2, 4, 8 or 16 channel mode), 200000DIV (2, 4, or 8 channel mode), 500000DIV (2
or 4 channel mode), 1000000DIV (2 channel mode)
Adjustable recording length: Can be set in units of divisions (up to 1,280,000DIV)
MR8847-03
Fixed recording length: 25, 50, 100, 200, 500, 1,000, 2000, 5000, 10000, 20000, 50000, 100000,
200000DIV (2, 4, 8 or 16 channel mode), 500000DIV (2, 4, or 8 channel mode), 1000000DIV (2
or 4 channel mode), 2000000DIV (2 channel mode)
Adjustable recording length: Can be set in units of divisions (up to 2560000DIV)
1, 2, 4, 8 , 16 or X-Y (1 or 4) screens
Line (exc. X-Y), dot or line (with X-Y)
Left-right scrolling by Jog and Shuttle knobs, Backward scrolling is available during Roll Mode dis-
play
Auto: Always overdraws when starting, and clears by restarting
Manual: Overdraws waveforms only when necessary, and clears as needed
Automatically saves data on CF card or hard disk after measuring (binary or text)
When sampling is slow, saving starts during recording.
Automatically prints recording waveforms after the measurement (When slow sampling is used,
printing is available even while recording.)
By the PRINT key (prints up to 50 mm/s, depending on print coverage)
Included Prints the waveform between A/B cursors (Print All and Print Selection)
Included
Selectable 2, 4, 8 or 16 channel modes
10, 20, 50, 100, 200, 500 ms/div
1, 2, 5, 10, 30, 50, 100 s/div
1, 2, 5, 10, 30 min/div, 1 h/div
100 points/div
1, 10, 100 s
1, 10, 100 ms (not more than 1/100th of the selected timebase)
MR8847-01
Fixed recording length: 25, 50, 100, 200, 500, 1000, 2000, 5000, 10000, 20000 DIV
Adjustable recording length: Can be set in units of divisions (up to 20,000div)
Continuous
MR8847-02
Fixed recording length: 25, 50, 100, 200, 500, 1000, 2000, 5000, 10000, 20000, 50000 DIV
Adjustable recording length: Can be set in units of divisions (up to 20,000 DIV)
Continuous
MR8847-03
Fixed recording length: 25, 50, 100, 200, 500, 1000, 2000, 5000, 10000, 20000, 50000, 100000 DIV
Adjustable recording length: Can be set in units of divisions (up to 160,000 DIV)
Continuous
1, 2, 4 or 8 screens
MR8847-01: The most recent 20,000 divisions of measurement data is retained in internal memory
MR8847-02: The most recent 80,000 divisions of measurement data is retained in internal memory
MR8847-03: The most recent 160,000 divisions of measurement data is retained in internal memory
Left-right scrolling by Jog and Shuttle knobs. Including backward scrolling during measurement
