DIGITAL PROMAX X-RAY SYSTEM - MAIN PARTS

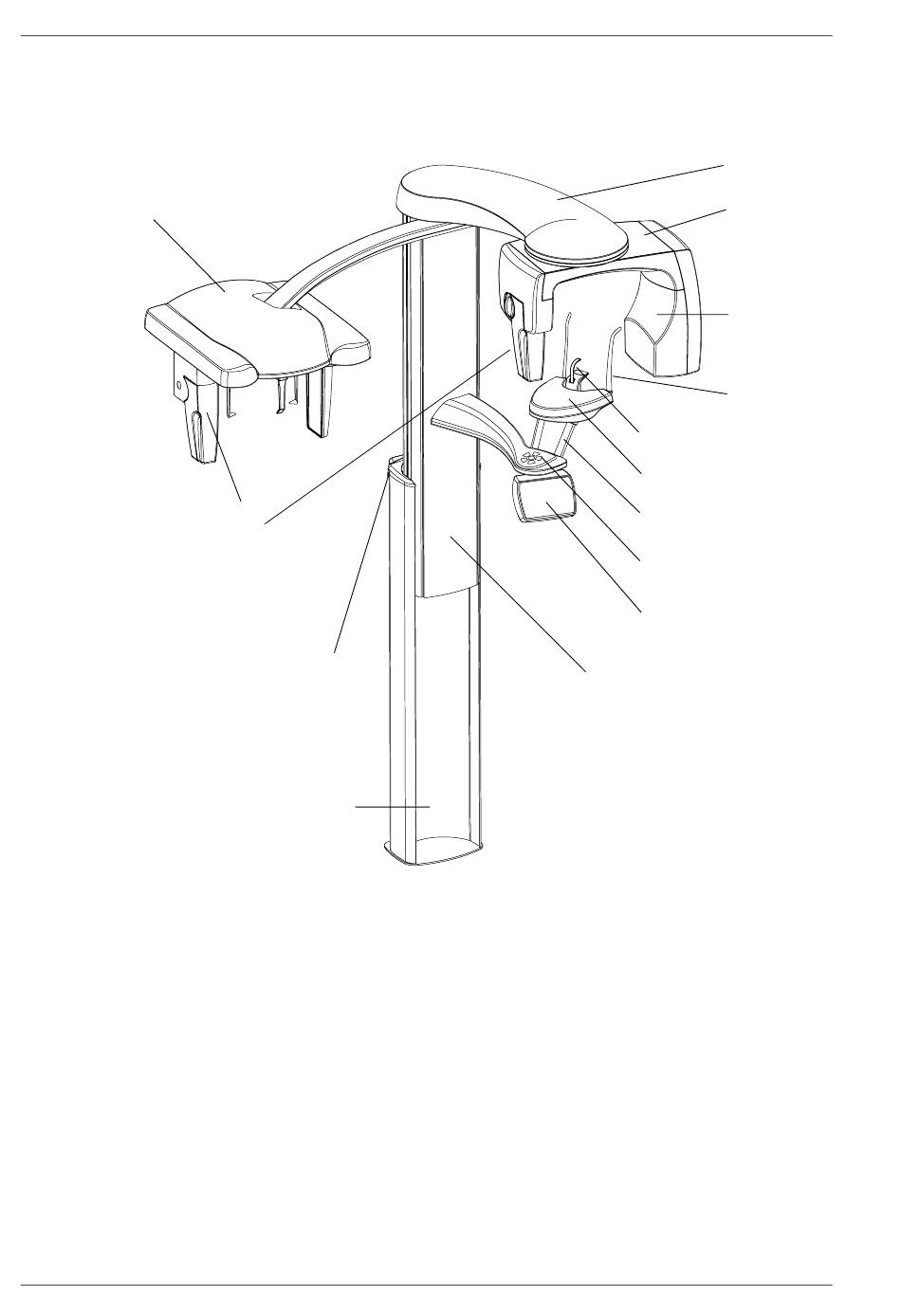

General view of the X-ray unit
Cephalostat (optional)
Sensor head
(one movable or
two fixed sensor heads)
6 ProMax X-ray unit with Dimax3
On/off switch
(on underside
of column top)
Stationary column
NOTE
Telescopic column
ProMax utilizes the new SCARA (Selectively
Compliant Articulated Robot Arm) technology for
arm movements. SCARA3 robot arm units have
three joints. SCARA2 robot arm units have two
joints.
Upper arm
C-arm
Tube head
assembly
Temple
supports
Patient support
Patient support table
Patient handles
Patient positioning
controls
Control panel
