Installation

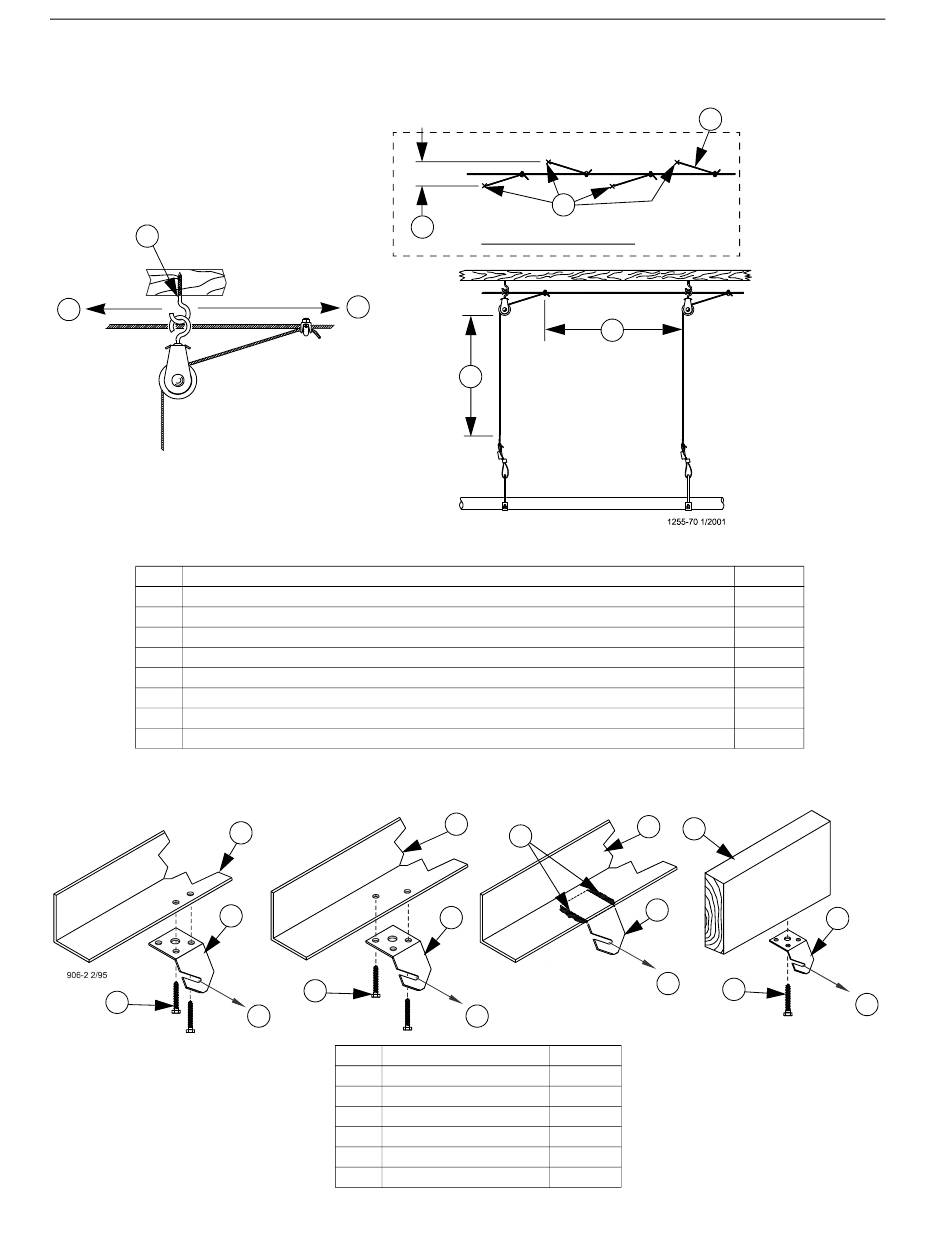

Screw Hook Installation

If distance raised (3) is greater than (2) then stagger Screw hooks (4) as shown.
5
7
Item
1 3" [7.6 cm] Offset
2 Distance of Cable Travel (Recommended 8' [2.4m] on center). Do Not exceed 10' [3m].
3 Distance Feeder is to be raised
4 Screw Hook (Stagger as shown if (3) is greater than (2)
5 Screw in Screw Hook full length of threads.
6 3/32 [2mm] Drop Cable
7 Screw Hook Opening facing opposite direction of travel.
8 Winch End (Direction of Travel).

Ceiling Hook Installation

1
4
16
8
Figure 12.Screw Hook Installation
2
4
5
Item
1 Ceiling Hook
2 Steel Truss
3 Wood Truss
4 1/4-20 Lag Screw
5 Cable Travel Direction
6 Weld
Figure 13.Ceiling Hook Installation
4
1
View up to Ceiling
3
Description
2
6
1
5
Description Part No.
28550
--
--
--
--
Konavi® Pullet Feeding System
6
2
Part No.
2041
2
3
1
5
4
1
5
MF2514A
