Auger/End Control Installation

Use extreme caution when working with the auger. The auger is under tension and may spring
causing personal injury. Wear protective clothing, gloves, and safety glasses when working with
the auger.
To avoid kinking the auger, be careful not to drop the rolled auger when handling. Inspect the auger carefully as
it is installed. Small kinks may be straightened. Large kinks must be removed and the auger brazed back together.
1.Cut the leading 18" [450 mm] and last 18" [450 mm] off each roll of auger. Also, cut out any other distorted
auger sections and reconnect the auger as specified in the Auger Brazing section of this manual.
Use extreme caution when pushing the auger into the Feeder Tubes. Keep your hand away form
the end of the Feeder Tube to avoid injury.
2.With the auger coiled about 6 feet [1.8 m] from the end of the boot, uncoil the auger from the outside and feed
the auger through the boot into the tubes.
3.Push the auger into the tube in short strokes.
4.Uncoil and handle the auger carefully to avoid damaging or kinking the auger.
5.If more that one coil is required for each feeder line, the Auger ends will have to be brazed together. Refer to
the Brazing the Auger section in this manual.
6.Install the Anchor Plate to the Power Unit/Gearhead, as shown in Figure 25.
MF2514A
BE CAREFUL WHEN
WORKING WITH THE
AUGER!
1
3
Anchor Bracket

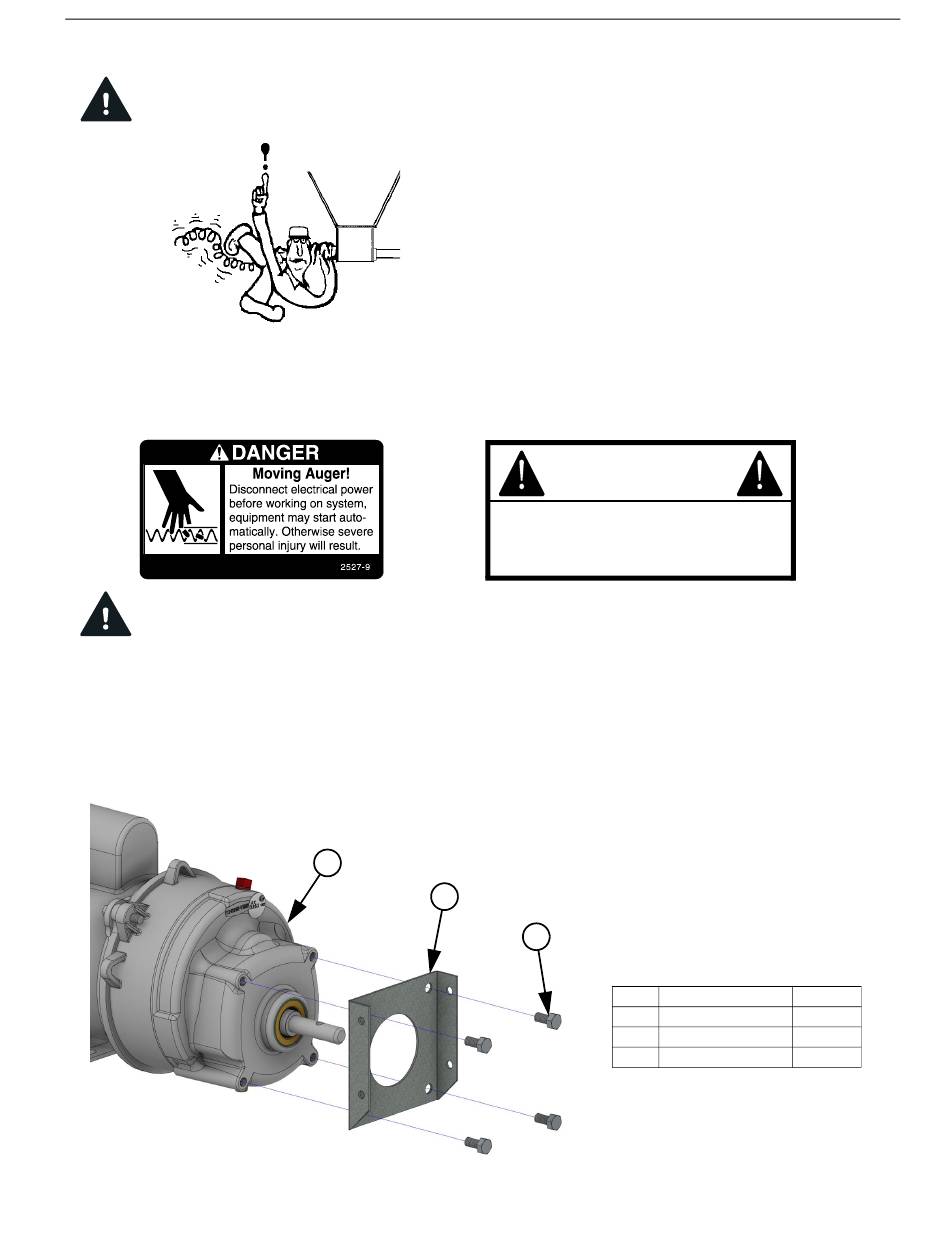

Figure 25.Assemble the Anchor Plate to the Power Unit/Gearhead
CAUTION
KEEP HANDS AWAY FROM PINCH
POINTS WHEN INSTALLING
AUGER.
2
Item
1 Power Unit
2 5/16-18 x .63 Bolt
3 Anchor Plate
Description Part No.
--
1412-1
4188
27
