Suspending the Feeder Line

Adjustment Leveler Installation
1.Install Adjustment Levelers (Item 1) at each Adjustable Hanger. Install the S Hooks (Item 2) in the proper hole of the Hanger as shown on the previous
page.
2.See Figure 21. for proper cable routing around the Adjustment Leveler. The maximum distance from the Leveler to the S Hook is 6" [152mm].
3.Lift the Feeder line to a comfortable working height and check that the Seems in the Feeder Tube are indexed properly. There should be no big gaps
from one Tube to the next (See Figure). It should be a smooth transition from one end of the system to the other.
4.Tighten down all of the Tube connectors at this time. Do not crush the tubes by over-tightening the clamps.
Use the large hole
for 1/8" [3 mm]
Drop Cable.
Use the small hole
for
3/32" [2 mm] Drop
1
After tightening the
Tube Clamps on the
Feeder Tubes, trim off
the excess Cable (see
text).
1
2
1
If indexed correctly there
should be no big gaps between
Item Description Part No.
1 Adjustment Leveler
2 12 Ga. S Hook

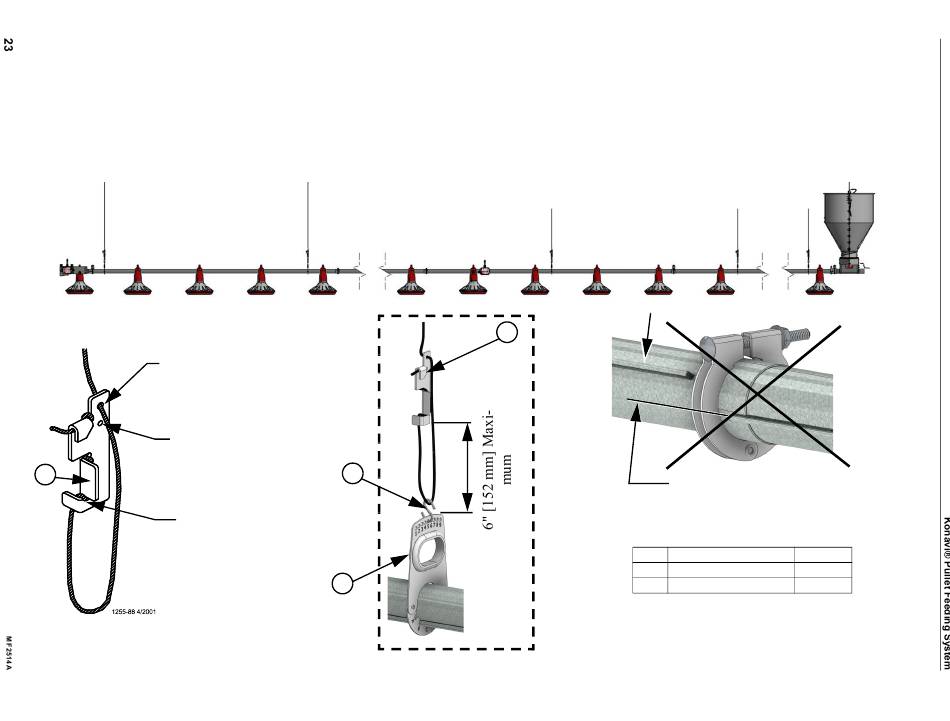

Figure 21.Adjustment Leveler Installation
14337
