Systems Up To 350' [107 M] - Chore-Time Konavi Pullet Feeding System Installation And Operator's Manual

Systems up to 350' [107 m]

Detail "A"
2
1
1' [30cm]
2
Detail "A"
Detail "B"
3
5
Wood Framed House: Requires Support Spanning 3 Trusses
Steel Framed House: Requires Support Spanning 2 Trusses
3
Detail "B"

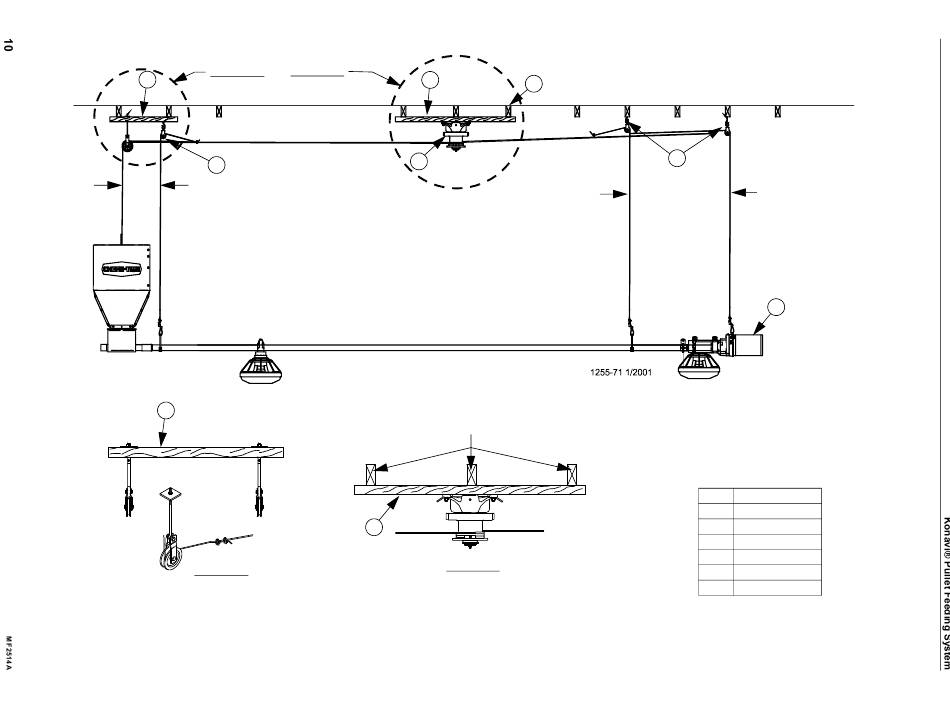

Figure 3. Suspension for systems up to 350' [107 m]
4
1
3' [1m]
Item
6
Description
1 Swivel Pulley
2 Hopper Support
3 Winch Support
4 Roof Truss
5 Winch
6 Power Unit
