Assembling and Suspending the Feeder Tubes

1.The Feeder Tubes and Feeders may be laid out end to end in approximately the final location of the line. The belled end of each Tube should be toward
the Hopper end. (See Figure 19.)
2.Connect the individual feeder tubes together by inserting the straight end of one tube as far as possible into the belled end of the next tube. The last
Feeder Tube before the End Control Pan (Item 2) or Mid Line Control pan (Item 1) needs to be a Control Tube.
3.Use a marker to number the Feeder Tubes, beginning at the Hopper.
4.The first Feeder Tube at the hopper end of the feeder line would be 1, the second Feeder Tube would be 2, etc. Mark each Feeder Tube between the
Hopper and the Control Unit.
5.Install a Tube Clamp Assembly (Item 5) or Clamp and Anti-Roost Bracket (Item 8) at each joint as shown, but DO NOT tighten yet.
Important: Do not tighten down Tube Clamps at this time. They will be tightened down when the Tubes are indexed!
6.Systems require an Anti-Roost Bracket at every f i ft h joint.
7.Continue down the feeder line until each tube joint has a standard Tube Clamp or Clamp/Anti-Roost Bracket.
2 4
Item
1 KONAVI® Proximity Sensor Mid Line Control
2 KONAVI® Proximity Sensor End Control
3 10', 4 Hole Feeder Tube
4 10', 4 Hole Control Feeder Tube

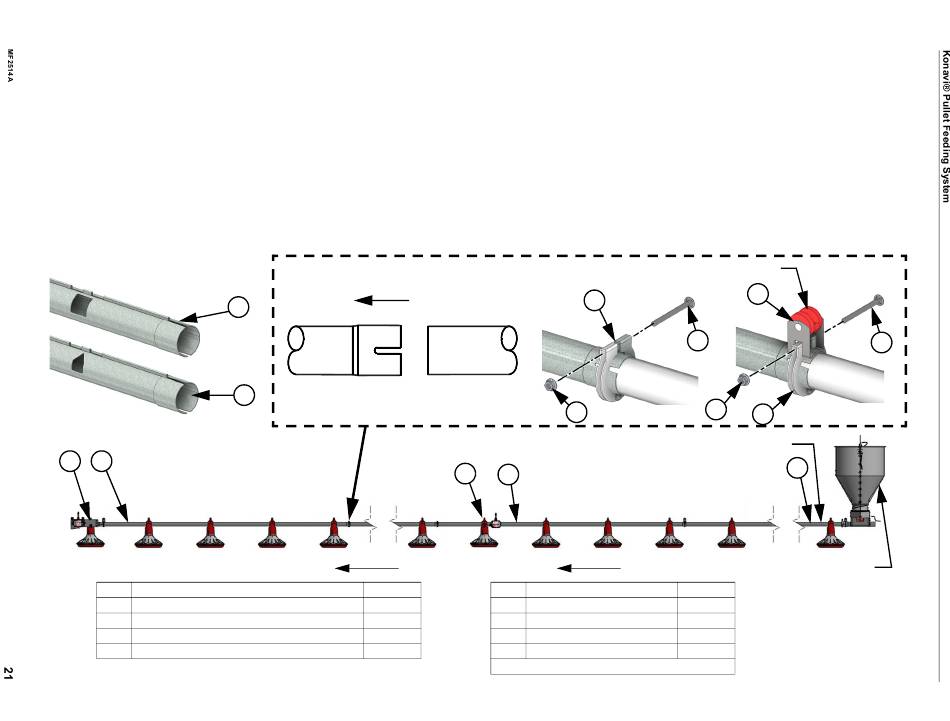

Figure 19. Hanger Installation
4
3 Belled end Toward Hopper
Description Part No.
57453
57425
6854-4
43006-4
Anti-Roost Bracket at every fifth joint.
Feed Flow
1255-123b 09/22
7
1
4
Direction of Feed Flow
Item Description
5* Tube Clamp Assembly
6* 1/4-20 x 2.5 Carriage Bolt
7* 1/4-20 Flange Nut
8 Anti-Roost Bracket
*Included in 24063-X Tube Clamp Kit
5
5
6
7
5
Feeder Tube #1
Part No.
24062
7550-3
46460
24060
6
3
Feed Hopper
