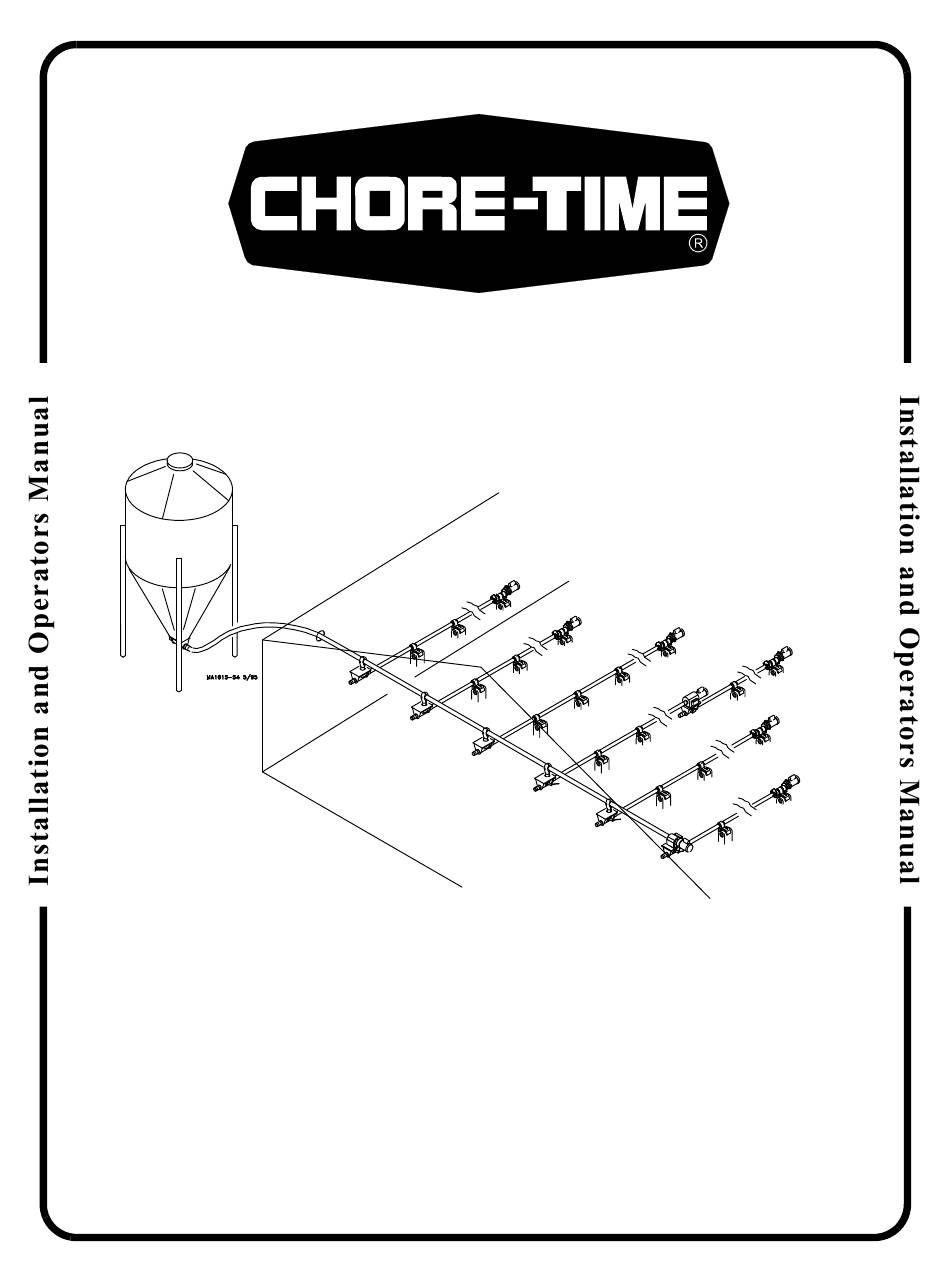

Flag System Drop Feeding
Installation and Operators
Instruction Manual
Contact your nearby Chore-Time distributor or representative for additional parts and information
CTB, Inc.
PO Box 2000
Milford, Indiana 46542-2000 USA
Phone (574) 658-4101 Fax (877) 730-8825
Email: choretime@choretime.com
Internet: www.choretime.com
May 2020
MA1015G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 75 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Chore-Time 75

Summary of Contents for Chore-Time 75

  • Page 1 Flag System Drop Feeding Installation and Operators Instruction Manual Contact your nearby Chore-Time distributor or representative for additional parts and information CTB, Inc. PO Box 2000 Milford, Indiana 46542-2000 USA Phone (574) 658-4101 Fax (877) 730-8825 Email: choretime@choretime.com Internet: www.choretime.com...

  • Page 2: Chore-Time Limited Warranty

    Warranty period (“Extended Warranty Period”) with respect to certain Product parts (“Component Part”) as set forth in the table below. If such a defect is determined by Chore-Time to exist within the applicable period, Chore-Time will, at its option, (a) repair the Product or Component Part free of charge, F.O.B. the factory of manufacture or (b) replace the Product or Component Part free of charge, F.O.B.

  • Page 3: Table Of Contents

    Chore-Time Limited Warranty........

  • Page 4: Safety And General Information

    Safety and General Information Flag System Drop Feeding Safety and General Information Caution, Warning and Danger Decals have been placed on the equipment to warn of potentially dangerous situations. Care should be taken to keep this information intact and easy to read at all times. Replace missing or damaged safety decals immediately.

  • Page 5: General Information

    General Information General Information The CHORE-TIME Flag Drop Feeding System is designed to convey livestock feed types. Using this equipment for any other purpose or in a way not within the operating recommendations specified in this manual will void the warranty and may cause personal injury and/or death.

  • Page 6: Introduction

    High Capacity Model 75 Flag lines can be up to 245’ [74.7 m] long using 1 HP, 1-Phase or 3 Phase Motors. High Capacity Model 75 Plus Flag lines can be up to 330’ [100.6 m] long using 1.5 HP, 1 or 3 Phase Motors.

  • Page 7: Standard Flag Lines Fill System Power Unit Selection Guide (In Feet)

    3259-103 3259-104 3259-105 ---- ---- ---- 3259-103 3259-104 3259-105 208-230/460 V, 60Hz, Three Phase Power Units Model 75 Plus Fill System 425 RPM No. of Standard Flag Lines Up to 75’ 76’ to 150’ 151 to 300’ 3259-120 3259-118 3259-140...

  • Page 8: Standard Flag Lines Fill System Power Unit Selection Guide (In Meters)

    Standard Flag Lines Fill System Power Unit Selection Guide (in meters) 230 V, 60Hz, Single Phase Power Units Model 75 Fill System Model 75 Plus Fill System Model 90 Fill System 348 RPM 425 RPM 425 RPM 348 RPM 425 RPM No.

  • Page 9: Installation

    Make sure the outlet end of the boot is directed toward the feeder line. Item Description Adapter Plate Transfer Plate Proximity Boot Switch Fill System Control (Model 75, 75 Plus, or 90) Outlet End of Boot Flag Line Figure 2.Fill System Control Unit/Terminal Boot Installation MA1015G...
  • Page 10 The bottom of the Outlet Assembly should pass through the hole in the Transfer Plate. Note: The Transfer Plate hole is sized for a Model 75 Outlet Drop. Enlarge the hole by removing the knock-out for Model 90 Outlet Drops.

  • Page 11: Wiring The System

    Flag System Drop Feeding Wiring the System 7.For Flag lines over the maximum length, a Transfer Boot (w/switch), Adapter Plate, and Control Unit are required. Install as shown in Figure 5. near the center of the line. Item Description Control Unit Transfer Boot Adapter Plate Proximity Boot Switch...

  • Page 12: Standard Flag System Layout Diagram

    Wiring the System Flag System Drop Feeding Standard Flag System Layout Diagram Figure 6.Standard Flag System Layout Standard Alternate #1 Flag System Layout Diagram Figure 7.Twin Boot Flag System Layout (Alternate #1) MA1015G...

  • Page 13: Standard Alternate #2 Flag System Layout Diagram

    Flag System Drop Feeding Wiring the System Standard Alternate #2 Flag System Layout Diagram Figure 8.Return Flag System Layout (Alternate #2) Standard Alternate #3 Flag System Layout Diagram Figure 9.Circulating Flag System Layout (Alternate #3) MA1015G...

  • Page 14: High Capacity Flag System Layout #1 Diagram

    Flag System Drop Feeding High Capacity Flag System Layout #1 Diagram Model 75, 75 Plus Model 75, 75 Plus, or Model 90 Figure 10.High Capacity Flag System Layout #1 High Capacity Flag System Layout #2 Diagram Model 75, 75 Plus Figure 11.High Capacity Flag System Layout #2...

  • Page 15: High Capacity Flag System Layout #3 Diagram

    Flag System Drop Feeding Wiring the System High Capacity Flag System Layout #3 Diagram Model 75, 75 Plus Model 90 Figure 12.High Capacity Flag System Layout #3 High Capacity Flag System Layout #4 Diagram Model 75, 75 Plus, or 90 Model 75, 75 Plus Figure 13.High Capacity Flag System Layout #4...

  • Page 16: 1-Phase Standard And Alternate #1 Flag System Wiring

    Wiring the System Flag System Drop Feeding 1-Phase Standard and Alternate #1 Flag System Wiring MA1015G...

  • Page 17: 3-Phase Standard And Alternate #1 Flag Systems Wiring

    Flag System Drop Feeding Wiring the System 3-Phase Standard and Alternate #1 Flag Systems Wiring MA1015G...

  • Page 18: 1-Phase Standard Flag Systems Wiring

    1-Phase Standard Flag Systems Wiring Electrical Specifications: Voltage: 230 V. Hz.:50/60 Phase: Single...

  • Page 19: 3-Phase Standard Flag Systems Wiring

    3-Phase Standard Flag Systems Wiring Electrical Specifications: Voltage:3 X 220 V. 3 X 380 V. + N 3 X 415 V. + N Hz.:60 Phase:Three...

  • Page 20: 1-Phase Alternate #1 Flag Systems Wiring

    1-Phase Alternate #1 Flag Systems Wiring Electrical Specifications: Voltage:230 V. Hz.:50/60 Si l...

  • Page 21: 3-Phase Alternate #1 Flag Systems Wiring

    3-Phase Alternate #1 Flag Systems Wiring Electrical Specifications: Voltage:3 X 220 V. 3 X 380 V. + N 3 X 415 V. + N Hz.:60 Phase:Three...

  • Page 22: 1-Phase Alternate #2, And #3 Flag Systems Wiring

    Wiring the System Flag System Drop Feeding 1-Phase Alternate #2, and #3 Flag Systems Wiring MA1015G...

  • Page 23: 3-Phase Alternate #2, And #3 Flag Systems Wiring

    Flag System Drop Feeding Wiring the System 3-Phase Alternate #2, and #3 Flag Systems Wiring MA1015G...

  • Page 24: 1-Phase Alternate #2 Flag Systems Wiring

    Wiring the System Flag System Drop Feeding 1-Phase Alternate #2 Flag Systems Wiring 1 Phase Alternate #3 Flag Systems Wiring MA1015G...

  • Page 25: 1-Phase Alternate #2 & #3 Flag Systems Wiring

    1-Phase Alternate #2 & #3 Flag Systems Wiring E l e c t r i c a l S p e c i f i c a t i o ns : V o l t a g e : 2 3 0 V . H z .

  • Page 26: 3-Phase Alternate #2 & #3 Flag Systems Wiring

    3-Phase Alternate #2 & #3 Flag Systems Wiring E l e c t r i c a l S p e c i f i c a t i o n s : V o l t a g e : 3 X 2 2 0 V 3 X 3 8 0 V + N 3 X 4 1 5 + N H z .

  • Page 27: Parts Listing

    Flag System Drop Feeding Parts Listing Parts Listing Standard Single (35727/35727SS) and Twin (35942/35942SS) Transfer Boot Ass’y 35727 35727SS 35942 35942SS Single Transfer Stainless Steel Double Transfer Stainless Steel Boot Assembly Single Transfer Boot Assembly Double Transfer (Standard) Boot Assembly (Standard) Boot Assembly (Standard)

  • Page 28: High Capacity Single Boot Assembly 56552/Ss, 56553/Ss, 52677/Ss, 52678/Ss

    High Capacity Single Boot Assembly 56552/SS, 56553/SS, 52677/SS, 52678/SS...
  • Page 29 2527-91 2527-91 2527-91 2527-91 2527-91 2527-91 2527-91 Tube Clamp Assembly 4141-1 4141-1 4141-1 4141-1 4141-1 4141-1 4141-1 4141-1 Mod. 75 Tube Clamp Assembly 6515-1 6515-1 6515-1 6515-1 6515-1 6515-1 6515-1 6515-1 Adapter Plate 45970 45970SS 45970 45970SS 45970 45970SS 45970...

  • Page 30: 3259-X (348 Rpm) Fill System Power Units For Flag Systems

    Parts Listing Flag System Drop Feeding 3259-X (348 RPM) Fill System Power Units for Flag Systems 3259-49 3259-51 3259-52 3259-77 3259-78 3259-79 3259-88 Item Description Part No. Part No. Part No. Part No. Part No. Part No. Part No. Motor 6857 5050 5051...

  • Page 31: 3259-X Flag Line Power Units

    Flag System Drop Feeding Parts Listing 3259-X Flag Line Power Units 3259-34 3259-39 3259-98 3259-100 3259-78 3259-79 3259-80 Item Description Part No. Part No. Part No. Part No. Part No. Part No. Part No. Motor 4229 5703 5977 28031 5051 6857 8782 90 Degree Connector...

  • Page 32: Proximity Boot Switch Assemblies

    Parts Listing Flag System Drop Feeding Proximity Boot Switch Assemblies Double (34779/34779SS) & Single (34780/34780SS) 34779 34779SS 34780 34780SS Flag & Twin Boot Stainless Steel Single Boot Stainless Steel Prox. Switch Flag & Twin Boot Prox. Switch Single Boot Prox. Switch Prox.

  • Page 33: Delay Relay Kit (Part No. 30953)

    Flag System Drop Feeding Parts Listing Delay Relay Kit (Part No. 30953) Description Part No. Switch Box Cover 6776 Decal 2529-400 Gasket 6777 Switch Box 33814 1/2" Liquid Tight Connector 23779 ON Delay Timer 24411 Relay 24335 Box Plate 24321 Miscellaneous Components Description Part No.
  • Page 34 Revisions to make CE compliant. 34835 Added Model 75 Plus models 14,15 Added High Capacity Diagrams For additional parts and information, contact your nearest Chore-Time distributor or representative. Find your nearest distributor at: www.choretime.com/contacts CTB, Inc. PO Box 2000 Milford, Indiana 46542-2000 USA Phone (574) 658-4101 Fax (877) 730-8825 Email: choretime@choretime.com...
