Screw Hook Installation - Chore-Time H2 Installation And Operator's Manual

Suspension System
4. Route the cable through the Winch Drum
Relief located near the bottom of the
drum. Tighten the set screw to anchor the
cable to the drum. See Figure 15.
5. Turn the winch drum one full revolution.
Guide the cable against the flange at the bottom of the
winch drum. The cable must not wrap over itself on the
drum, but should be wrapped as close as possible to
each previous wrap. See Figure 16.

Screw Hook Installation

The recommended distance between the
drops for the Model H2 is 8' [2.4 m] on
center. Do not exceed 10' [3 m] spacing on
drop lines.
If the distance raised is greater than the
distance between the drop spacings, offset
the hooks 3" [7.6 cm] to each side of the
line to prevent the cable clamps from
catching the pulleys. See Figure 17.
Screw the hook into the truss
the full length of the threads
to prevent bending.
The openings of the screw
hooks must be pointed away
from the direction of travel
when the Power Winch raises
the feeder line.
See Figure 18.
16

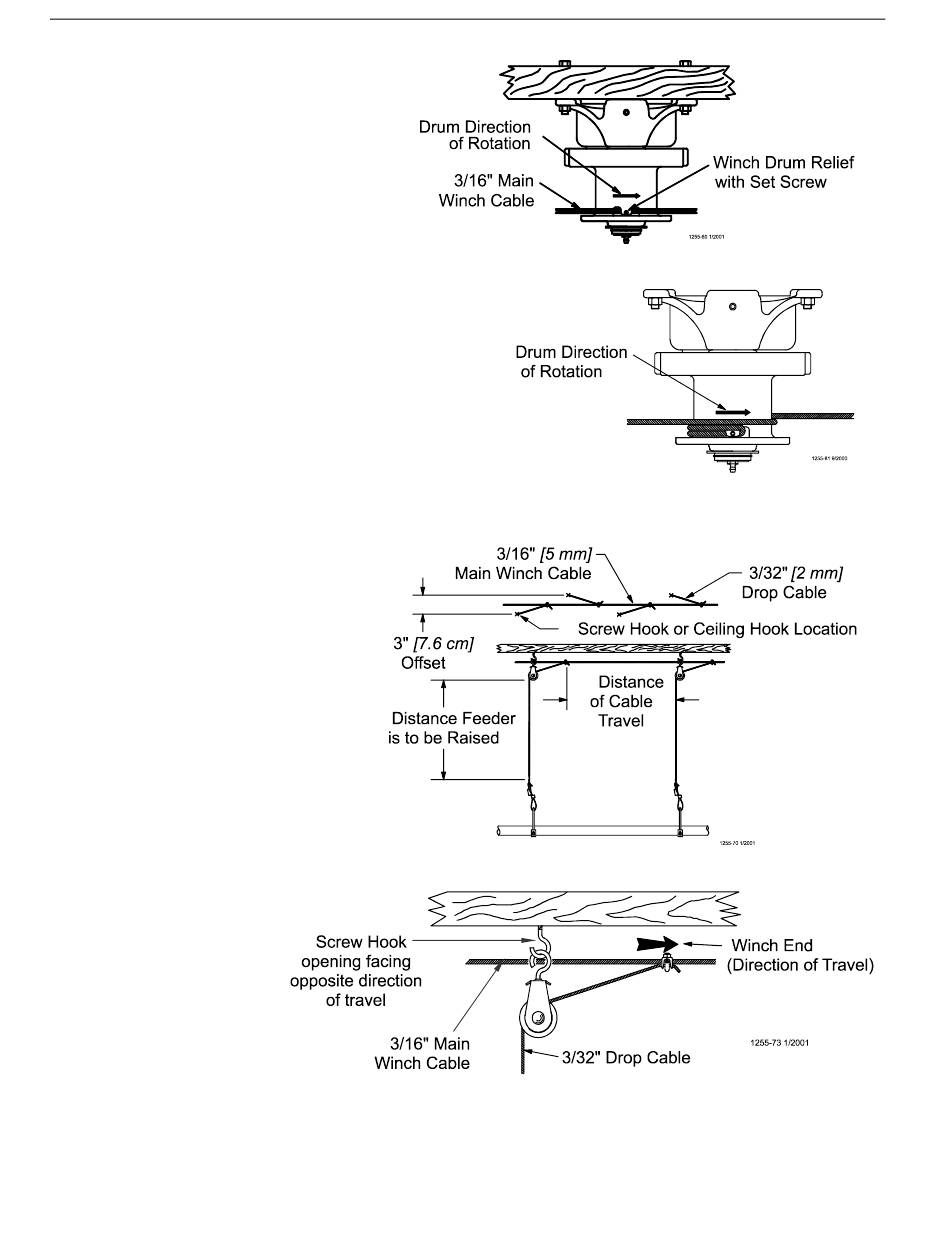

Figure 15. Attaching the Cable to the Power Winch
Figure 16. Power Winch Drum Rotation
Figure 17. Drop Line Off Set Detail
Figure 18. Screw Hook Installation
