Attaching Winch Support to Trusses

1
5
Wood Truss Installation
1
5
Steel Truss Installation
10
1
4 8
3
6
1
3
9
8
2
7
6
7
2

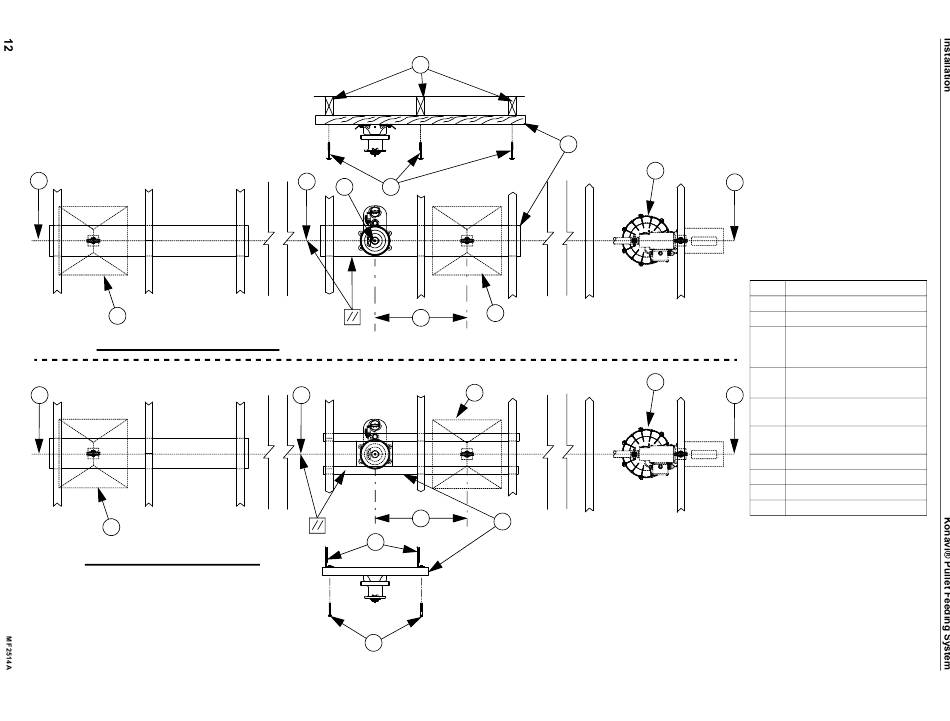

Figure 5. Mounting the Power Lift Winch and Support to Trusses
1
Item Description
1 Feeder Line
2 Winch & Winch Support
3 Winch Centered on Feeder
line unless Feed Hopper is
centered.
4 Winch Centered directly
over Feeder Line
1
5 Hopper (End of Feed line
option)
6 Hopper (Center of Feed line
option)
7 End Control
8 Lag Bolts
9 Steel Truss
10 Wood Truss
