Konavi® Pullet Feeding System

Attaching the Mid-Line Control

Mid-Line Control with Proximity Sensor Control
The Mid-Line Control is installed on a Control Tube. The Control Tube is a special Feed Tube that has
enlarged holes required for the Mid-Line Control.
1.Attach the Mid-Line Control (Item 1) to the Control Tube (Item 2) as shown in Figure 34.
2.Attach the Switch Box Assembly to the Control Tube with Tube Clamps (Item 3).
3.Install a toggle switch, out of reach of the birds, to disconnect power to the Mid-Line Control. This allows
the Mid-Line Control to serve as standard feeder when not used as a Control Feeder.
4.Wire the Mid-Line Control as shown in the wiring diagram section of this manual. Insert a Locking Pin
(Item 5) into the slot in the Cone Cap as shown.
5.Install two Adjustable Hose Clamps (Item 6) to hold the Locking Pin in place and eliminate rotation of the
Feeder on the Feeder Tube.
Outlet Hole in
Feeder Tube
2
MF2514A
Slide the Two Piece Top Cap into
the Cone until it Locks in place.
1
3

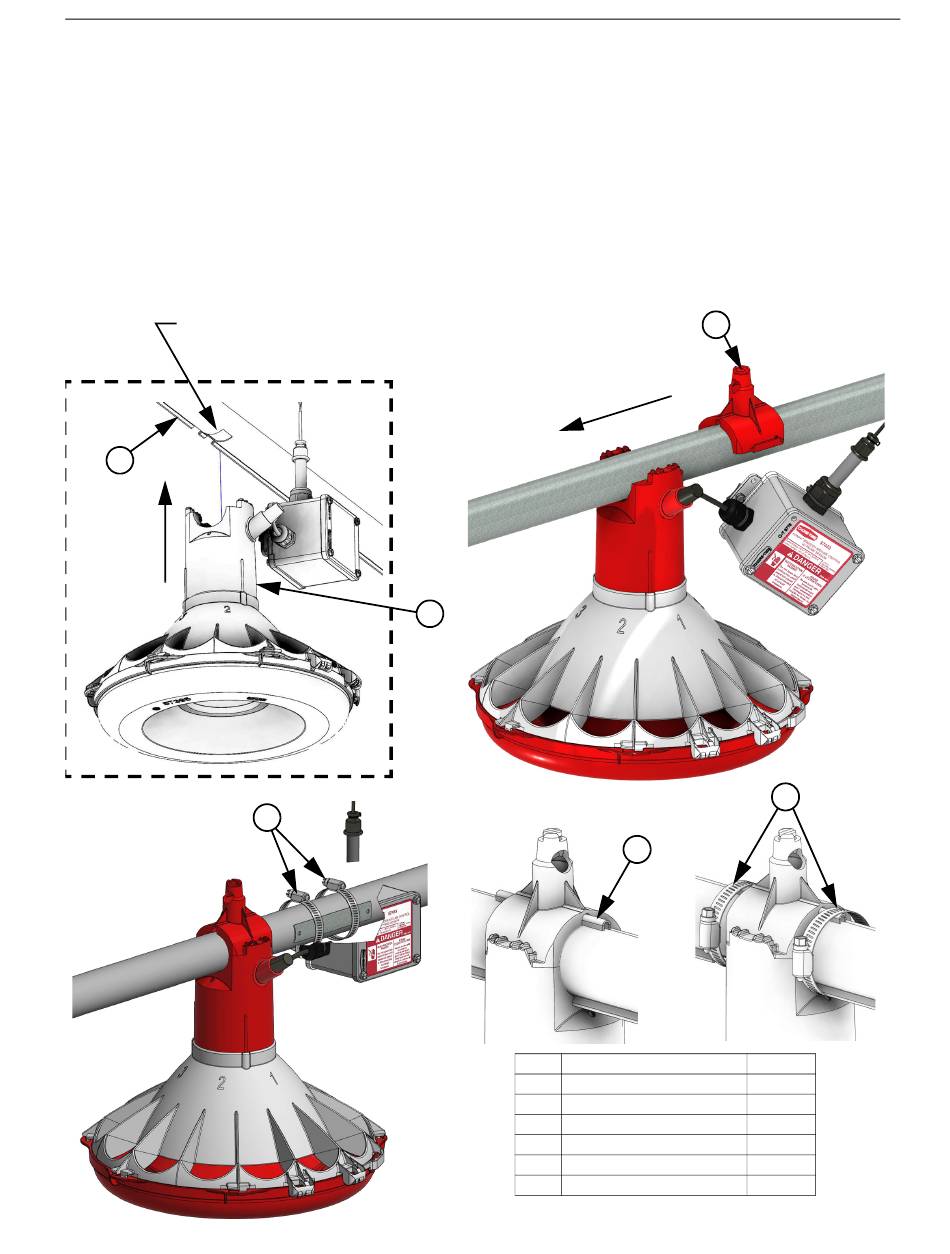

Figure 34. Installing the Mid-Line Control with Proximity Sensor
5
Item Description
1 Midline Control
2 Control Tube
3 Tube Clamp
4 Konavi Two Piece Top Cap
5 Locking Pin
6 Adjustable Hose Clamp
4
6
Part No.
57453
varies
3527
55820
14484
3527
33
