Installing Adjustable Hangers

•Refer to the appropriate Indexing Chart on page 25 of this manual to program the Feeder Tubes.
•Find the heading for the number of tubes in your feeder line in the horizontal line at the top of the Indexing Chart. The correct hanger adjustments for
each Feeder Tube are shown in the column under the heading.
1.Install the Hangers (Item 1) on the Feeder Tubes at the 8' [2.4 m] spacings determined by the suspension drop lines. Program each Feeder Tube in the
feeder line according to the Indexing Chart. Some Feeder Tubes may have (2) Hangers. Both Hangers should be indexed to the same setting.
2.Installing the Adjustment Levelers is shown on page 23.
Setting Example: If the appropriate setting for the #1 Feeder Tube is B5, the "S" Hook should be installed in the #5 hole in the Hanger. The Feeder
Tube Seam should be in the "B" position. (See Figure 20.)
Item Description
1 Adjustable Hanger
2 12 Ga. S Hook

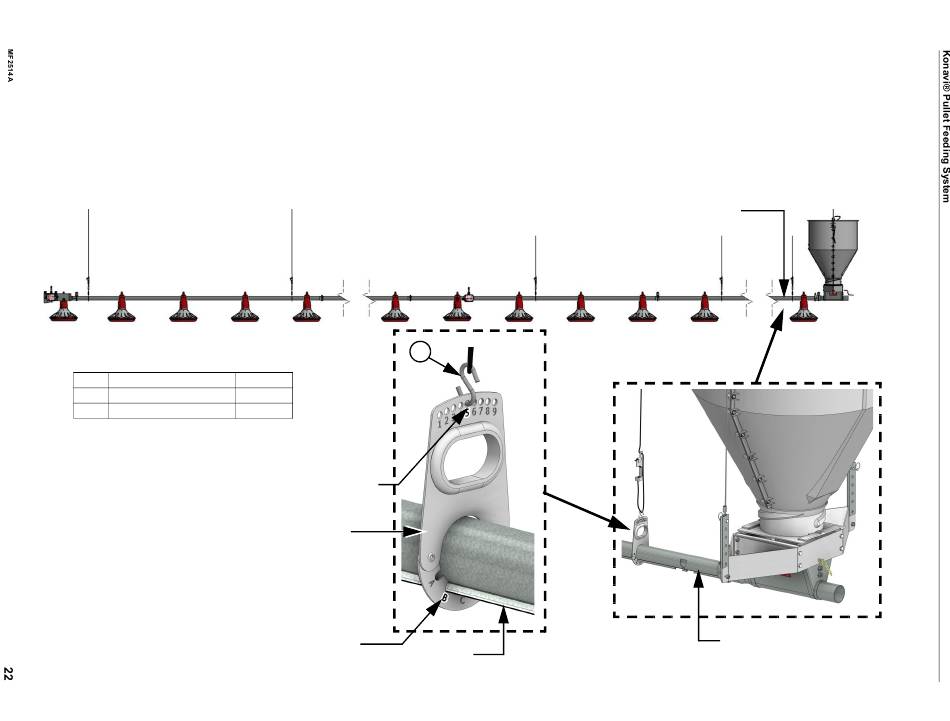

Figure 20. Hanger Installation
Seam in the "B" position
Part No.
7604
723
Hook in the #5 position.
Numbers and Letters
towards the Hopper.
2
Seam
Feeder Tube
Feeder Tube
