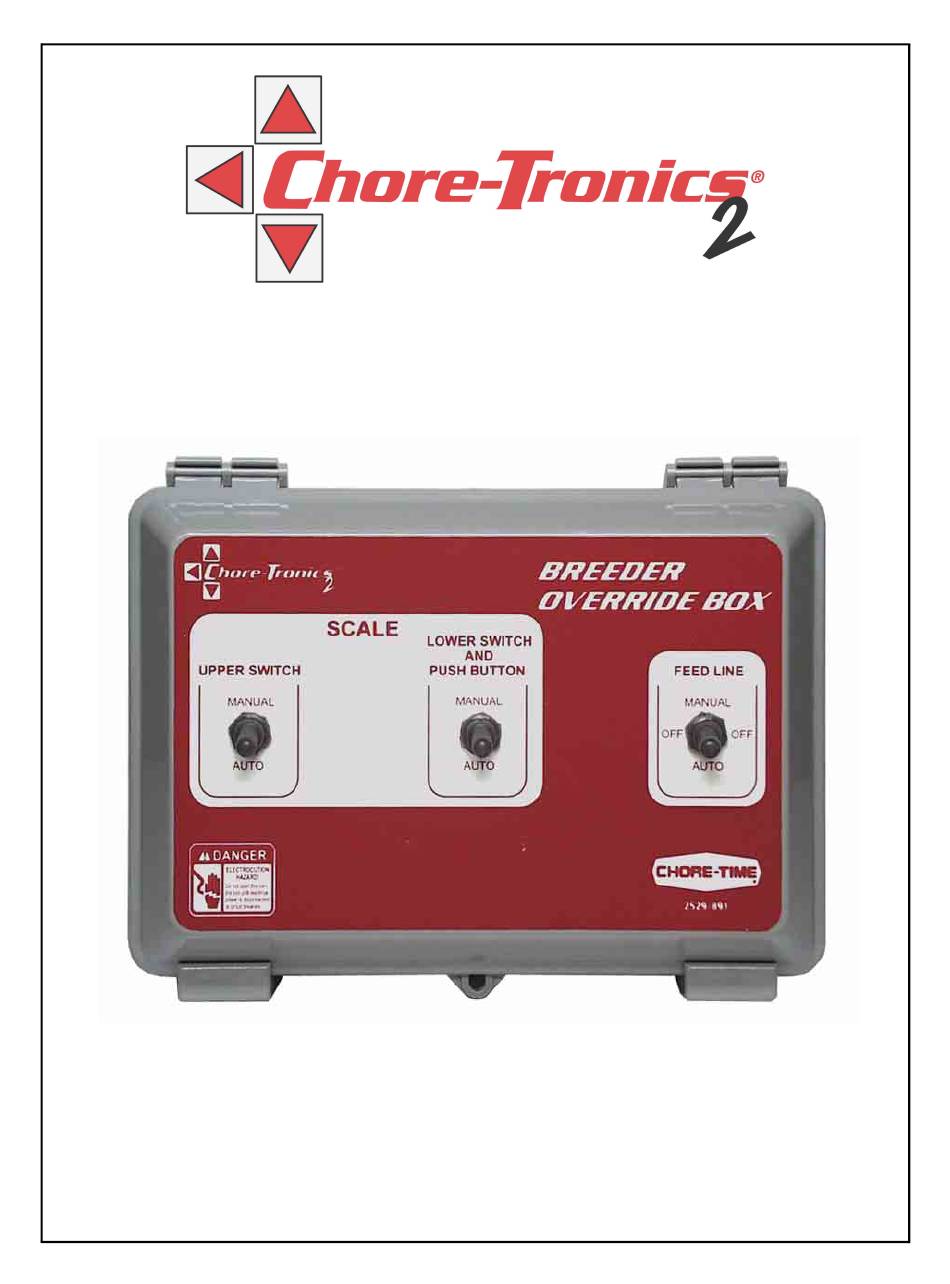

- Page 1 Chore-Tronics 2 Breeder Edition ® Override Box November 2007 MT2309B...
-
Page 2: Conditions And Limitations
CTB Inc. Warranty Override Box CTB Inc. Warranty CTB Inc. warrants each new product manufactured by it to be free from defects in material or workmanship for one year from and after the date of initial installation by or for the original purchaser. If such a defect is found by the Manufacturer to exist within the one-year period, the Manufacturer will, at its option, (a) repair or replace such product free of charge, F.O.B. -
Page 3: Introduction To The Control
Under normal operating conditions, all toggle switches should be in the automatic position. This will allow the Chore-Tronics 2 Breeder Edition control to operate the Weigh Fill, Feeder Fill, and Feed Line outputs. Please refer to the Chore-Tronics 2 Breeder Control manual for normal operation details. -
Page 4: Manual Operation
Control Operation Override Box Manual Operation Lower Switch and Push Button (Filling the weigh Bin) ® To temporarily override the Chore-Tronics control and fill the weigh bin manually, first place the Lower Switch and Push Button toggle switch (Item 1, Figure 3) into the manual position. Set the slide bar (Item 2) on the scale to the desired amount of feed and press the push button on the Weigh Scale Beam (Item 3) to begin filling the weigh bin. - Page 5 Override Box Control Operation Upper Switch (Delivering Feed to House) ® To temporarily override the Chore-Tronics Control to deliver feed into the house, first set the slide bar (Item 1, Figure 4) to the amount of feed desired to be delivered to the house. Then move the Upper Switch Toggle switch (Item 2) to the manual position.
- Page 6 Wiring Wiring to Chore-Tronics Control and Weighmatic Scale ® The three digital input terminals must be connected to the Chore-Tronics 2 Controls using twisted pair wire (part no. 42208). Failure to do so could result in improper operation of the feeding system. EXTERNAL WIRING TERMINAL 1 EXTERNAL WIRING TERMINAL 2 L1 Supply...
- Page 7 Wiring to Weigh Bin, Fill System, and Feed Line Motors HOPPER FILL MOTOR WEIGH BIN FILL MOTOR 1 HP, 230 V 3/4 HP, 230V, 1 PHASE 1 PHASE 25697 SAFETY SWITCH JUMPER TO BE 1 2 3 4 5 6 (SL) INSTALLED IN FIELD...
- Page 8 Breeder Override Box Internal Wiring LID SWITCHES EXTERNAL WIRING TERMINAL 2 To Control Feeder Line Relay From Control Feeder Line Relay Upper Switch Upper Switch C-Tronics D1 Wiring Lower Switch Lower Switch Push Button Push Button Figure 7. Internal Wiring...
-
Page 9: Part Numbers
Override Box Part Numbers Part Numbers Item Description Part No. Toggle Switch 6014 Control Box Latch 30862 Control Box Latch Pivot 30863 SPDT 220 VAC Relay 34702 Neoprene Seal 34767 12 Pole Terminal Strip 34925 DPDT Toggle Switch 50699 Breeder Overide Box Lid 51064 Control Box 30860-3... -
Page 10: Revisions To This Manual
Part Numbers Override Box Note: The original, authoritative version of this manual is the [English] version produced by CTB, Inc. or any of its subsidiaries or divisions, (hereafter collectively referred to as "CTB"). Subsequent changes to any manual made by any third party have not been reviewed nor authenticated by CTB.
