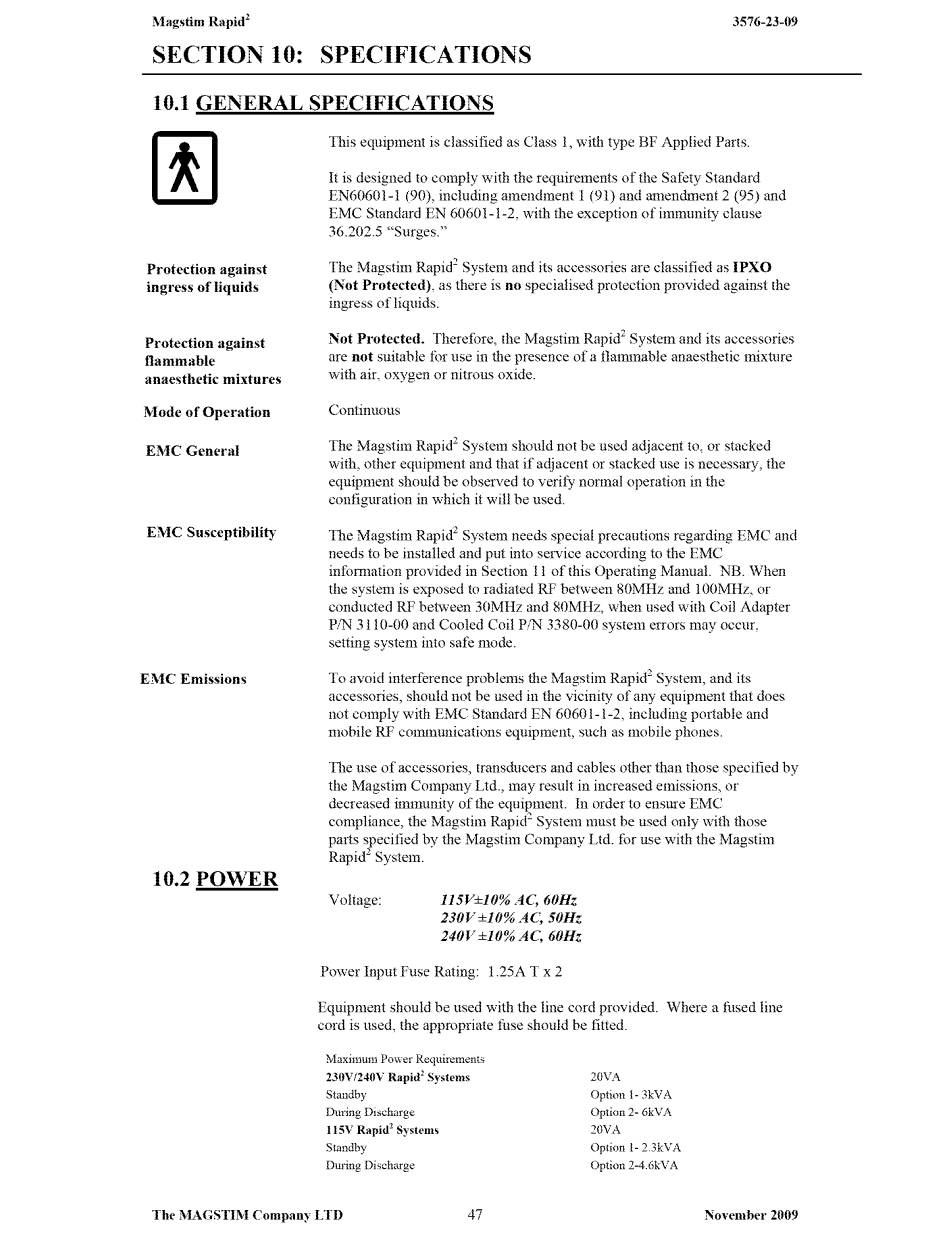

SECTION 10: SPECIFICATIONS
IO.I GENERAL SPECIFICATIONS
P1·otection against
ing1·ess of liquids
Prntection against
flammable
anaesthetic mixtures
Mode of Operation
KMC Genernl
EMC Susceptibility
EMC Emissions
10.2 POWER
This equipment is classified as Class 1, with type BF Applied Parts.
It is designed to comply with the requirements of the Safety Standard
EN60601-l (90), including amendment 1 (91) and ,m1endment 2 (95) and
EMC Standard EN 60601-1-2, with the exception of immunity clause
36.202.5 "Surges."
The Magstim Rapid=' System and its accessories are classified as IPXO
(Not Protected), as there is no specialised protection provided against the
ingress of liquids.
Not Protected. Therefore, the Magstim Rapid 2 System and its accessories
are not suitable fix use in the presence of a f1mmnable anaesthetic mixture
with air. oxygen or nitrous oxide.
Continuous
The Magstim Rapid 2 System should not be used adjacent to, or stacked
with, other equipment and that if adjacent or stacked use is necessary, the
equipment should be observed to verify nonnal operation in the
configuration in which it will be used.
The Magstim Rapid 2 System need5 special precautions regarding EMC and
needs to be installed and put into service according to the EMC
infonnation provided in Section l l of this Operating Manual. NB. When
the system is exposed to radiated RF between 80MHz ,md 100MHz, or
conducted RF between 30MHz and 80MHz, when used with Coil Adapter
P/N 3110-00 and Cooled Coil P/N 3380-00 system errors may occur.
setting system into safe mode.
To avoid interference problems the Magstim Rapid 2 System, and its
accessories, should not be used in the vicinity of any equipment that does
not comply with EMC Standard EN 6060 l- l-2, including portable and
mobile RF communications equipment, such as mobile phones.
The use of accessories, transducers and cables other than those specified by
the Magstim Comp,my Ltd., may result in increased emissions, or
decreased immunity of the equipment. In order to ensure EMC
compliance, the Magstim Rapid 2 System must be used only with those
parts specified by the Magstim Company Ltd. for use with the Magstim
Rapid
2
System.
Voltage: 115V±10% AC, 60Hz
230V±l0%AC~ S0Hz
240V±10%AC, 60Hz
Power Input Fuse Rating: 1.25A T x 2
Equipment should be used with the line cord provided. Where a fused line
cord is used, the appropriate fuse should be fitted.
Maximum Power Requirements
230V/240V Rapid' Systems
Standby
During Discharge
115V Rapid
2
System~
Standby
D111·ing Discharge
20VA
Option 1- 3kVA
Option 2- 6kVA
20VA
Option 1- 2.3kVA
Option 2-4.6kVA
