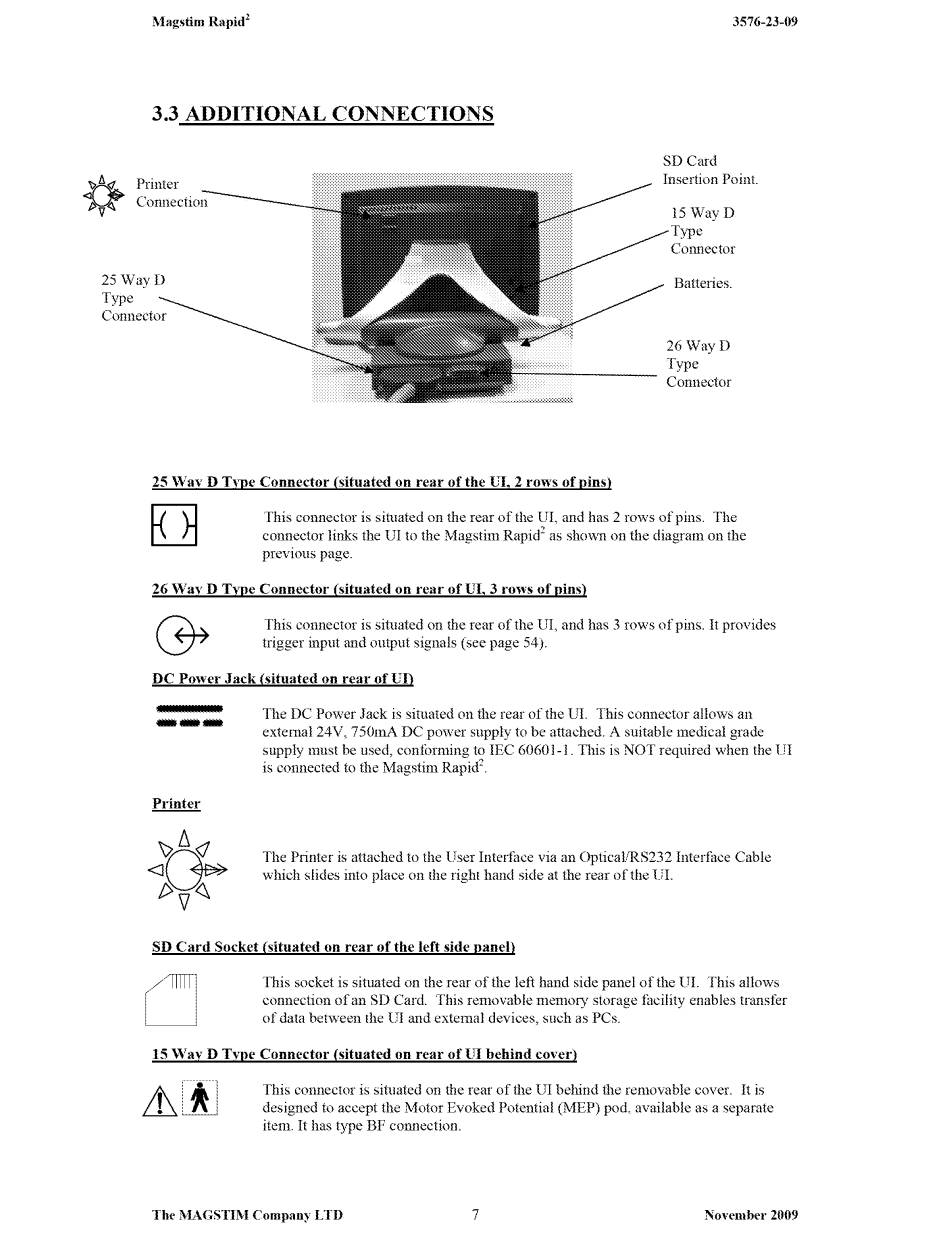

3.3 ADDITIONAL CONNECTIONS
o
Printer
V
SD Card
Insertion Point.
15 WayD
Type
Connector
25 WayD
Type
Connector
Batteries.
26\.VayD
Type
Connector
25 \Vav D Tvpe Connector (situated on rear of the UI, 2 rows of pins)
This connector is situated on the rear of the UI. and has 2 rows of pins. The
connector links the UI to the Magstim Rapid=' as shown on the diagram on the
previous page.
26 Way D Type Connector (situated on 1·ear ofUI, 3 rnws of pins)
This connector is situated on the rear of the UI, and has 3 rows of pins. It provides
trigger input and output signals (see page 54).
DC Power Jack {situated on rear of
un
The DC Power Jack is situated on the rear of the UI. This connector allows an
external 24V. 750mA DC power supply to be attached. A suitable medical grade
supply must be used, conforming to IEC 60601-1. This is NOT required when the UI
is connected to the Magstim Rapid 2 .
The Printer is attached to the User Interface via an Optical/RS232 Interface Cable
which slides into place on the right hand side at the rear of the UI.
SD Card Socket (situated on rear of the left side panel)
0
This socket is situated on the rear of the left hand side panel of the UI. This allows
connection ofan SD Card. This removable memory storage facility enables transfer
of data between the UI and external devices, such as PCs.
15 Wav D Type Connector (situated on rear of UI behind cover)
This connector is situated on the rear of the UI behind the removable cover. It is
designed to accept the Motor Evoked Potential (MEP) pod, available as a separate
item. It has type BF connection.
