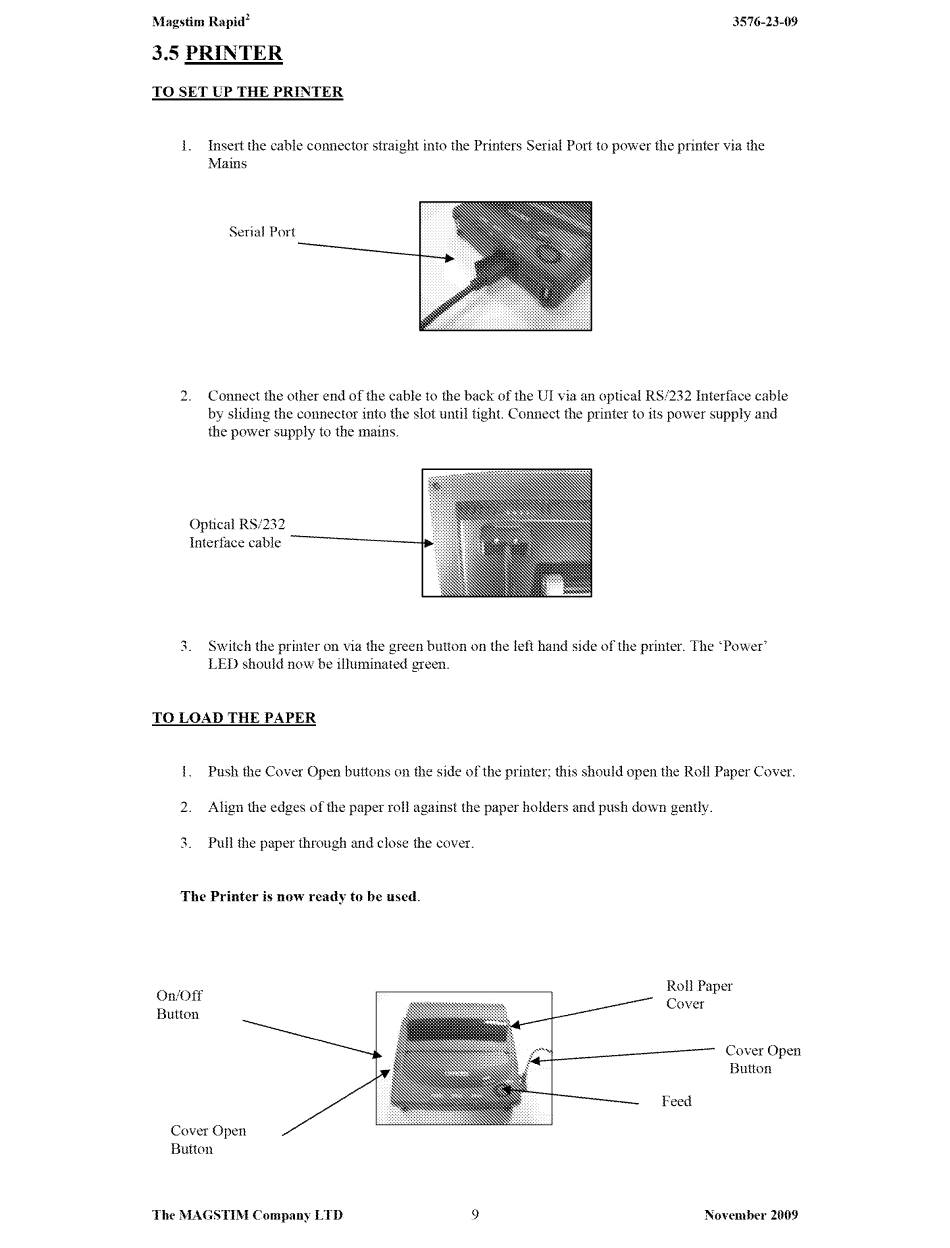

3.5 PRINTER
TO SET UP THE PRINTER
l. Inse1i the cable connector straight into the Printers Serial Port to power the printer via the
Mains
Serial Port
2. Connect the other end of the cable to the back of the UI via an optical RS/232 Interface cable
by sliding the connector into the slot until tight. Connect the printer to its pmver supply and
the power supply to the mains.
Op1ical RS/232
Interface cable - - - - - - - - l ~
3. Svvitch the printer on via the green button on the left hand side of the printer. The 'Power'
LED should now be illuminated green.
TO LOAD THE PAPER
l. Push the Cover Open buttons on the side of the printer; this should open the Roll Paper Cover.
2. Align the edges of the paper roll against the paper holders and push dmvn gently.
3. Pull the paper through and close the cover.
The Printer is now ready to be used.
On/Off
Button
Cover Open
Button
