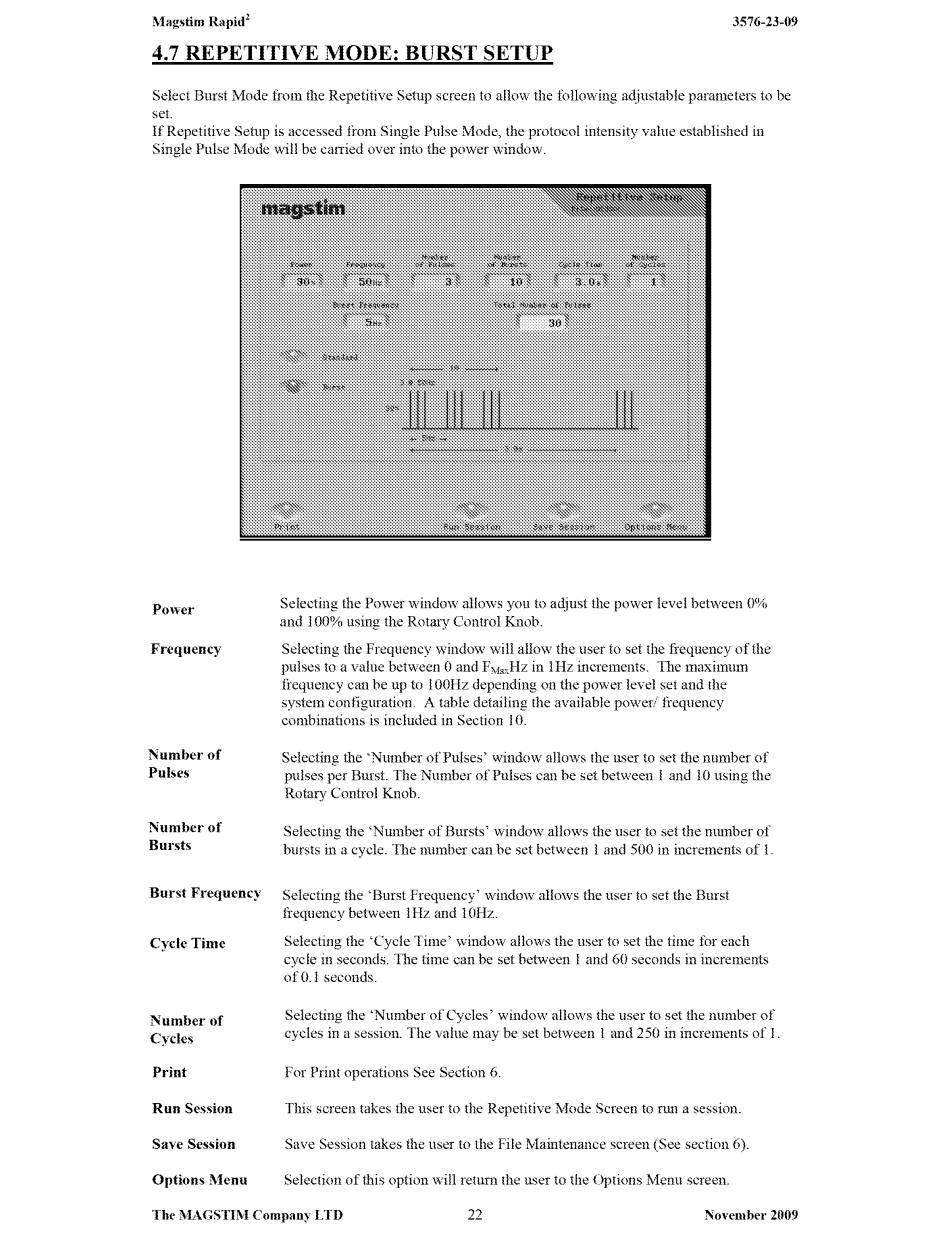

4.7 REPETITIVE MODE: BURST SETUP
Select Burst Mode from the Repetitive Setup screen to allow the follmving adjustable parameters to be
set.
If Repetitive Setup is accessed from Single Pulse Mode, the protocol intensity value established in
Single Pulse Mode will be carried over into the power window.
Power
Frequency
Number of
Pulses
Number of
Bursts
Burst Frequency
Cycle Time
Number of
Cycles
Print
Run Session
Sne Session
Options Menu
Selecting the Power ,vindow allows you to adjust the power level bet\veen 0%
and l 00% using the Rotary Control Knob.
Selecting the Frequency window will allow the user to set the frequency of the
pulses to a value between 0 and F~.
13
"Hz in lHz increments. The maximum
frequency can be up to l 00Hz depending on the power level set and the
system configuration. A table detailing the available power/ frequency
combinations is included in Section 10.
Selecting the 'Number of Pulses' window allows the user to set the number of
pulses per Burst. The Number of Pulses can be set between I and 10 using the
Rotary Control Knob.
Selecting the 'Number of Bursts' window allows the user to set the munber of
bursts in a cycle. The number can be set between 1 and 500 in increments of 1.
Selecting the 'Burst Frequency' ,vindow allows the user to set the Burst
frequency between !Hz and l0Hz.
Selecting the 'Cycle Time' window allows the user to set the time for each
cycle in seconds. The time can be set between l and 60 seconds in increments
of0.l seconds.
Selecting the 'Number of Cycles' window allows the user to set the number of
cycles in a session. The value may be set between 1 and 250 in increments of 1.
For Print operations See Section 6.
This screen takes the user to the Repetitive Mode Screen to nm a session.
Save Session takes the user to the File Maintenance screen (See section 6).
Selection of this option will return the user to the Options Menu screen.
The l\'IAGSTIM Company LTD
22
November 2009
