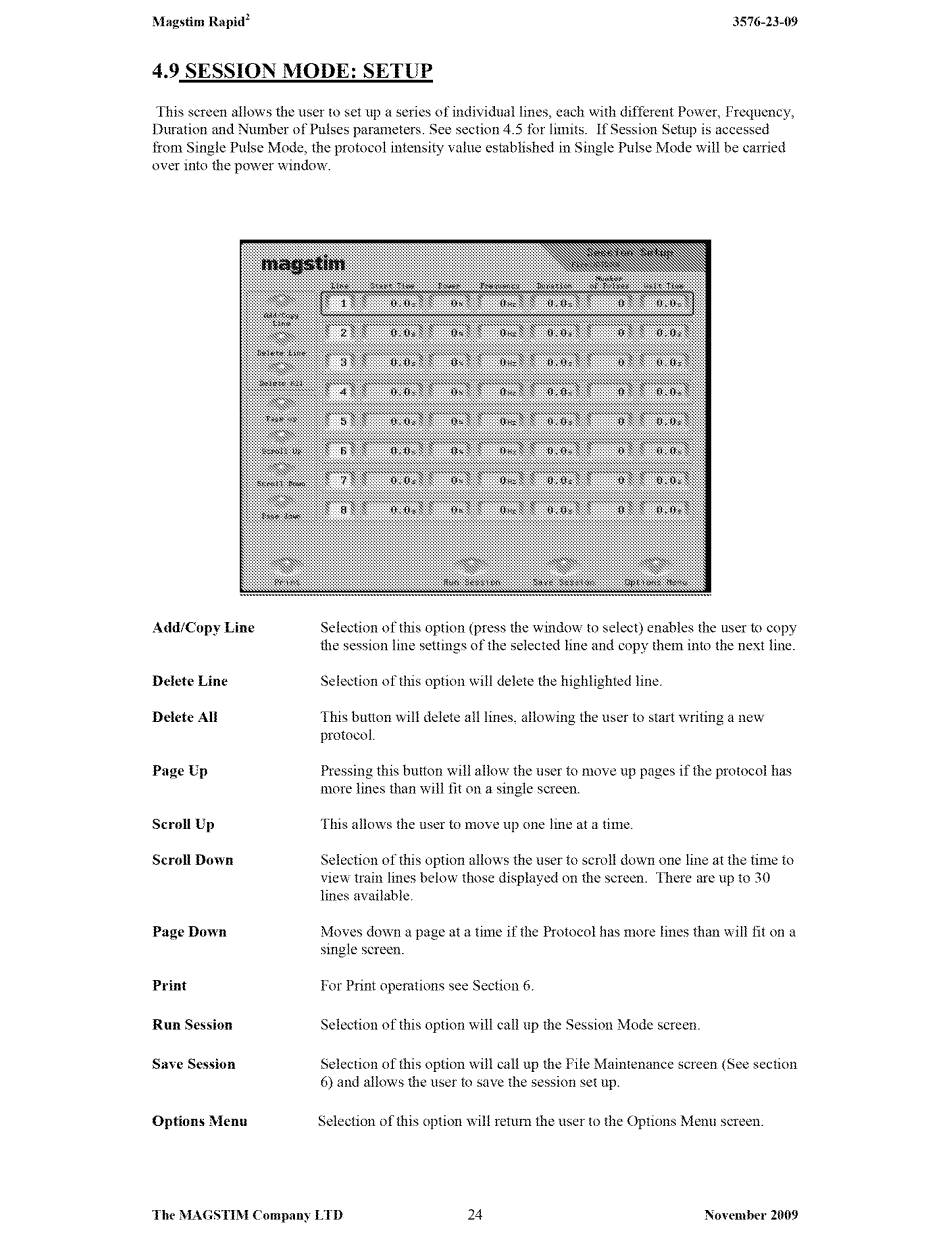

4.9 SESSION l\'IODE: SETUP
This screen allows the user to set up a series of individual lines, each with different Power, Frequency,
Duration and Number of Pnlses parameters. See section 4.5 for limits. If Session Setup is accessed
from Single Pulse Mode, the protocol intensity value established in Single Pulse Mode will be carried
over into the pmver window·.
Add/Copy Line
Delete Line
Delete All
Page Up
Scroll
Up
Scroll Down
Page Down
Print
Run Session
Saye Session
Options Menu
Selection of this option (press the window to select) enables the user to copy
the session line settings of the selected line and copy them into the next line.
Selection of this option will delete the highlighted line.
This button will delete all lines, allowing the user to start writing a new
protocol.
Pressing this button will allow the user to move up pages if the protocol has
more lines than will fit on a single screen.
This allows the user to move up one line at a time.
Selection of this option allows the user to scroll down one line at the time to
view train lines below those displayed on the screen. There are up to 30
lines available.
Moves down a page at a time if the Protocol has more lines than will fit on a
single screen.
For Print operations see Section 6.
Selection of this option will call up the Session Mode screen.
Selection of this option will call up the File Maintenance screen (See section
6) and allows the user to save the session set up.
Selection of this option will return the user to the Options Menu screen.
