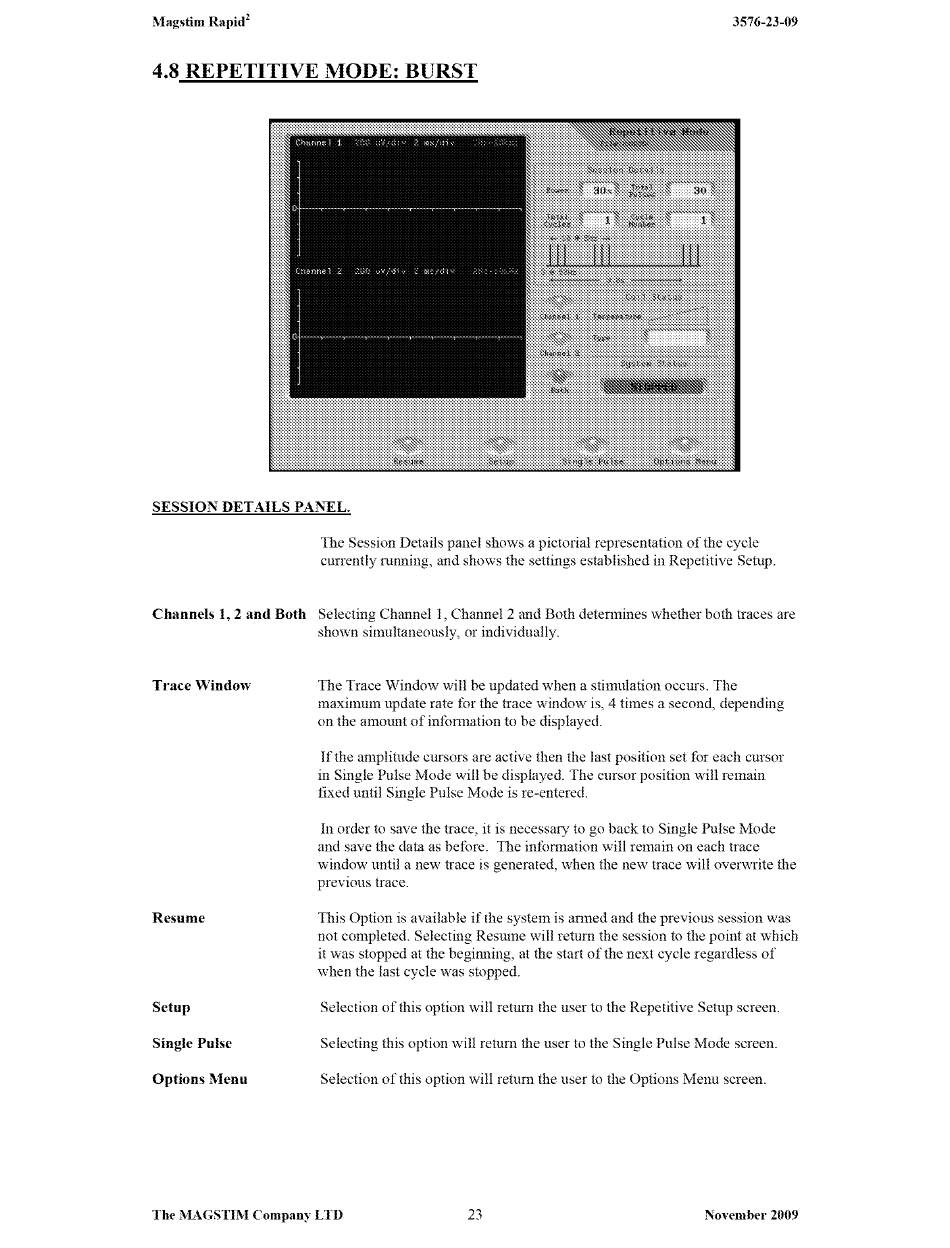

4.8 REPETITIVE MODE: BURST
SESSION DETAILS PAi'<'EL.
Toe Session Details panel shows a pictorial representation of the cycle
currently running, and shows the settings established in Repetitive Setup.
Channels 1, 2 and Both Selecting Channel l, Channel 2 and Both determines whether both traces are
shown simultaneously, or individually.
Trnce Window·
Resume
Setup
Single Pulse
Options Menu
The Trace Window will be updated when a stimulation occurs. The
maximum update rate for the trace window· is, 4 times a second, depending
on the amount of information to be displayed.
If the amplitude cursors are active then the last position set for each cursor
in Single Pulse Mode will be displayed. The cursor position will remain
fixed until Single Pulse Mode is re-entered.
In order to save the trace, it is necessary to go back to Single Pulse Mode
and save the data as before. The infonnation will remain on each trace
window until a new trace is generated, when the new trace will overwrite the
previous trace.
This Option is available if the system is armed and the previous session was
not completed. Selecting Resume will return the session to the point at which
it was stopped at the beginning, at the start of the next cycle regardless of
when the last cycle ,vas stopped.
Selection of this option will return the user to the Repetitive Setup screen.
Selecting this option will return the user to the Single Pulse Mode screen.
Selection of this option will return the user to the Options Menu screen.
The MAGSTIM Company LTD
23
November 2009
