Magstim Rapid
2
3576-23-09

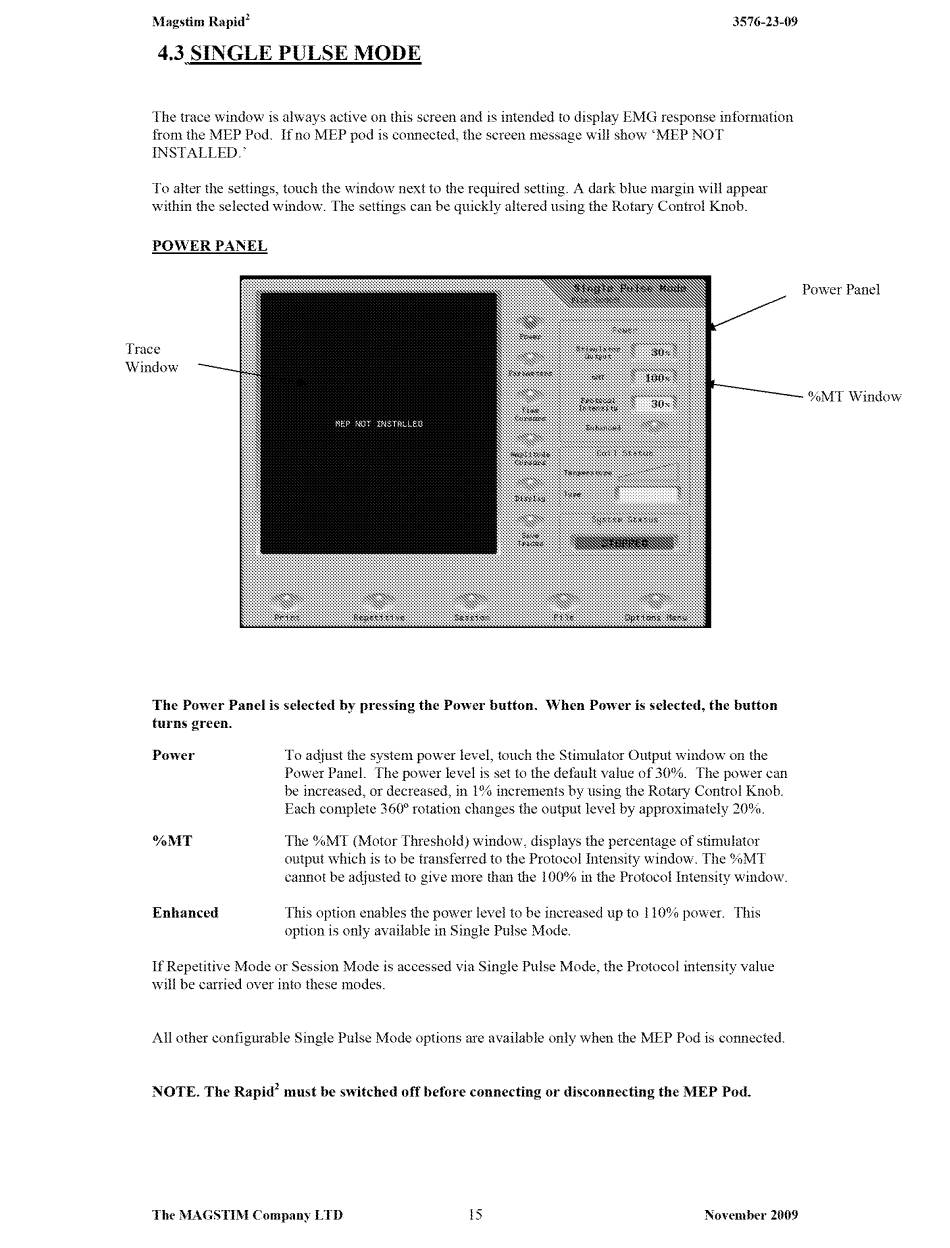

4.3,SINGLE PULSE MODE
The trace window is always active on this screen and is intended to display ElVIG response information
from the MEP Pod. If no MEP pod is connected, the screen message will show 'MEP NOT
INSTALLED.'
To alter the settings, touch the window next to the required setting. A dark blue margin ~Nill appear
within the selected window. The settings can be quickly altered using the Rotary Control Knob.
POWER PANEL
Trace
Window
L.---1,_1,1,_1,1,_1,1,_1,1,_1,1,_1,1,_1,1,_1,1,_1,1,_1,1,_1,1,_1,1,_1,1,_1,1,_1,_1,_l, _ _
l,,~,_l,~~,_~,~,,1_l_t<~_t,1_1,_,,1,_1,.1,_,l,l,_l,_l,l,l,l,l,l,l_l,l_l,I_I_I_I_I_I_
:::::::::::::::itll: _ _ i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!ill\1i_._i!i::::::::::::::::::::::::::::itl\1Hilililililililililililililililll1i:
·'bl~"~
)?}?i,\MM :,?,/,/,?,:,:§m~~WMd?J?JJ§bWL,?,/,/,/,?,rntrn ?}?J?Wi.WiMMi@(/
The Power Panel is selected by pressing the Power button. \Vhen Power is selected, the button
turns green.
Powe1·
%MT
Enhanced
To adjust the system power level, touch the Stimulator Output window on the
Power Panel. The power level is set to the default value of 30%. The power can
be increased, or decreased, in l
'~t
increments by using the Rotary Control Knob.
Each complete 360° rotation changes the output level by approximately 20%,.
The %MT (Motor Threshold) window, displays the percentage of stimulator
output which is to be transferred to the Protocol Intensity window. The 'YoMT
cannot be adjusted to give more than the l 00% in the Protocol Intensity window.
This option enables the pmver level to be increased up to
110'1/o
power. This
option is only available in Single Pulse Mode.
If Repetitive Mode or Session Mode is accessed via Single Pulse Mode, the Protocol intensity value
will be carried over into these modes.
All other configurable Single Pulse Mode options are available only when the ivIBP Pod is connected.
NOTE. The Rapid
2
must be switched off before connecting or disconnecting the MEP Pod.
The l\'IAGSTIM Company LTD
15
November 2009
Power Panel
%MT Window
