Magstim Rapid
2
3576-23-09

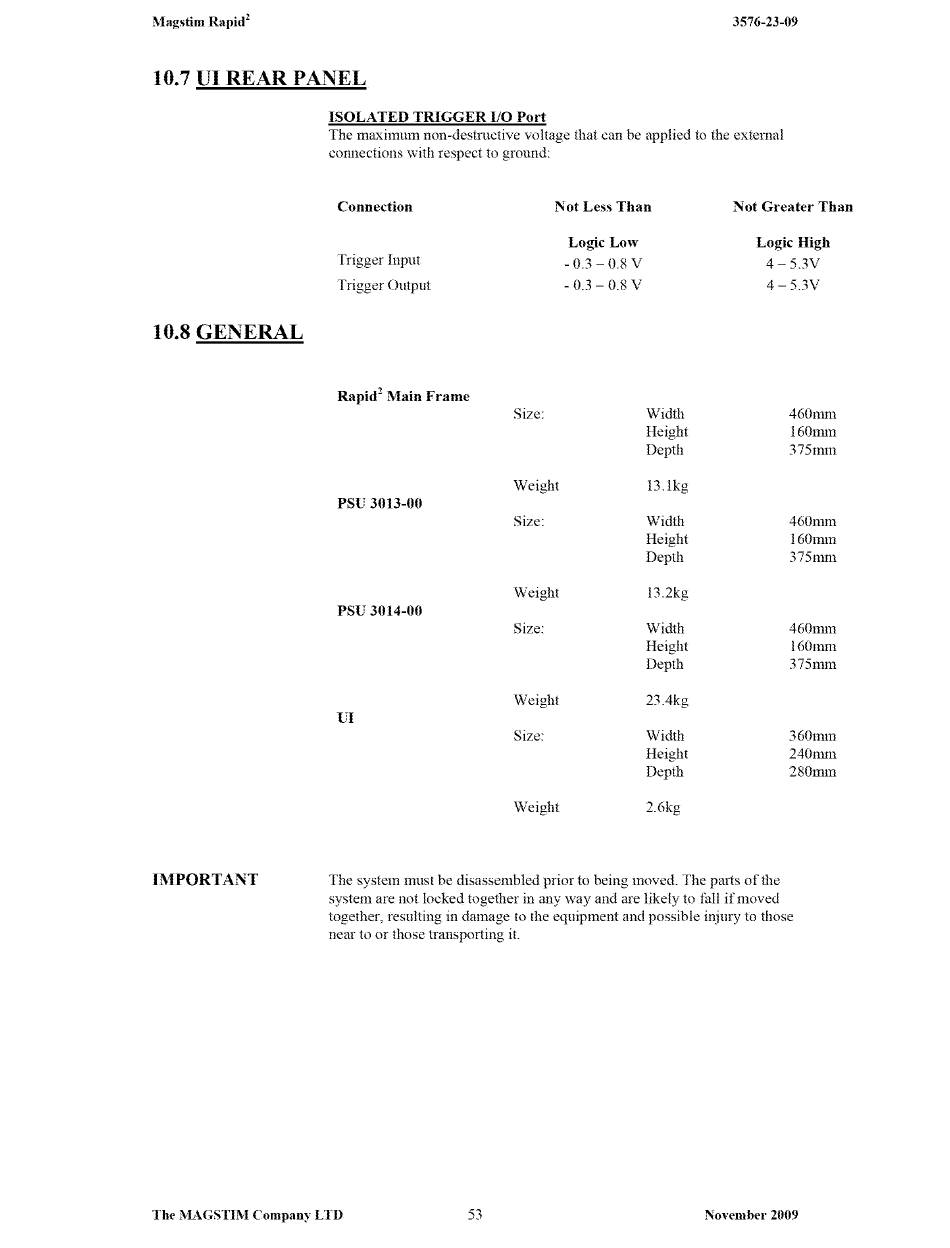

10. 7 UI REAR PANEL
10.8 GENERAL
IMPORTANT
ISOLATED TRIGGER 1/0 Pm·t
The ma,ximum non-destructive voltage that can be applied to the external
connections with respect to ground:
Connection
Trigger Input
Trigger Output
Rapid
2
Main Frame
PSU 3013-00
PSU 3014-00
UI
Not Less Than
Size:
Weight
Size:
Weight
Size:
Weight
Size:
Weight
Logic Low
-0.3-0.8 V
-0.3-0.8 V
Width
Height
Depth
13.1kg
Width
Height
Depth
13.2kg
Width
Height
Depth
23.4kg
Width
Height
Depth
2.6kg
Not G1·eater Than
Logic High
4-5.3V
4-5 . .W
460mm
1601mn
375mm
460mm
1601mn
375mm
4601mn
160mm
375mm
3601mn
240mm
280mm
The system must be disassembled prior to being moved. The paiis of the
system are not locked together in any way and are likely to fall if moved
together, resulting in damage to the equipment and possible injury to those
near to or those transporting it.
The MAGSTIM Company LTD
53
November 2009
