3 Components and Power Supply
Note
Only the LAN 1 connector is available during booting and in BIOS mode.
3.6.2 WAN Combo connection
The RS300 has one combo Gigabit Ethernet interface for WAN connection. This port has 2 connectors - SFP for an
optical link and RJ45 for a 10/100/1000 Base-T link - but they cannot work simultaneously.
Please pay careful attention to the labeling to avoid mistaking these ports for other types of ports:

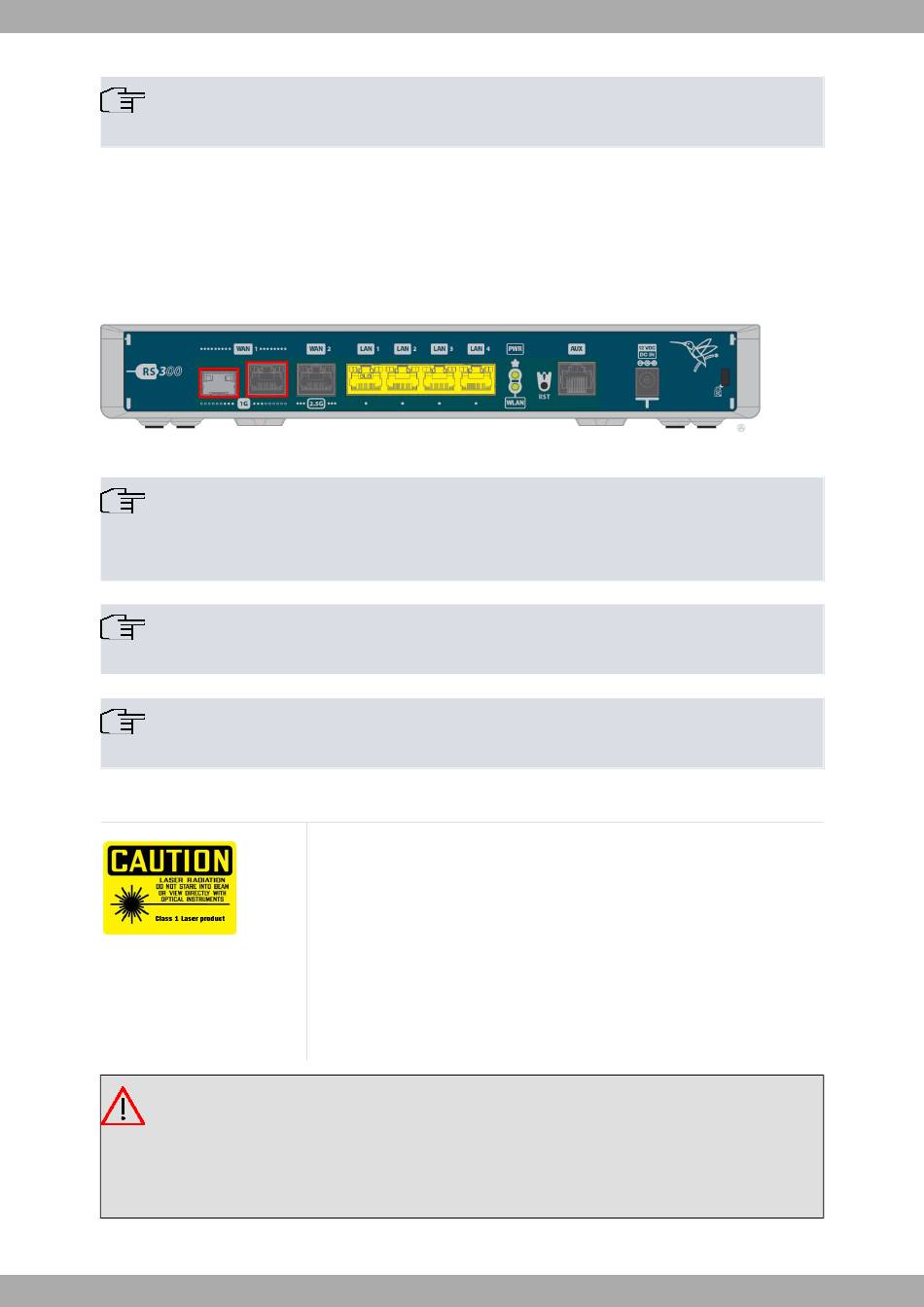

WAN Combo connector
Fig. 16:
Note
This WAN interface has a UTP/Fiber Media Auto Detection feature.
Only one of the connectors must be used for proper operation.
Note
WAN-1 connector does not work during booting and in BIOS mode.
Note
An appropriate software license may be required for the combo WAN (WAN-1) interface to work.
3.6.2.1 Laser information
Warning
Laser Radiation. Do not use optical instruments directly or without proper protection. CLASS 1 LASER
PRODUCT.
The SFP modules to be installed in the card socket should be class 1 devices that comply with the IEC/
EN 60825-1:2007 standard.
12
Choose SFP transceivers that meet the following regulations
• Class 1
• IEC/EN60825-1:2007 2nd Edition or a later one, European standard
• FCC 21 CFR Chapter 1, Subchapter J (in accordance with FDA and CDRH re-
quirements)
• Application of CE marking in accordance with the 2014/30/EU EMC Directive
and the 2014/35/EU Low Voltage Directive
• UL and/or CSA registered component for North America
• 47 CFR Part 15, Class A
Teldat S.A.
RS300 Series
