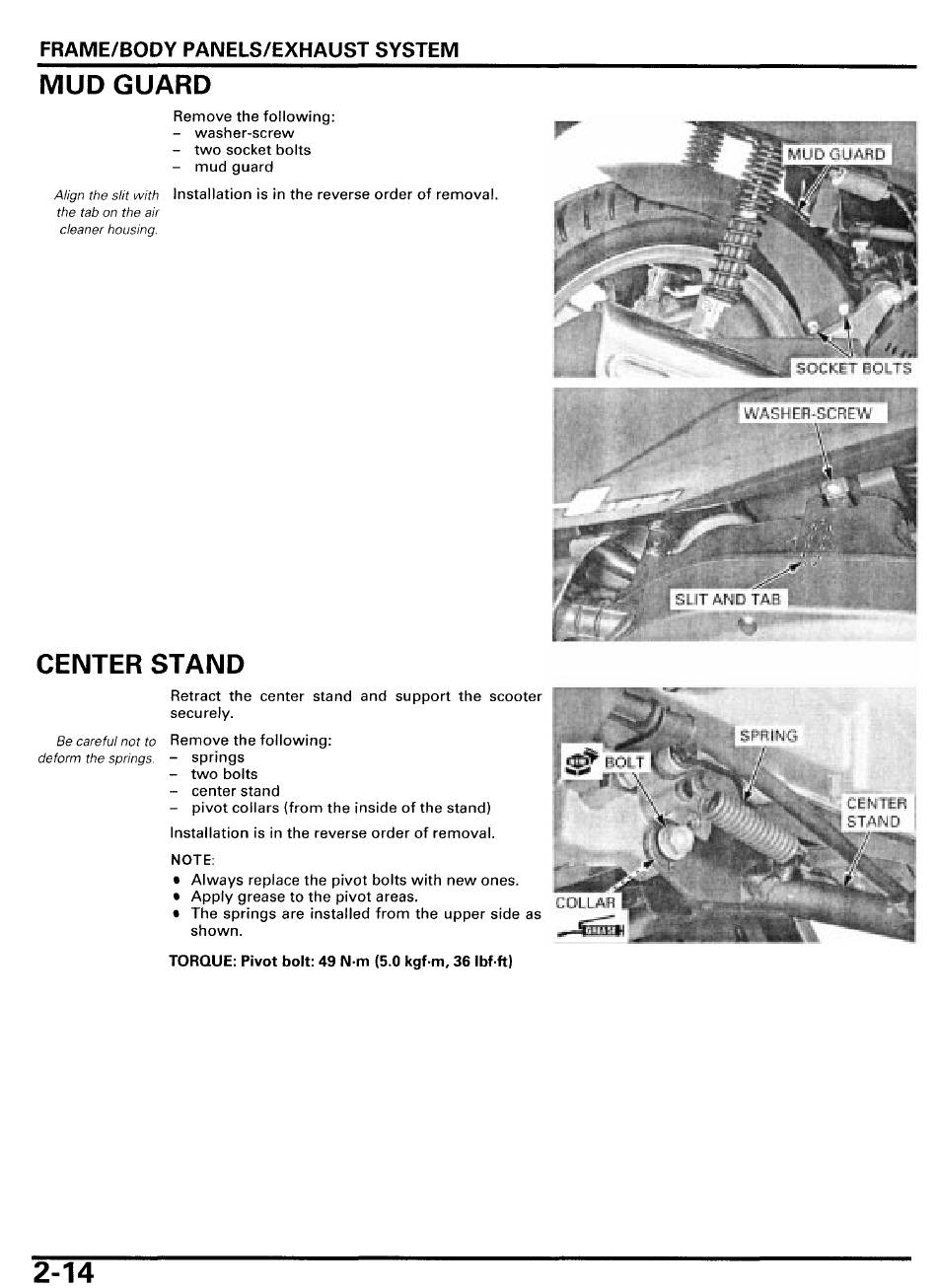

FRAME/BODY PANELWEXHAUST SYSTEM
MUD GUARD
Remove the following:
-
washer-screw
-
two socket bolts
- mudguard
Ahgn the sht with
Installation is in the reverse order of removal.
the tab on the a/r
cleaner housmg
CENTER STAND
Retract the center stand and support the scooter
securely.
Be careful not to
Remove the following:
deform the springs.
-
Springs
-
two bolts
-
center stand
- pivot collars (from the inside of the stand)
Installation is in the reverse order of removal.
NOTE:
Always replace the pivot bolts with new ones.
Apply grease to the pivot areas.
The springs are installed from the upper side as
shown.
TORQUE: Pivot bolt: 49 N-m (5.0 k9f.m.
36 Ibf4t)
