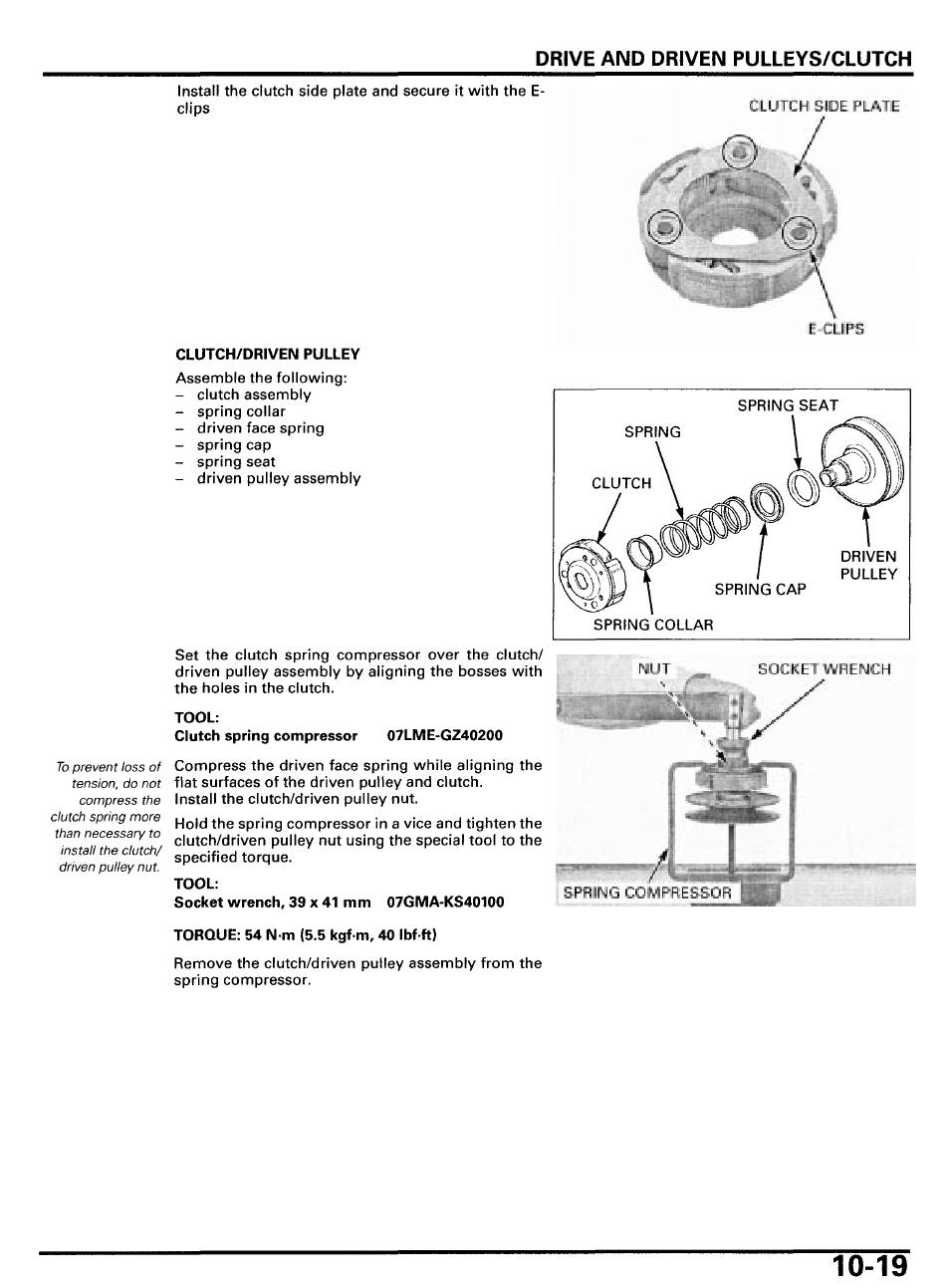

DRIVE AND DRIVEN PULLEYS/CLUTCH
~ _ _
Install the clutch side plate and secure it with the E-
clips
CLUTCHIDRIVEN PULLEY
Assemble the fo I lowing:
-
clutch assembly
-
spring collar
-
driven face spring
-
spring cap
-
spring seat
- driven pulley assembly
SPRING SEAT
DRIVEN
PULLEY
I
SPRING COLLAR
I
Set the clutch spring compressor over the clutch/
driven pulley assembly by aligning the bosses with
the holes in the clutch.
TOOL:
Clutch spring compressor 07LME-GZ40200
Toprevent loss of
Compress the driven face spring while aligning the
tension, do not
flat surfaces of the driven pulley and clutch.
compress the
Install the clutch/driven pulley nut.
spring
Hold the spring compressor in a vice and tighten the
clutch/driven pulley nut using the special tool to the
than necessary to
install the clutch/
specified torque.
driven pulley nut.
TOOL:
Socket wrench, 39 x 41 mm
TORQUE: 54 N-m (5.5 kgf-m, 40 Ibf-ftl
Remove the clutch/driven pulley assembly from the
spring compressor.
07GMA-KS40100
