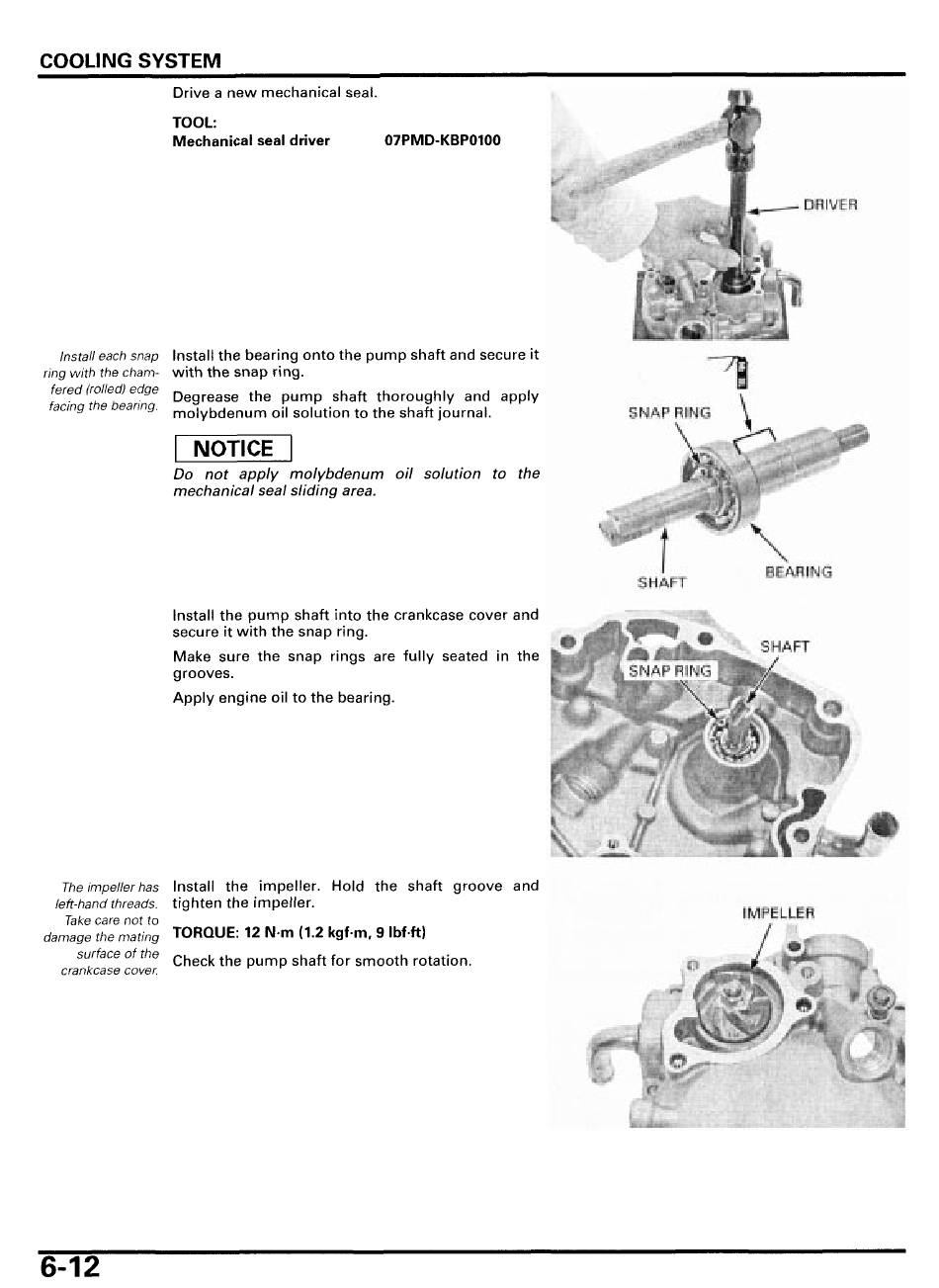

Drive a new mechanical seal.
TOOL:
Mechanical seal driver 07PMD-KBP0100
Install each snap
Install the bearing onto the pump shaft and secure it
ring with the cham-
with the snap ring.
fered
edge
Degrease the pump shaft thoroughly and apply
molybdenum oil solution to the shaft journal.
facing the bearing.
I
NOTICE
I
Do not apply molybdenum oil solution to the
mechanical seal sliding area.
Install the pump shaft into the crankcase cover and
secure it with the snap ring.
Make sure the snap rings are fully seated i n the
grooves.
Apply engine oil to the bearing.
Theimpellerhas
Install the impeller. Hold the shaft groove and
/eft-hand threads.
tighten the impeller.
Take care not to
damage the ,,,atjng
TORQUE: I 2 N.m (1.2 kgf.m,
9 Ibf.ft)
Check the pump shaft for smooth rotation.
surface of the
crankcase cover.
