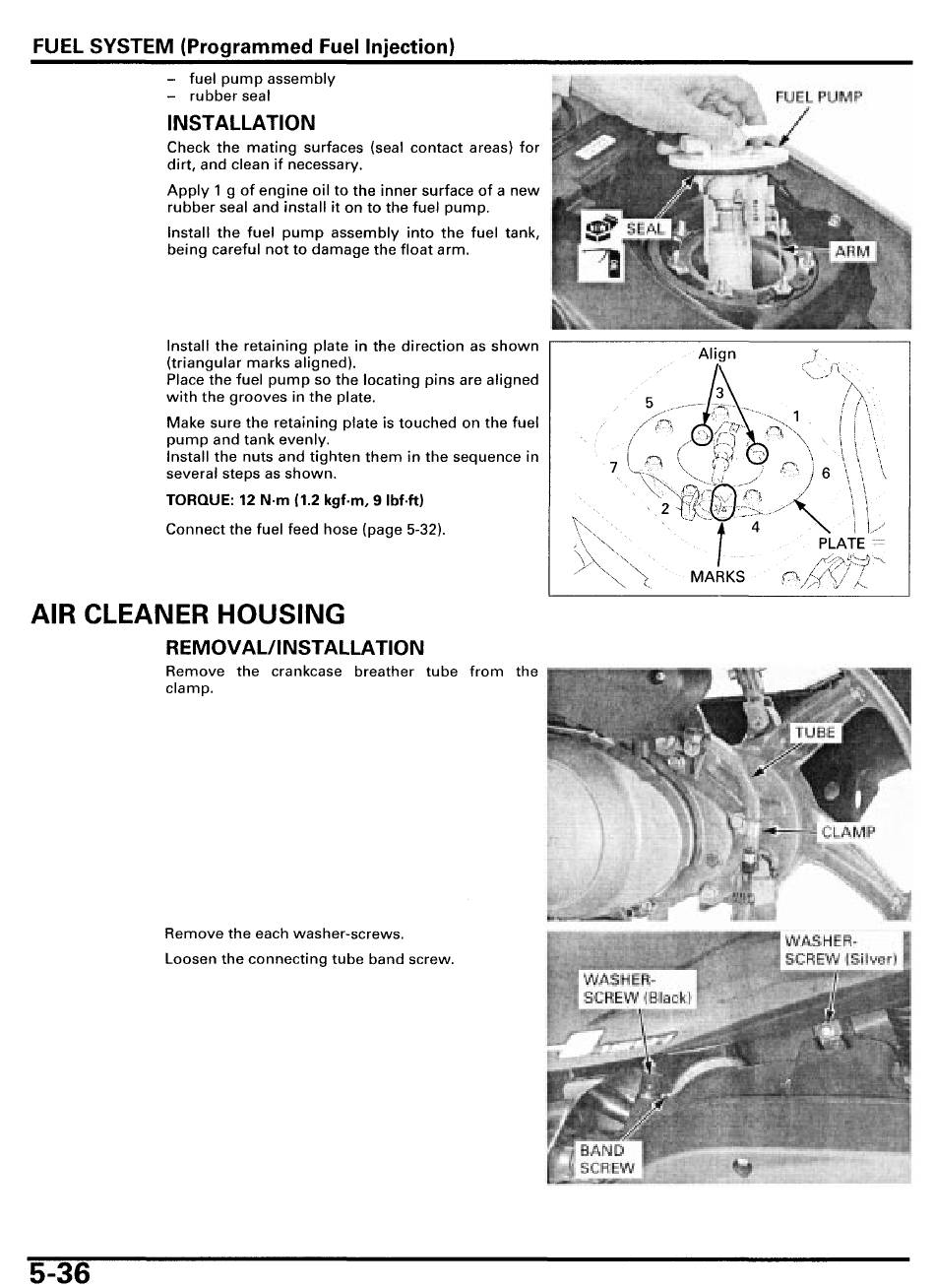

FUEL SYSTEM (Programmed Fuel Injection)
-
fuel pump assembly
-
rubberseal
INSTALLATION
Check the mating surfaces (seal contact areas) for
dirt, and clean if necessary.
Apply 1 g o f engine oil t o the inner surface of a n ew
rubber seal and install
it
o n to the fuel pump.
Install the fuel pu m p assembly into the fuel tank,
being careful not to damage the float arm.
Install the retaining plate in the direction as shown
(triangular marks a I ig ned
1.
Place the fuel p um p so the locating pins are aligned
with the grooves in the plate.
Make sure the retaining plate is touched o n the fuel
pump and tank evenly.
Install the nuts and tighten them in the sequence i n
several steps as shown.
TORQUE: 12 N m (1.2 kgfm, 9 1bf.h)
Connect the fuel feed hose (page 5-32).
AIR CLEANER HOUSING
REMOVALA NSTALLATION
Remove the crankcase breather tube fr om the
clamp.
Remove the each washer-screws.
Loosen the connecting tube band screw.
PLATE
--
5-36
