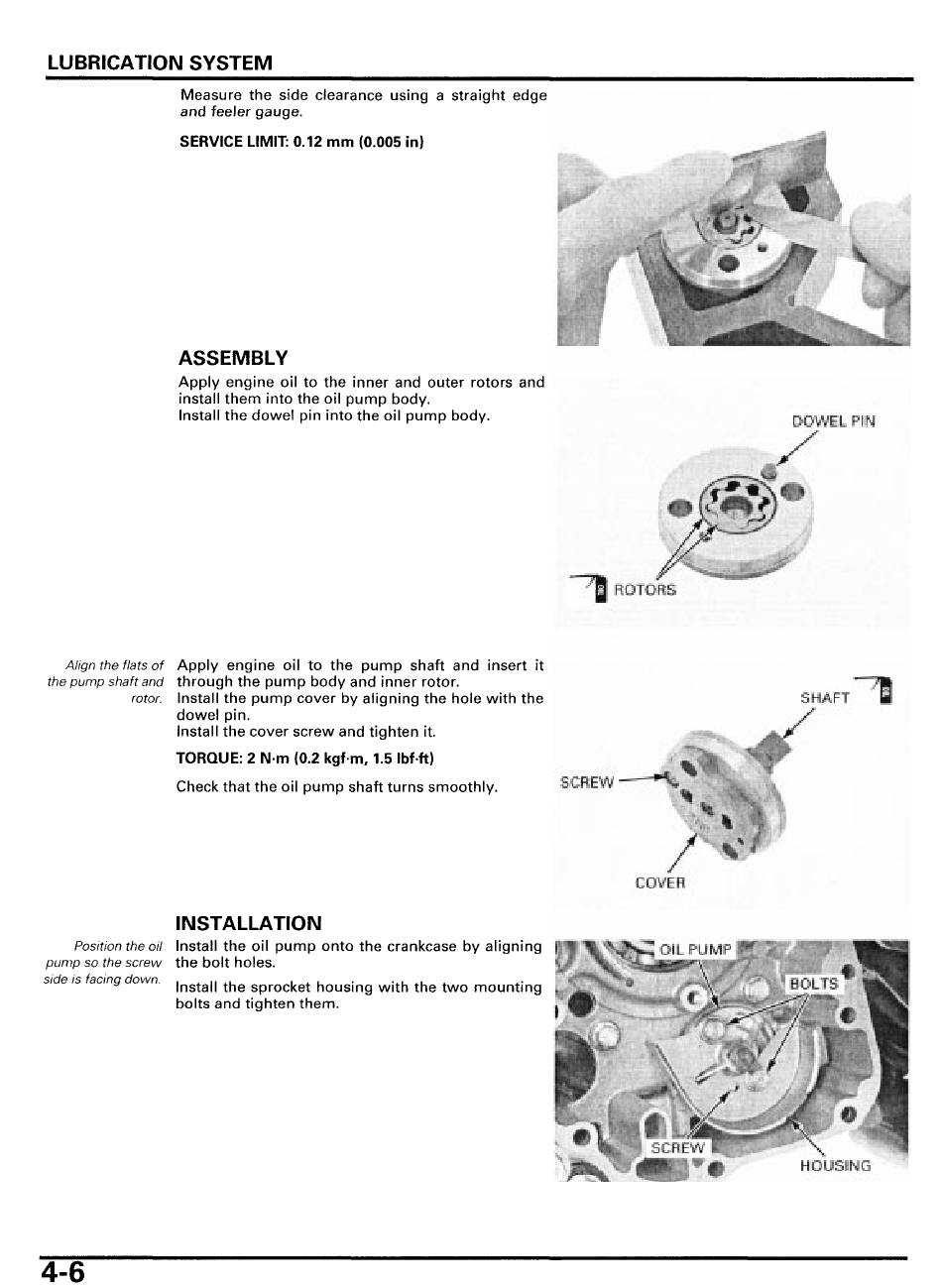

Honda SH125 Manual page 78

LUBRICATION SYSTEM
Measure the side clearance using a straight edge
and feeler gauge.
SERVICE LIMIT: 0.12 mm (0.005 in)
ASSEMBLY
Apply engine oil to the inner and outer rotors and
install them into the oil pump body.
Install the dowel pin into the oil pump body.
Aligntheflatsof
Apply engine oil to the pump shaft and insert
it
the pump shaft and
through the pump body and inner rotor.
rotor.
Install the pump cover by aligning the hole with the
dowel pin.
Install the cover screw and tighten it.
TORQUE: 2 N-m (0.2 kgf,m, 1.5 Ibf-ft)
Check that the oil pump shaft turns smoothly.
IN STALLATION
Position the oil
Install the oil pump onto the crankcase by aligning
pump so the screw the bolt holes.
Install the sprocket housing with the two mounting
side is facing down
bolts and tighten them.
4-6
