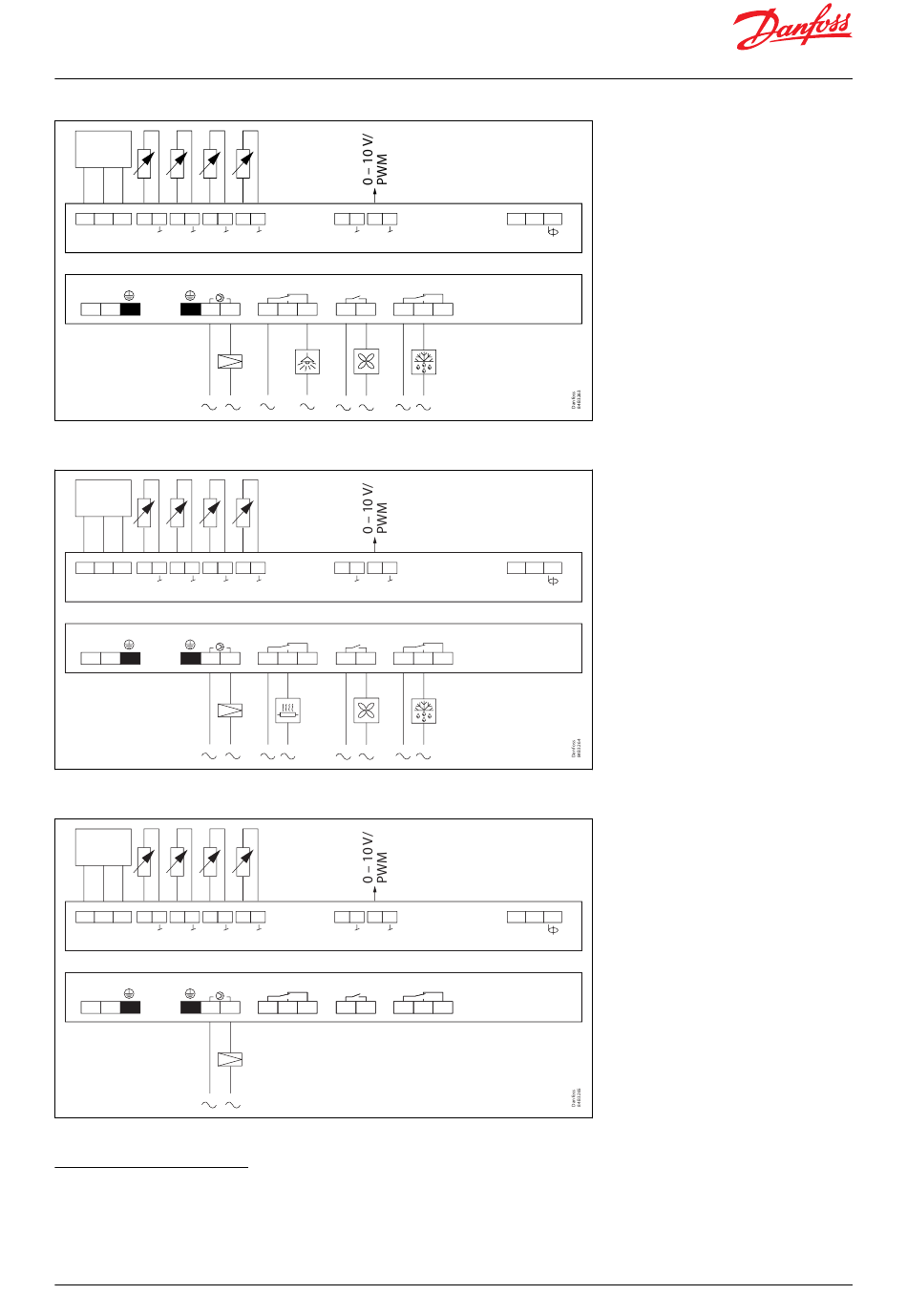

Figure 35: Connections for application 7
P
1 3 2
40 41 42 43 44 45 46 47 48 49 50
5V s
Pe S2 S3 S4
115 – 230 V AC
AKV
L N
1 2 3 7 8
Figure 36: Connections for application 8
P
1 3 2
40 41 42 43 44 45 46 47 48 49 50
5V s
Pe S2 S3 S4
115 – 230 V AC
AKV
L N
1 2 3 7 8
Figure 37: Connections for application 9
P
1 3 2
40 41 42 43 44 45 46 47 48 49 50
5V s
Pe S2 S3 S4
115 – 230 V AC
AKV
L N
1 2 3 7 8

Product identification

The controller is provided with labels from the factory, indicating a generic application. When selecting the required
application, specific labels are provided so that you can mount the relevant one.
The application number is indicated on the left-hand side of the labels. Use the label fitting the selected application.
© Danfoss | Climate Solutions | 2022.08
60 61 70 71
AI5 DI2 AO1
S5
Light Fan
9 10 11 12 13 14 15 16 17
60 61 70 71
AI5 DI2 AO1
S5
Railheat Fan
9 10 11 12 13 14 15 16 17
60 61 70 71
AI5 DI2 AO1
S5
DO2 DO3
9 10 11 12 10 11 12 13 14 13 14 15 16 17 15 16 17
Custom set-up
7
83 84 85
B - A +
MODBUS
Defrost
8
83 84 85
B - A +
MODBUS
Defrost
9
83 84 85
B - A +
MODBUS
DO4
