Feeder Line Suspension - Chore-Time ATF Installation And Operator's Manual

MODEL ATF™ and MODEL ATF™ PLUS Feeding System

Feeder Line Suspension

1.Install the Hangers (Item 1) on the Tubes on 8' (2.4 m) spacings determined by the suspension drop lines.
Figure 25. See Figure 25 for proper Cable routing around the Cable Lock (Adjustment Leveler).
2.Following installation of all drops, check drop Cables before raising Feeder Line. Cable must be on all
pulleys before raising the Feeder Line.
3.Raise the Feeder Line to a convenient working height.
4.After the Feeder Line has been suspended, level the system to the bird walking surface.
5.Before tightening each Clamp:
•make sure each tube is level (not sagging, sloping, etc.)
Use the Large Hole for
1/8" [3 mm] Drop Cable.
Use the Small Hole for
3/32" [2.38 mm] Drop Cable.
After tightening Tube
Clamps on the Feeder
Tubes, trim off excess
cable.
MF2505A
2
Item Description
1 Hanger
2 Cable Lock

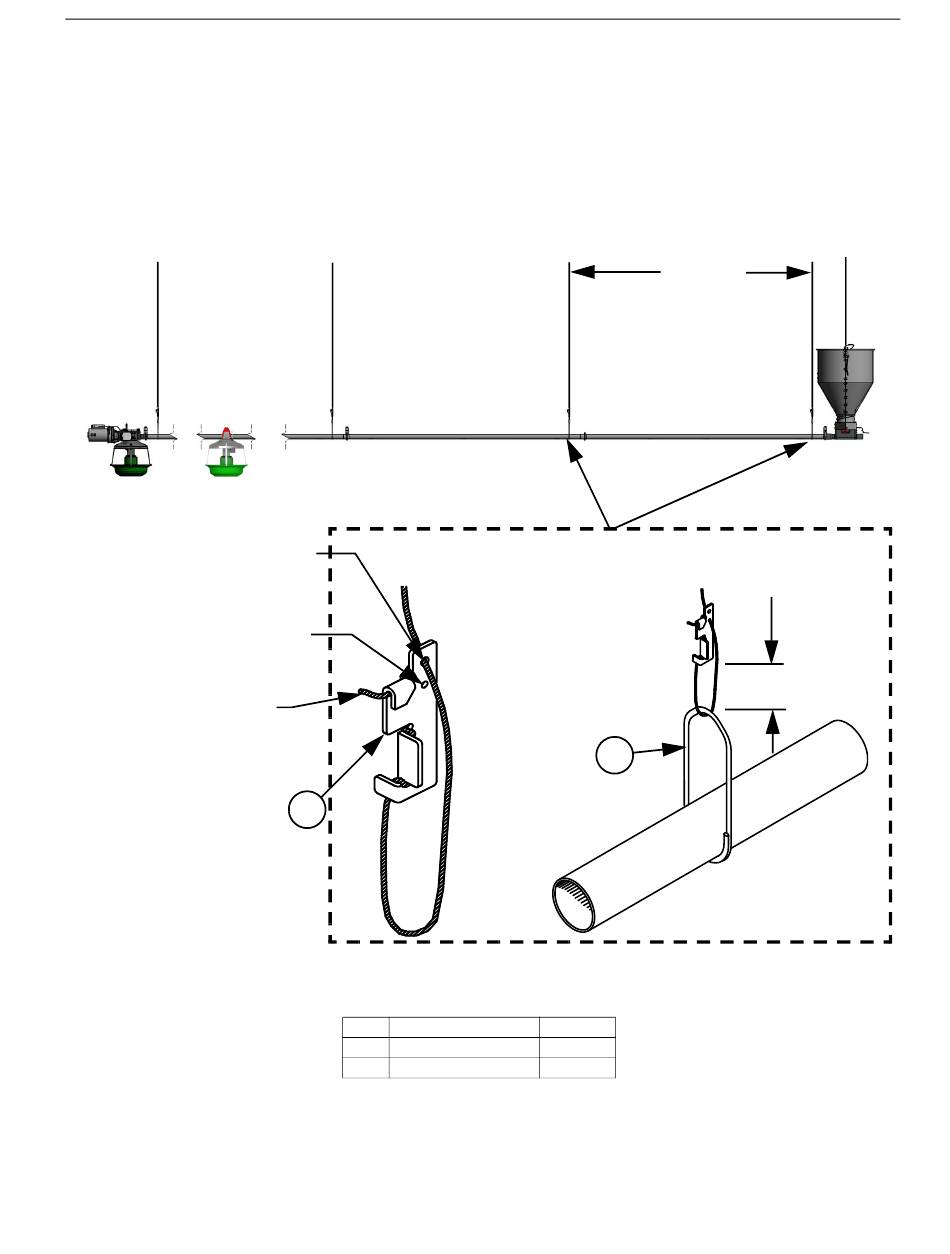

Figure 25. Adjustment Leveler and Hanger Installation.
Hangers
Approx. 8' [2.4 m]
(Determined by drop lines.)
1
Part No.
4207
14337
6"[152 mm] Max.
25
