Feeder Assembly and Installation
Feed Cone Assembly
Plastic Feed Level Cone

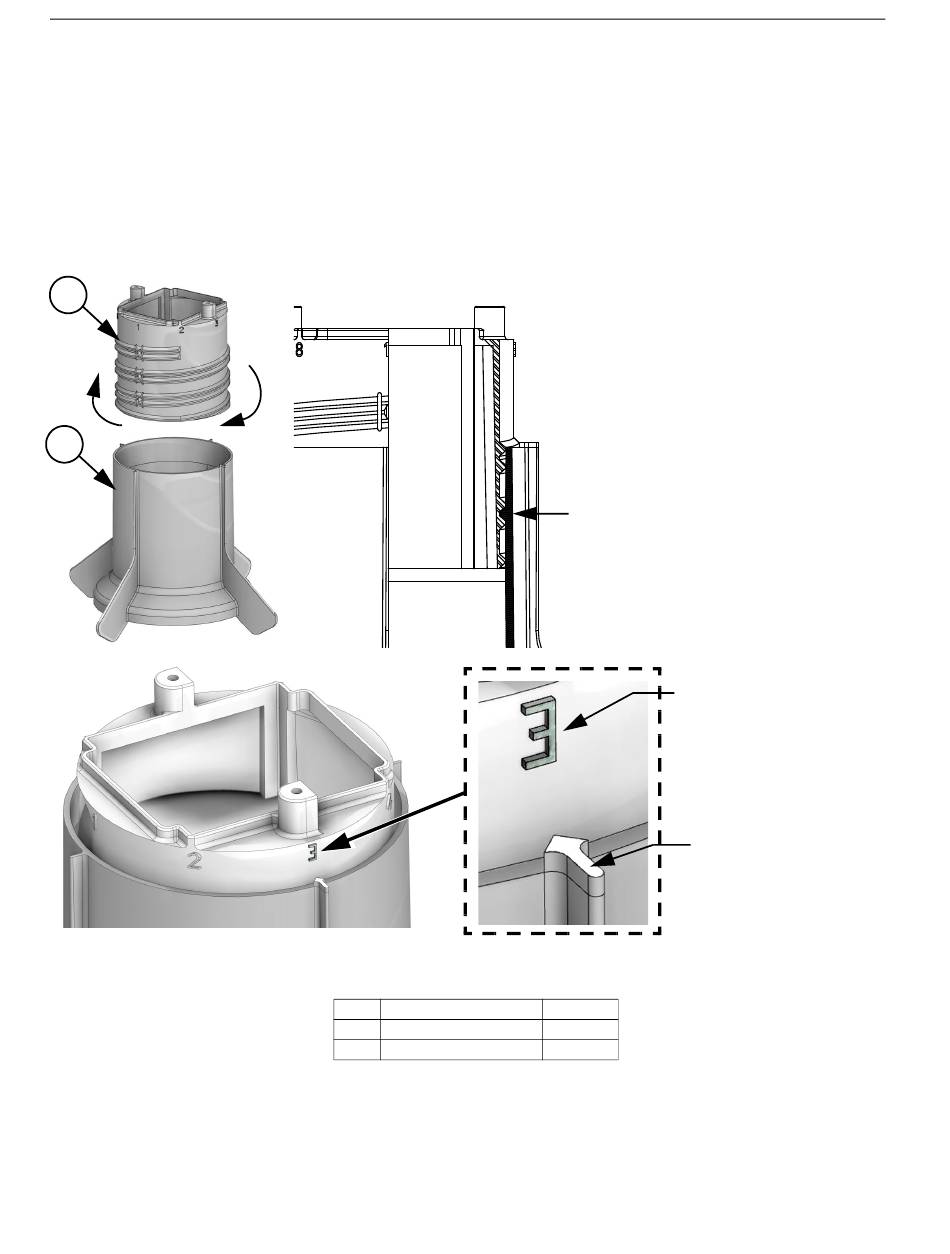

1.Assemble the Feed Level Cone (Item 1) and Adjustment Cone (Item 2) as shown in Figure 36.
2.Adjust to feed level #3 as shown.
Note: When properly installed the cones will only move if they are rotated to a different feed level.
2
1
32
Item
Description
1
ATF Feed Level Cone
2
Feed Adjustment Cone
Figure 36. Cone Assembly
MODEL ATF™ and MODEL ATF™ PLUS Feeding System
Careful not to Cross
Thread.
Feed Level 3
Feed Level Indicator
Part No.
49802
49801
MF2505A
