MODEL ATF™ PLUS Feeding System

Feeder Tube Assembly

1. Slide one Pan Assembly onto the Feeder Tube for each outlet hole. Lift the Drop Tube through the Pan Shield

so the Feeder Tube can slide through the holes in the sides of the Drop Tube. Install the Pan Assemblies so that

all the Swing Down Pan Supports are on the same side of the feeder line.

2. Rotate the feeder Tube so that the tab at the outlet hole will pass through the notch in the Drop Tube. Rotate the

tube 180 degrees to lock the pans in place, see figure 18. Make sure outlet holes are down.

3. Position the tubes with pans attached end to end in the approximate location where they will be suspended. The

belled ends of the tubes must point towards the hopper.

Feeder Line Assembly & Suspension

1. The tubes should be laying end to end in approximately the final location of the line. The expanded end of each

tube should be toward the hopper end of the line, see figure 19.

2. Connect the individual feeder tubes together by inserting the straight end of the tube as far as possible into the

belled end of the next tube.

MF1814C

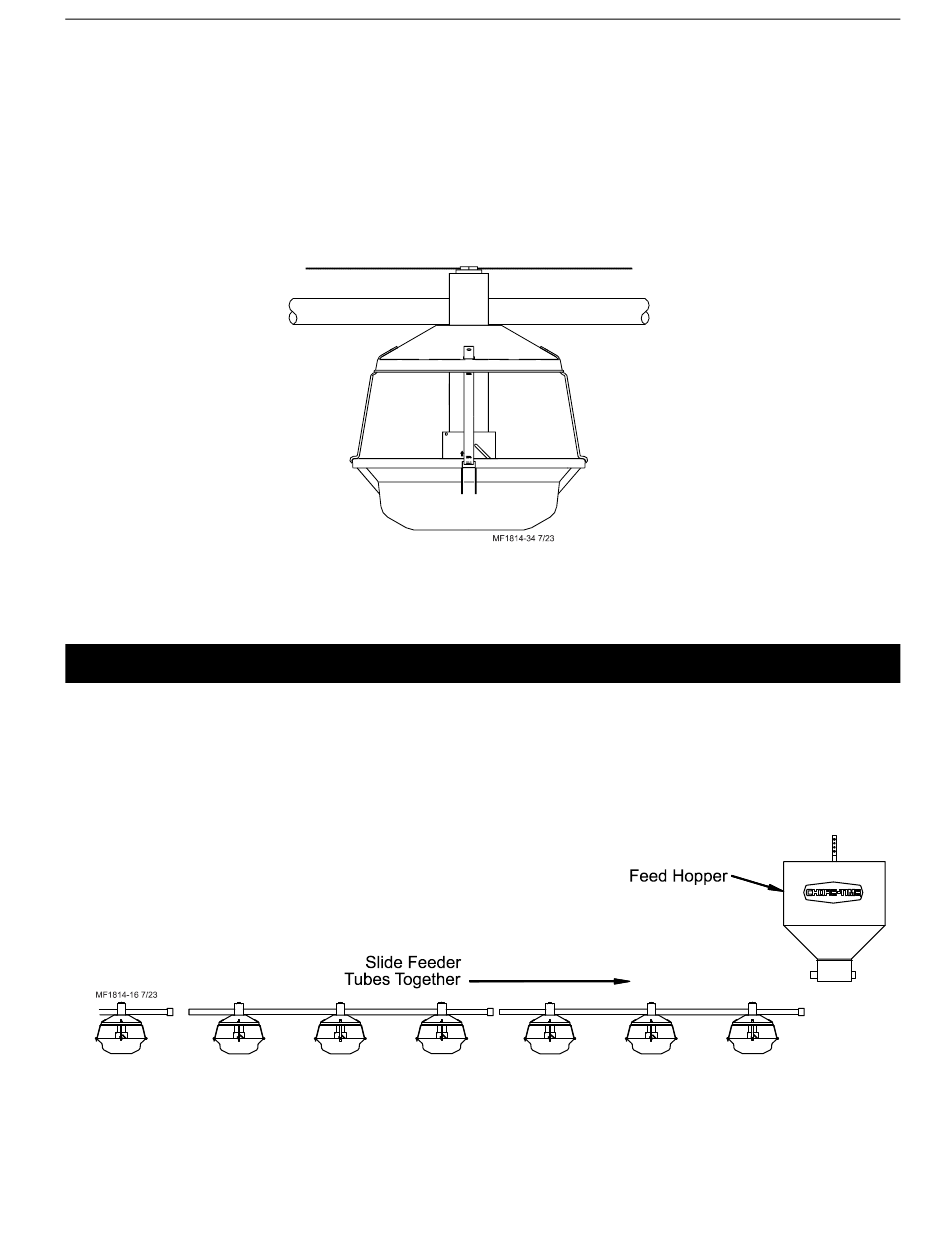

Figure 18. Install Feeders on Tubes

Figure 19. Feeder Line Assembly Procedure

Feeder Line Assembly & Suspension
