Winch Adjustable Feed Level Cones
Chore-Time's Adult Turkey Feeder can be equipped to provide Winch adjustable Feed Level Cones. Existing systems can be (easily) upgraded to include Feed
Level Cone winching components. The Feed Level Cones are adjusted using a Winch and cable. The maximum line length for each Winch is 200'(61 m). The
Winch should be located in the middle of the line of Feeders See Figure 47.
The Feed Level Cones are winched up to flood the Pans with feed to allow maximum access to the feed for young turkeys. As the birds grow the Feed Level
Cones can be lowered to reduce the feed level.
Installation of the Winch Adjustable Feed Level System
Parts to Install the Winch are included in Winch Kit Part No. 53197
1.Install a Spring at one end of the Feeder Line and attach the end of the Cable to it as shown in Figure 47.
2.Use two U-bolts to fasten the Winch to the Feeder Line Tube, See Figure 47. The Winch should be placed in the center of the line of Feed Level Cones it
will adjust, as shown in Figure 47.
Spring
Feed Hopper
Insulator
Bracket
Clamp
200' [61 m]
Maximum
Winch
Spring
Spring
Split Bolt
2381-036 10/15

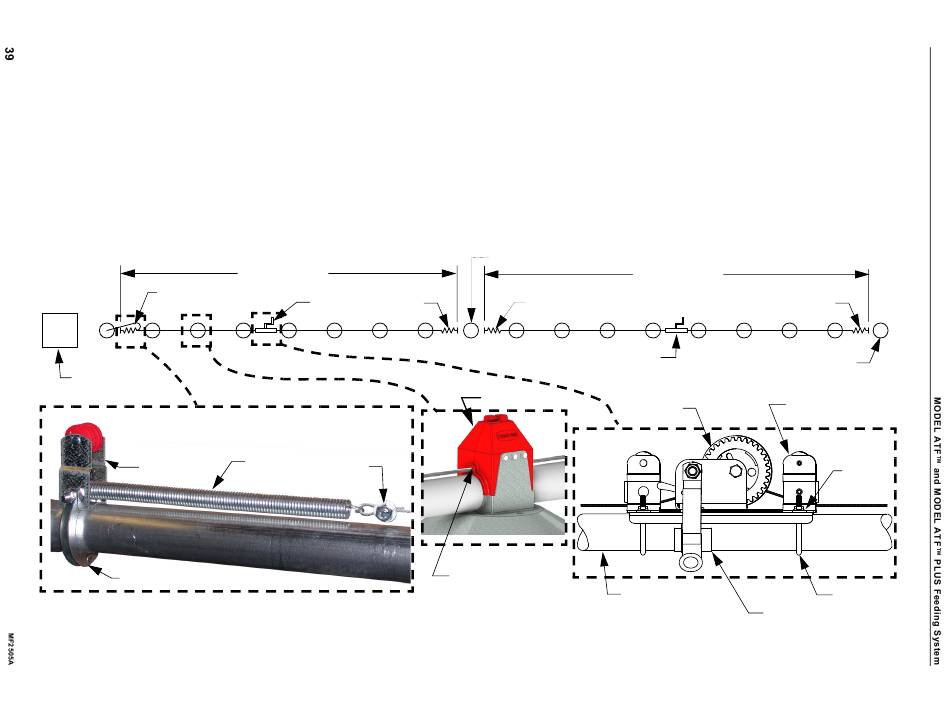

Figure 47.Installation of the Winch Adjustable Feed Level Tube System
Mid-Line Control
Spring
Mid-Line Control
Winch
Support Cone
Feed Cable through
Support Cones
Auger Tube
200' [61 m]
Maximum
Spring
2381-037 10/15
Control Unit
Insulator Bracket
Winch
2381-040 10/15
Tube Closure Kit
Washer
U-Bolt
