Feeder Line Assembly and Suspension

Feeder Line Assembly and Suspension
ACCU-CLICK™ Actuator Installation
The actuator assembly is to be installed in the middle of the total pans the actuator is to operate. Using two half
clamps provided with the actuator attach the actuator assembly to the feeder tube between two pans. The two
halves of the clamps are not the same. The wider half will attach to the base of the actuator. The other half
will be installed over the tube, sliding into the wider half of the clamp.
When Installing the Actuator the Tube Seam must be on the side opposite the Actuator Handle, see figure
31. It may be necessary to use a tube closure kit if the actuator is to be placed near a feed outlet hole on the tube.

Feeder Pan and Tube Assembly Process

1.Slide one Feeder Pan Assembly per hole onto the auger tubes.
IMPORTANT: Install all the feeders on the tubes in the same orientation.
When sliding the feeders on the tubes, make sure the pivot bracket are on the same side of the tube.
Rotate the auger tubes so that the seam is down, this holds the Pan Assemblies in place on the tubes.
2.
See Figure 32.
Assemble half the tubes with the pivot bracket on the left side and half on the right side. The tubes with the actuator
mounted will have different pivot bracket orientation on the same tube.
Example: A 9 foot tube will have two pans on the left side and two pans on the right side.
22

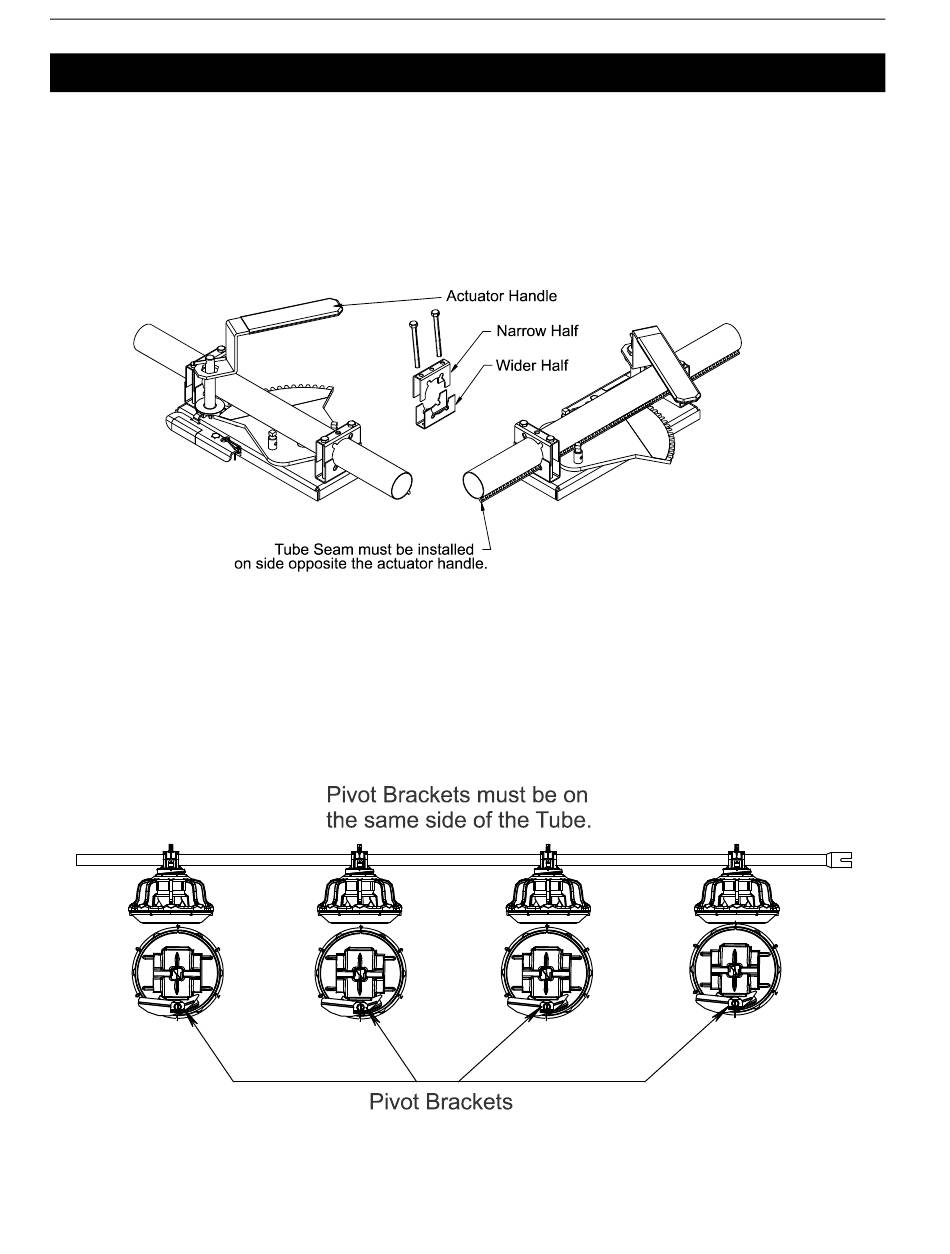

Figure 31. ACCU-CLICK™ Actuator installation
Figure 32. Assemble Feeders on tubes
