MODEL C2® PLUS & MODEL G™ PLUS with Proximity Sensor Feeding System

Feeder pan assembly

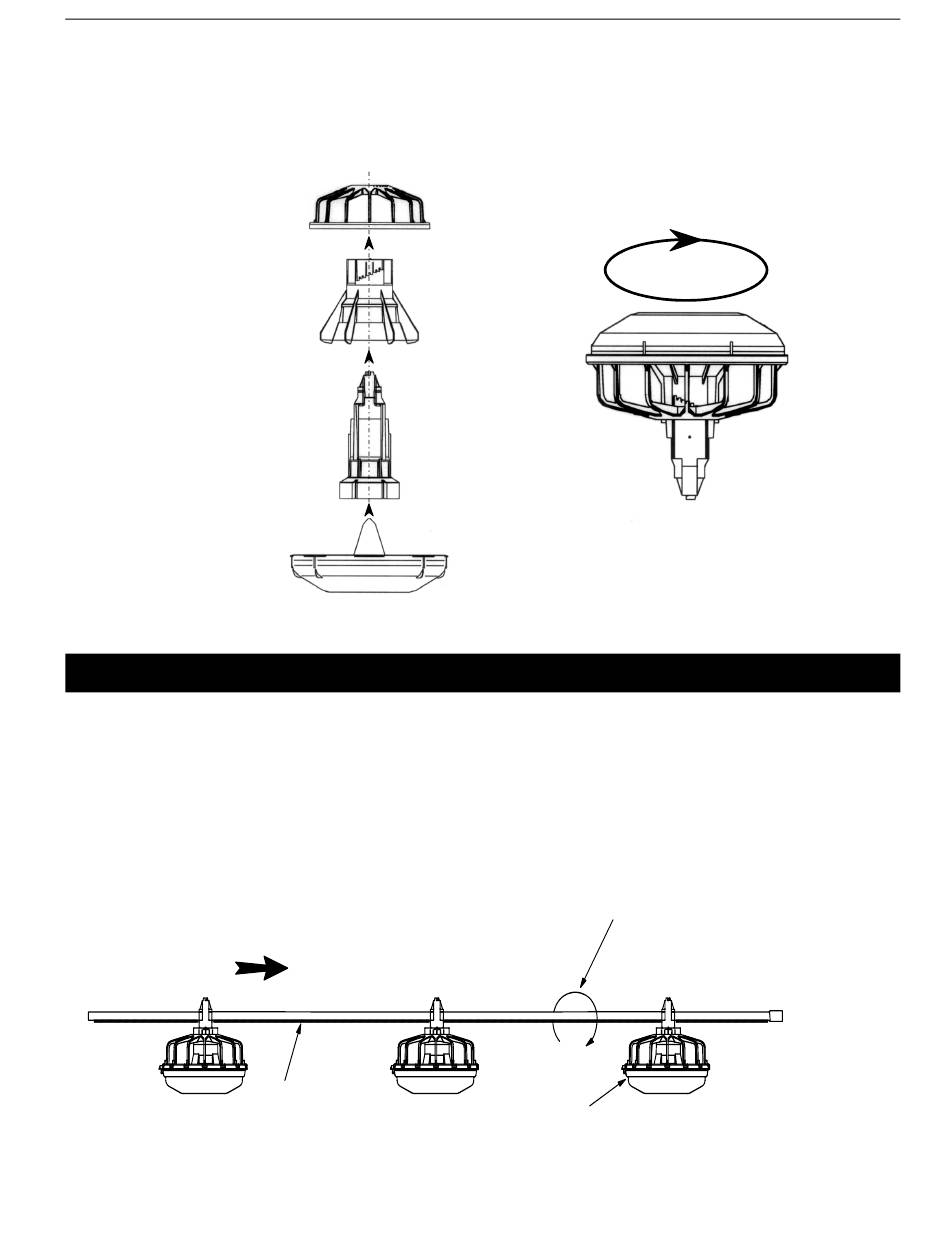

All feeders assemble in the same manor. Refer to Figure 21. below. Slide the Support Cone, the Adjustment Cone,
and the Grill together as shown. Hook the loop of the Grill to the tab of the Feeder Pan. Rotate the Feeder Pan over
on the top of the Grill and Cones. Seat the Feeder Pan in the ring of the Grill. With the Feeder Pan fully seated
rotate the pan clockwise to lock in place. Assemble the remaining Feeders.
C2 Plus Grill
Adjustment Cone
Support Cone
Feeder Pan

Feeder Line Assembly and Suspension

Feeder Pan and Tube Assembly Process

1.Slide one Feeder Pan Assembly per hole onto the auger tubes.
IMPORTANT: Install all the feeders on the tubes in the same orientation.
When sliding the feeders on the tubes, make sure the grill openings are on the same side of the tube.
1.Rotate the auger tubes so that the seam is down, this holds the Pan Assemblies in place on the tubes. See
Figure 25.
1) With the Hem of the Feeder Tube up slide the
Feeder Pan Assembly on the Feeder Tube.
Position one (1) Feeder Pan Assembly over each
hole on the Feeder Tube.

Assemble and Suspend the Feeder Line

MF2495A
Figure 21. Assembling the Feeder Pan
2) Feeder Tube
4) Feeder Pan Assembly
Figure 22. Assemble Feeders on tubes
Feeder pan assembly
Rotate the Feeder Pan
to lock into the Grill
1255-114 4/2001
3) Rotate the Feeder Tube after the
Feeder Pan Assemblies are
in place. This will lock the
Feeder Pan Assemblies in place
1255-82 1/2001
15
