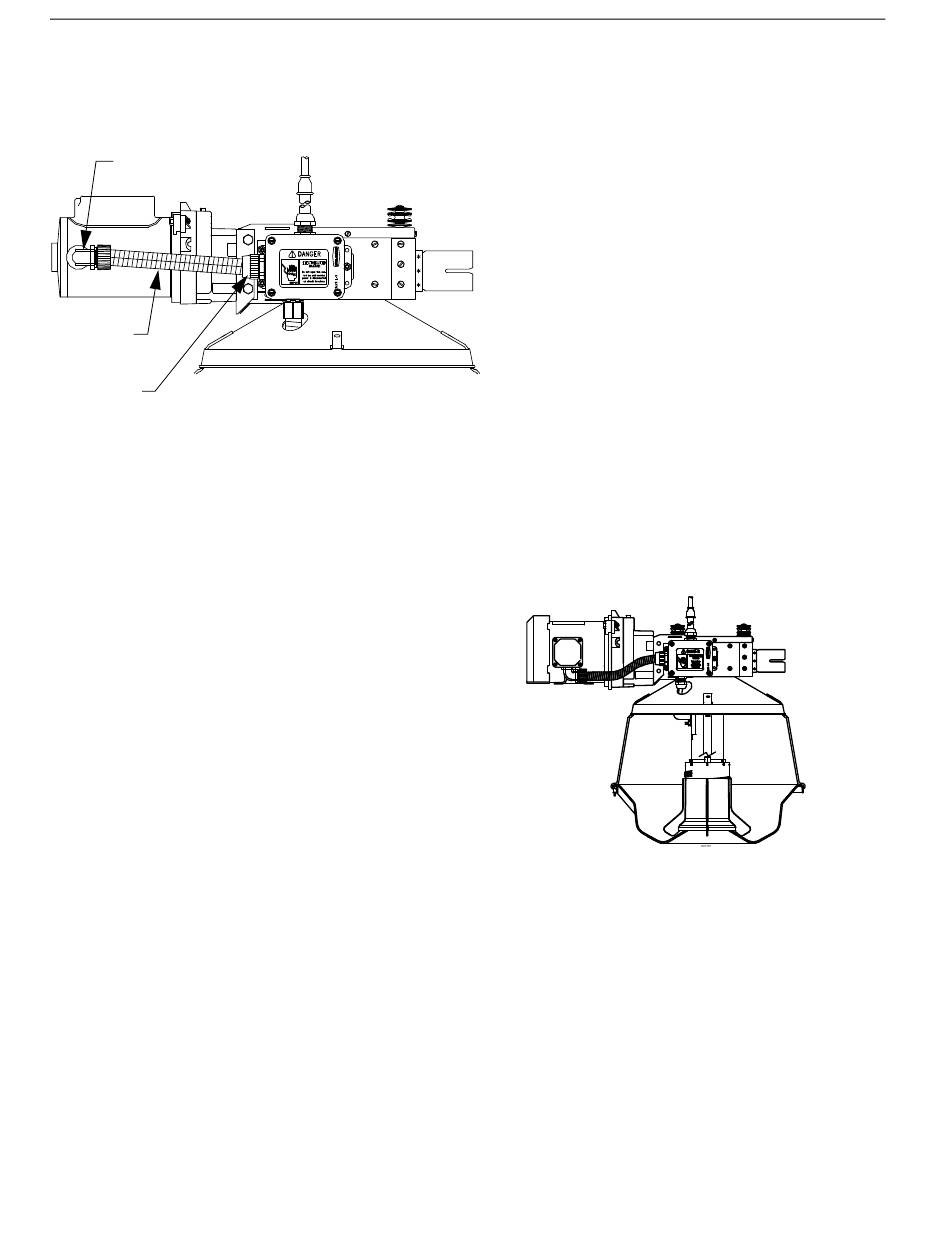

6.Single Phase: Install the 90 Degree Connector, flexible conduit, electrical wire, and Conduit Connector as
shown in Figure 33.
Three Phase: Refer to applicable electrical standards for connecting power unit to Control Unit. Components
are not supplied by Chore-Time.
90° Connector
Flexible
Conduit
Conduit
Connector
Figure 33. Conduit Installation
7.Insert the flex cable that is attached to the Control Switch through the hole in the Control Unit Pan Shield and
attach the romex connector to the handy box, (See Figure 34).
8.DISCONNECT ELECTRICAL POWER
PRIOR TO WIRING THE CONTROL
UNIT.
Single Phase Control Unit may be wired as
shown, See "Single Phase(Ø) Wiring
Diagram" on page 45
Three Phase Control Unit must be wired as
shown, See "Three Phase(Ø) Wiring
Diagram: 220/230 V." on page 46
Mount the control unit on the end of the feeder line
and secure with a Tube Clamp. See Figure 31 (on
page 29). The distance between the control unit
pan and the last pan should be 5' (1.5 m) or less.
30
MODEL ATF™ and MODEL ATF™ PLUS Feeding System
2381-005 10/15
2303-06 10/15
Figure 34. Switch Installation
MF2505A
