Feeder Line Assembly and Suspension

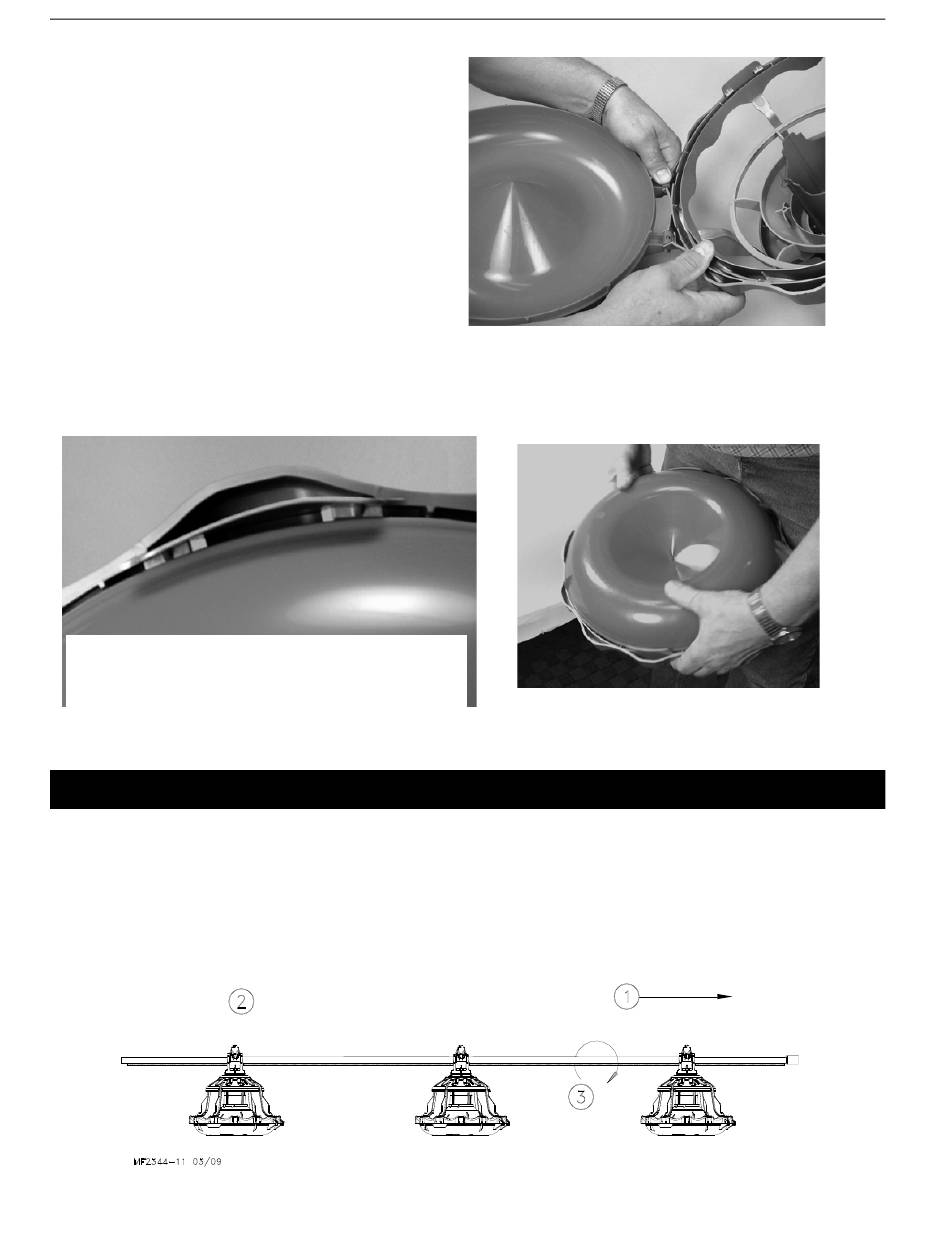

5.Holding the grill at 90 degree to the pan. Align
the pan pivots then snap the lock in place see
Figure 23. make sure the pan hinges are locked
in place.
6.Flip the pan over and snap the pan into the grill. Be sure all snaps are locked in place. See Figure 24.
The Feeder Assemblies will be installed on the auger tubes in the Feeder Line Installation section.
Pan Not properly snapped in place. The
silver tabs should be on top of the Pan Ring.
Feeder Line Assembly and Suspension

Feeder Pan Tube Assembly Process

1.1.Slide one Feeder Pan Assembly per hole onto the auger tubes.
IMPORTANT: Install all the feeders on the tubes in the same orientation.
2.When sliding the feeders on the tubes, make sure the grill openings are on the same side of the tube.
3.Rotate the auger tubes so that the seam is down, this holds the Pan Assemblies in place on the tubes. See
Figure 25.
16
Figure 24.Assembling Support Cord to Feed Cone
Figure 25.Assembling Feeders on the Tubes
LIBERTY® Feeding System with Electronic Sensor (ES)
Figure 23.Assemble the grill ass'y to the feeder pan
