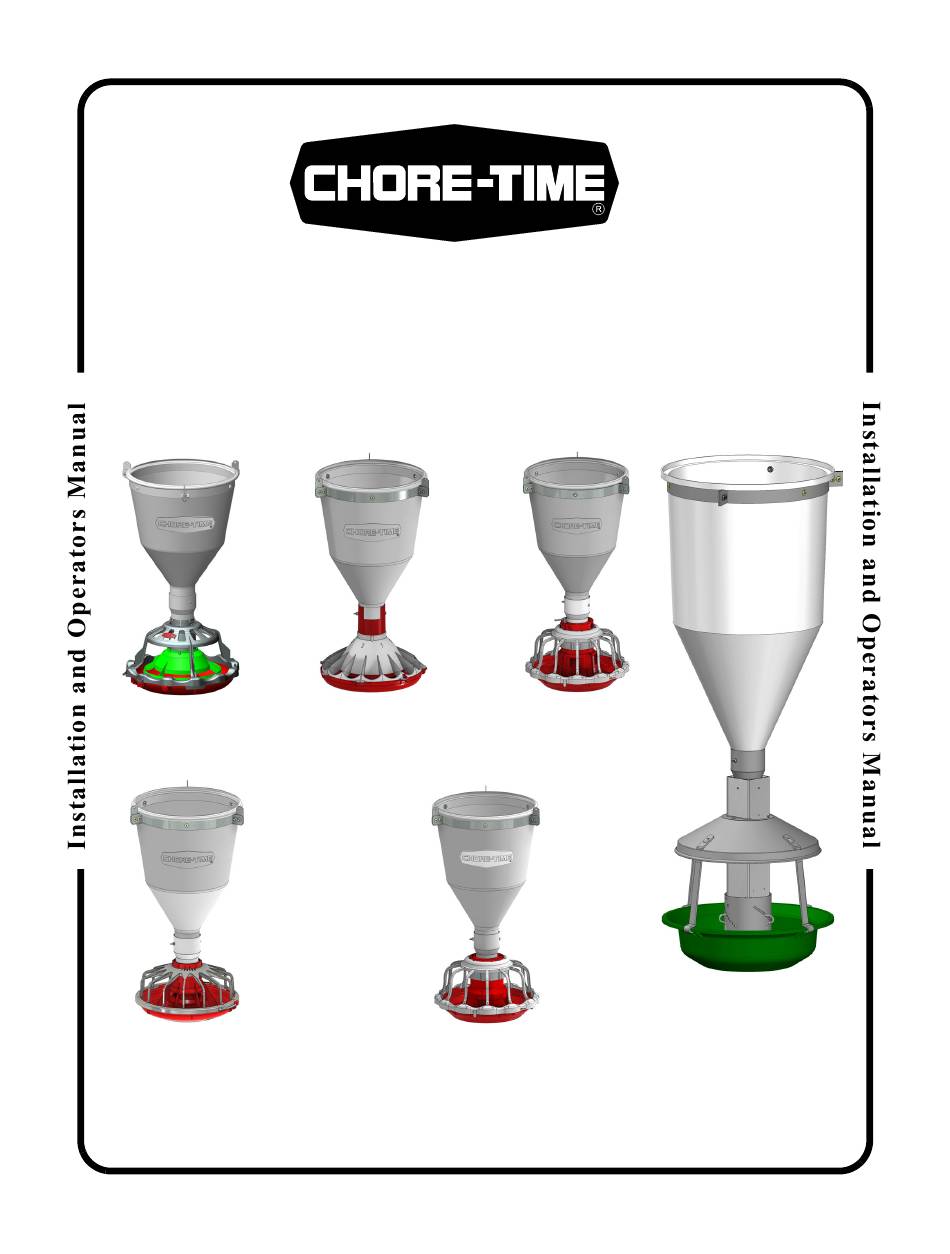

Manual Feeder
Installation and Operators Manual
®
®
®
LIBERTY
Assembly
KONAVI
(56209)
REVOLUTION
8 Spoke (56211)
(53476)
and 12 Spoke (56210)
ATF
Plus (53477)
TM
®
®
C2
PLUS Deep (56200) and
FLOOR FLOOD REVOLUTION
(FFR)
®
8 Spoke (56213) and 12 Spoke (56212)
C2
PLUS Shallow (56208)
January 2022
MF2380B
Advertisement
Table of Contents
Related Manuals for Chore-Time LIBERTY 53476
Summary of Contents for Chore-Time LIBERTY 53476
- Page 1 Manual Feeder Installation and Operators Manual ® ® ® LIBERTY Assembly KONAVI (56209) REVOLUTION 8 Spoke (56211) (53476) and 12 Spoke (56210) Plus (53477) ® ® PLUS Deep (56200) and FLOOR FLOOD REVOLUTION (FFR) ® 8 Spoke (56213) and 12 Spoke (56212) PLUS Shallow (56208) January 2022 MF2380B...
-
Page 2: Table Of Contents
Contents Topic Page Introduction..............3 Warranty . -
Page 3: Introduction
One (1) year from the date of installation by the original purchaser (“Warranty”). If such a defect is determined by Chore-Time to exist within the applicable period, Chore-Time will, at its option, (a) repair the Product or Component Part free of charge, F.O.B. the factory of manufacture or (b) replace the Product or Component Part free of charge, F.O.B. -
Page 4: Safety
Manual Feeder Safety Caution, Warning and Danger Decals have been placed on the equipment to warn of potentially dangerous situations. Care should be taken to keep this information intact and easy to read at all times. Replace missing or damaged safety decals immediately. Safety–Alert Symbol This is a safety–alert symbol. -
Page 5: General Information
Manual Feeder General Information The Chore-Time Manual Feeders have been designed to feed poultry. Using this equipment for any other purpose or in a way not within the operating recommendations specified in this manual will void the warranty and may cause personal injury. -
Page 6: Installation
Installation Manual Feeder Installation Feeder Assembly ® KONAVI (56209) Feeder Assembly 1.Insert the Quarter Turn Key (55818) into the Key-hole of the Chick Excluder (55821). Note: Only one leg of the Chick Excluder has the Key-hole. 2.Push on the Quarter Turn Key until it snaps into place. Quarter Turn Key (55818) Snap into place (55821) - Page 7 Manual Feeder Installation 5.Push down and Rotate the Chick Excluder until it snaps in place and turn the Quarter turn Key Clockwise 90°. Chick Excluder Quarter Turn Key Key-way MF2380B...
-

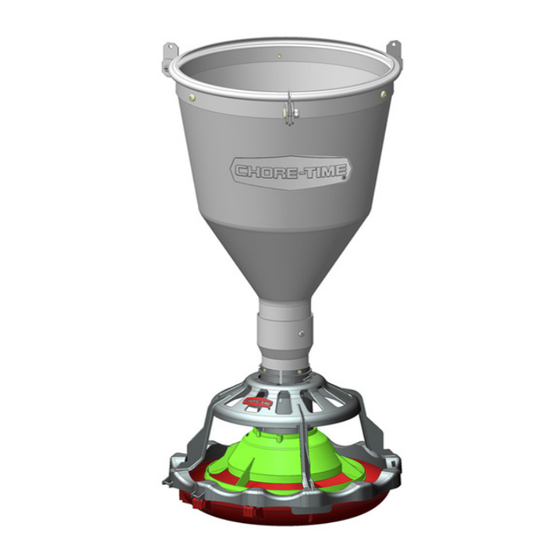

Page 8: Liberty® Manual Feeder Assembly (53476)
Installation Manual Feeder ® LIBERTY Manual Feeder Assembly (53476) 1.Insert the Feed Level Cone (53479) into the Machined Adjustment Cone (51629) as shown in Figure 4. They will only slide together when they are lined up correctly. 2.Screw the LIBERTY Grill onto the Feed level Cone. (51630) (53479) ®... -
Page 9: Revolution®, And Floor Flood Revolution® Feeder Assemblies
Manual Feeder Installation ® ® REVOLUTION , and FLOOR FLOOD REVOLUTION Feeder Assemblies REVOLUTION: 8 spoke (56211) and 12 Spoke (56210) FLOOR FLOOD REVOLUTION: 8 spoke (56213) and 12 Spoke (56212) The REVOLUTION and FLOOR FLOOD REVOLUTION Feeders assemble in the same manner. 1.Set the Grill (46837 or 46834) on the Cone Assembly (56214) and Rotate the Grill until it reaches Position 4. -
Page 10: C2® Plus Deep (56200) And Shallow (56208) Feeder Assemblies
Installation Manual Feeder ® Plus Deep (56200) and Shallow (56208) Feeder Assemblies 1.Set the Grill (39567) on the Cone Assembly (56205-Shallow, or 56206-Deep) (See Figure 8.). 2.Insert the Hook of the Feeder Pan into the slot in the Grill. 3.Rotate the Pan up until it is engaged with the Grill. 4.Rotate the Grill until it snaps in place as shown. -
Page 11: Atftm Plus (53477) Feeder Assembly
Manual Feeder Installation Plus (53477) Feeder Assembly 1.Attach four ATF Struts (49171) to the Pan Shield (49137) with 1/4-20 Carriage Bolts (22692) and 1/4-20 Lock Nuts (1269) as shown in Figure 9. 4x (22692) Carriage Bolt 4x (49137) Pan Shield 4x (1269) Lock Nut 4x (1269) - Page 12 Installation Manual Feeder 5.Set the Feed Level Ring Assembly in the Pan, insert the Drop Tube, and slide the Pan Shield Assembly onto the Drop Tube. Note that the orientation of the Pan Shield Assembly is important in relationship to the Drop Tube Assembly, Figure 12.
-
Page 13: Hopper Assembly And Installation
Manual Feeder Installation Hopper Assembly and Installation ST60036 Hopper for ATF Feeder Model 1.Assemble the Hopper Support Straps (53469) and Hopper Hangers as shown in Figure 14. Do not tighten hardware at this time. The Straps will be tightened in the next step. 2.Slide the Support Straps up onto the Hopper (ST60036) until it is against the upper Hopper flange and tighten the Hardware. -
Page 14: Hopper Assembly 35019-3 (For All Models Except Atf)
Installation Manual Feeder Hopper Assembly 35019-3 (for all models except ATF) 1.Assemble the Hopper Support Straps (53472) and Hopper Hangers as shown in Figure 16. Do not tighten hardware at this time. The Straps will be tightened in the next step. 2.Slide the Support Straps up onto the Hopper (35019-3) until it is against the upper Hopper flange and tighten the Hardware. -
Page 15: Assembling Hopper To Feeder
Manual Feeder Installation Assembling Hopper to Feeder 1.Insert the Hopper into the Adapter. 2.Using the holes in the Adapter as a guide, drill two 7/32 [5.56mm] holes in the Hopper. (See Figure 18.) 3.Attach with a #10-24 x 4 Slot Head Screw (53481) and a #10-24 Lock Nut (34019). Drill two 7/32"... -
Page 16: Feeder Suspension
Installation Manual Feeder Feeder Suspension 1.Use the provided S-Hooks (2805) and Chains to suspend the Feeder as shown below in Figure 19. The ATF Plus Feeder is shown. All Feeders are Suspended the same way. (2128-250) Approximately 5’ [1.52m] Chain (2805) S-Hook 3x (2128-250) approximately 2’... -
Page 17: Part Numbers
Manual Feeder Part Numbers Part Numbers ® LIBERTY Manual Feeder Assembly (53476) All Hardware below is Full Scale (34660) #6-32 x .375 Phil. Panhead Screw (34019) #10-24 Lock Nut (46460) 1/4-20 Flange Nut (4424-1) 1/4-20 Machine Screw (53481) #10-24 x 4.00 Slot Head Screw Item Part No... -
Page 18: C2 Plus Deep (56200) And C2 ® Plus Shallow (56208) Feeder Assemblies
Part Numbers Manual Feeder ® ® PLUS Deep (56200) and C2 PLUS Shallow (56208) Feeder Assemblies 56200 56208 Deep Shallow Item Description Part No C2 PLUS Deep Feed Pan 41501 C2 PLUS Shallow Feed Pan 41500 C2 PLUS Cone Assembly 56206 C2 PLUS Shallow Cone Ass’y 56205... -
Page 19: Atf Plus (53477) Feeder Assembly
Manual Feeder Part Numbers ATF Plus (53477) Feeder Assembly MF2380B... - Page 20 Part Numbers Manual Feeder Item Part No Description ST60036 100# Hopper 49137 Pan Shield 53478 ATF Drop Tube 4194 Feed Level Cone 29320 Feed Level Ring 29000G ATF Pan (Green) 1269 1/4-20 Lock Nut 49171A ATF Strut 53480 Machined Adapter 3037 #10-16 x 1/2 Self Drilling Screw 34660...
-
Page 21: Revolution® 8 Spoke (56211) And 12 Spoke (56210) Feeder Assemblies
Manual Feeder Part Numbers ® REVOLUTION 8 Spoke (56211) and 12 Spoke (56210) Feeder Assemblies 12 Spoke Shown 56211 56210 8 Spoke 12 Spoke Item Description Part No Feed Pan 46480 46480 REVOLUTION Cone Ass’y 56214 56214 8 Spoke REVOLUTION Grill 46834 12 Spoke REVOLUTION Grill 46837... -
Page 22: Ffr 8 Spoke (56213) And 12 Spoke (56212) Feeder Assemblies
Part Numbers Manual Feeder FFR 8 Spoke (56213) and 12 Spoke (56212) Feeder Assemblies 56213 56212 8 Spoke 12 Spoke Item Description Part No FFR Feed Pan 46480 46480 FFR Cone Assembly 56215 56215 8 Spoke FFR Grill 46834 12 Spoke FFR Grill 46837 Plastic 35lb. -
Page 23: Konavi (56209) Feeder Assembly
Manual Feeder Part Numbers ® KONAVI (56209) Feeder Assembly 56209 Item Description Part No KONAVI Feeder Pan 55819 KONAVI Cone 56207 KONAVI Feed Cone Skirt 55816 KONAVI Chick Excluder 55821 Plastic 35lb. Hopper w/Lid 35019-3 1/4 Turn KONAVI Screw 55818 1/4-20 x .50 Phil. - Page 24 Page No. Description of Change Added all Manual Feeders and many other updates 35583 Contact your nearby Chore-Time distributor or representative for additional parts and information. CTB, Inc. PO Box 2000 Milford, Indiana 46542-2000 USA Phone (574) 658-4101 Fax (877) 730-8825 Email: choretime@choretime.com...
