MODEL ATF™ and MODEL ATF™ PLUS Feeding System
Assembling Feeder
1.Insert the Feeder Tube Assembly into the Pan Shield making sure it is oriented such that the Swing Down
Pan Support (Item 1) is in the desired location.
2.Hook the Swing Down Pan Support on the Hole that is formed in the Feeder Pan.
3.Swing the Feeder Pan up and Snap the other three Pan Supports onto the lip of the Feeder Pan.
MF2505A
Hole in Pan where Swing
Down Support is located.
2
Item
Description
1
Swing Down Pan Support
2*
Plastic Feeder Pan
*X= 29000G (Green Pan), 29000 (Red Pan)

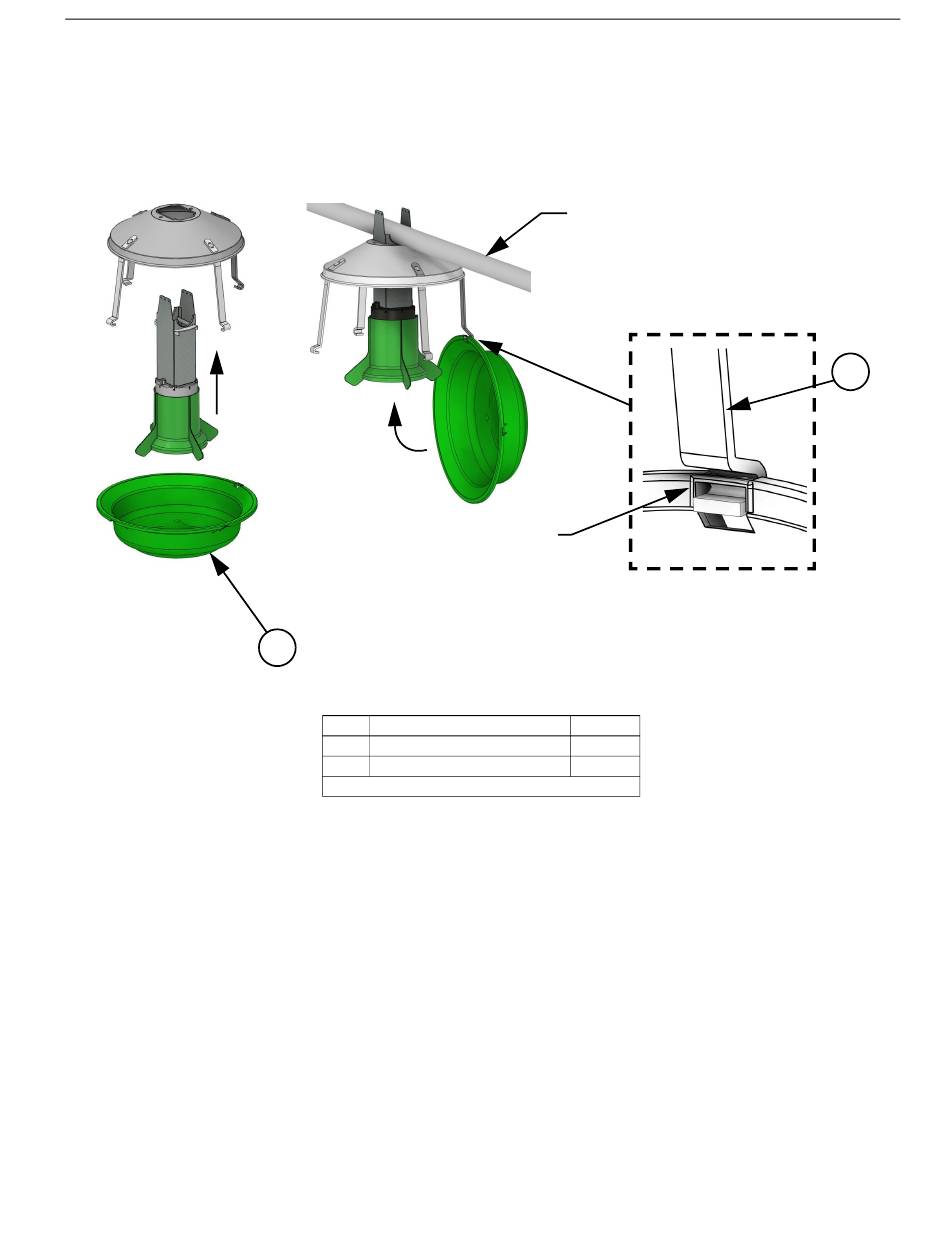

Figure 45.Feeder Assembly
Tube shown only for reference.
Do not install the feeder on the
Tube at this time.
Part No.
49172
29000X
1
37
