Attaching Feeder Cable Assemblies - Chore-Time ATF Installation And Operator's Manual

MODEL ATF™ and MODEL ATF™ PLUS Feeding System

Attaching Feeder Cable Assemblies

1.With both end of the Cable securely anchored and Spring
stretch set, run the Actuator up and down 2 to 3 times.
Return the Actuator to A position.
2.Install two Cable Assemblies (Item 1) at each Feed Level Cone (if the cable assemblies have not yet been
installed). See Figure 37 (on page 33) or See Figure 41 (on page 35).
3.Thread the Cable Assemblies through the holes on each side of the Pan Shield (Item 2) from the underside.
4.Use the Cable Assemblies to raise the Feed Cone (Item 3) and then return it to the down position. Starting at
the Winch, pull the Cable Assemblies toward the Actuator and fasten to the Main Cable with an 1/8" Cable
Clamp (Item 4). Important! The Cords must be routed toward the actuator (center of the brood area).
MF2505A
1
Hole in side of Pan Shield

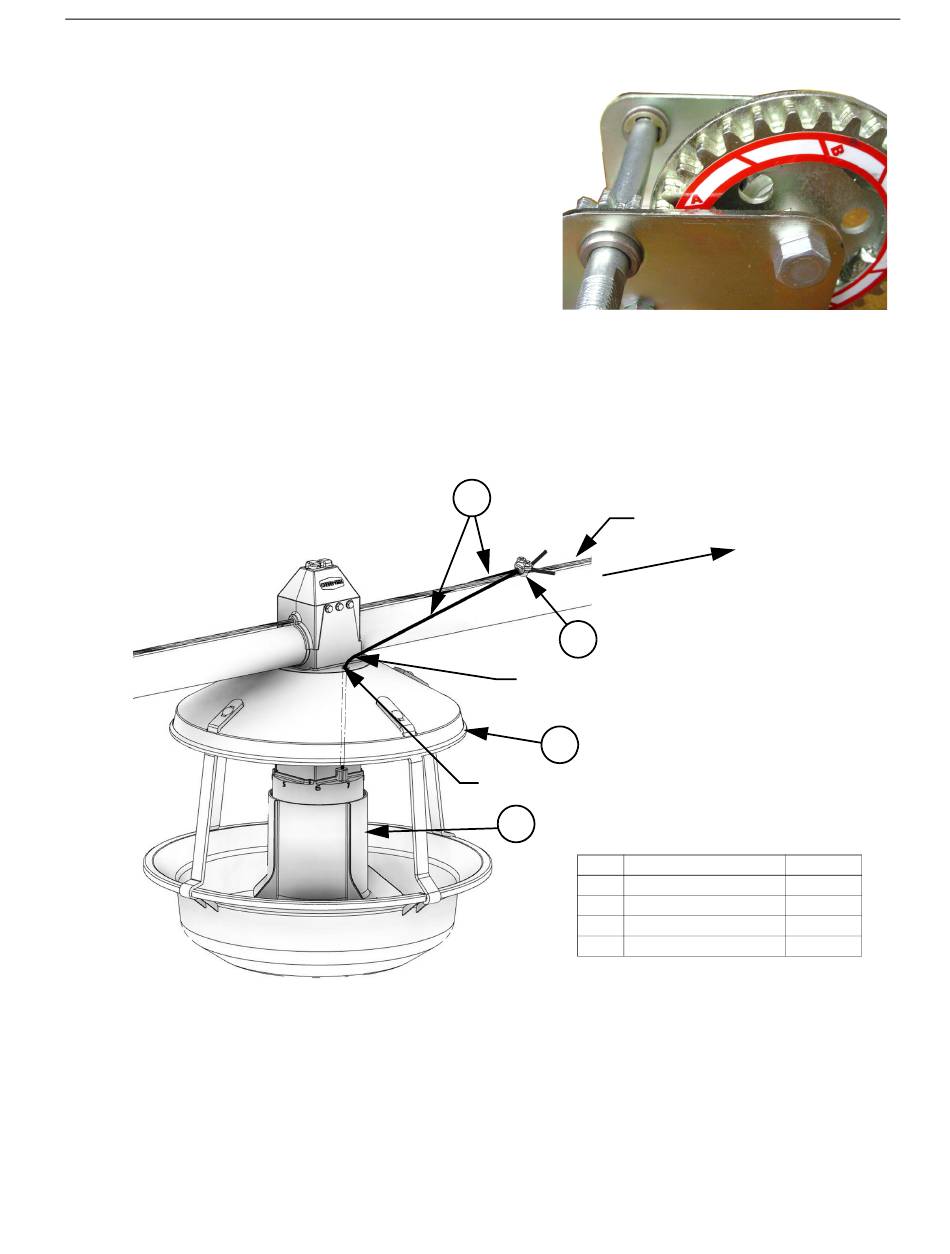

Figure 50.Attaching Feeder Cable Assemblies
2381-044 10/15
Main Cable
Winch
(Center of Brood Area)
4
With the Winch in the down position, there
should be no tension in the Lift Cables.
2
3
Item Description
1 Lift Cable Assembly
2 Pan Shield
3 Feed Cone
4 1/8" Cable Clamp
Part No.
53207
Varies
Varies
14898
41
