REVOLUTION® 8 Rooster Feeder Variable Brood Feeding System Feeder Line Assembly and Suspension (Window Cone System)

Feeder Line Assembly and Suspension (Window Cone System)

ACCU-CLICK™ Actuator Installation
The actuator assembly is to be installed in the middle of the total pans the actuator is to operate. Using two half
clamps provided with the actuator attach the actuator assembly to the feeder tube between two pans. The two
halves of the clamps are not the same. The wider half will attach to the base of the actuator. The other half
will be installed over the tube, sliding into the wider half of the clamp.
When Installing the Actuator the Tube Seam must be on the side opposite the Actuator Handle, see figure
31. It may be necessary to use a tube closure kit if the actuator is to be placed near a feed outlet hole on the tube.

Feeder Pan and Tube Assembly Process

1.Slide one Feeder Pan Assembly per hole onto the auger tubes.
IMPORTANT: Install all the feeders on the tubes in the same orientation.
When sliding the feeders on the tubes, make sure the pivot bracket are on the same side of the tube.
2.IMPORTANT: Tube Closure kits will need to be installed on the auger tubes at each hole a feeder pan
assembly is not installed at.
Rotate the auger tubes so that the seam is down, this holds the Pan Assemblies in place on the tubes.
3.
See Figure 32.
MF1916B

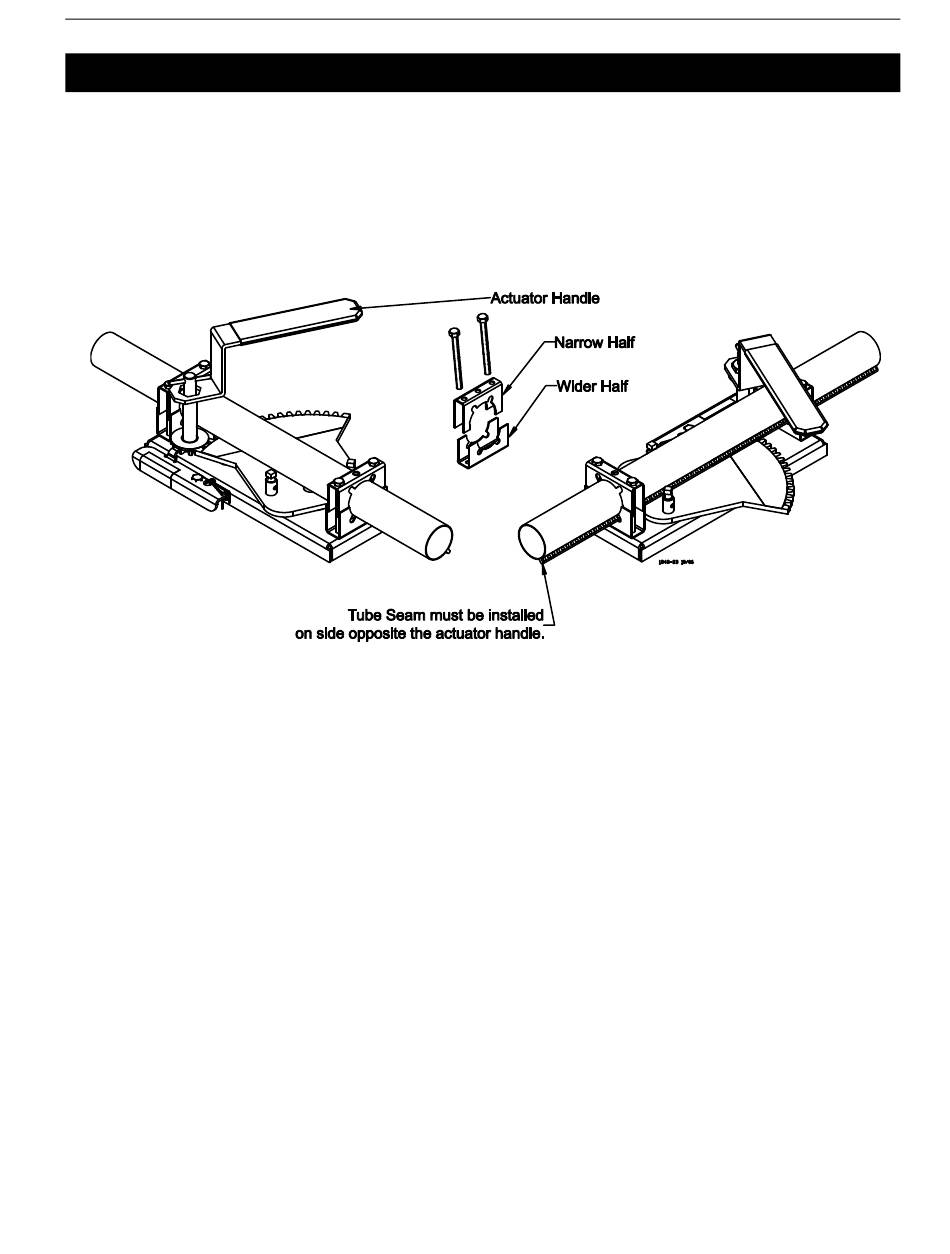

Figure 31. ACCU-CLICK™ Actuator installation
23
