Feeder Installation
The Feeders are designed to swing down for cleaning. Determine which way you want your Pans to swing down
and install the Feeders accordingly.
1.Install Spacer Clips (Item 1) at each hole on the Auger Tubes as shown in Figure 46. The Spacer Clip sur-
rounds the Bent down tab formed into the Auger Tube. These Spacer Clips keep the Feeder from moving
side to side on the Auger Tube.
2.Fasten the Feeders to the Feed Tube using the ATF Drop Tops (Item 2) and #10-3/8" Screws (Item 3) as
shown.
Bent Down Tab
38
1
Item
Description
1
Spacer Clip
2
ATF Plus Drop Top
3
10-3/8 HWHD Screw

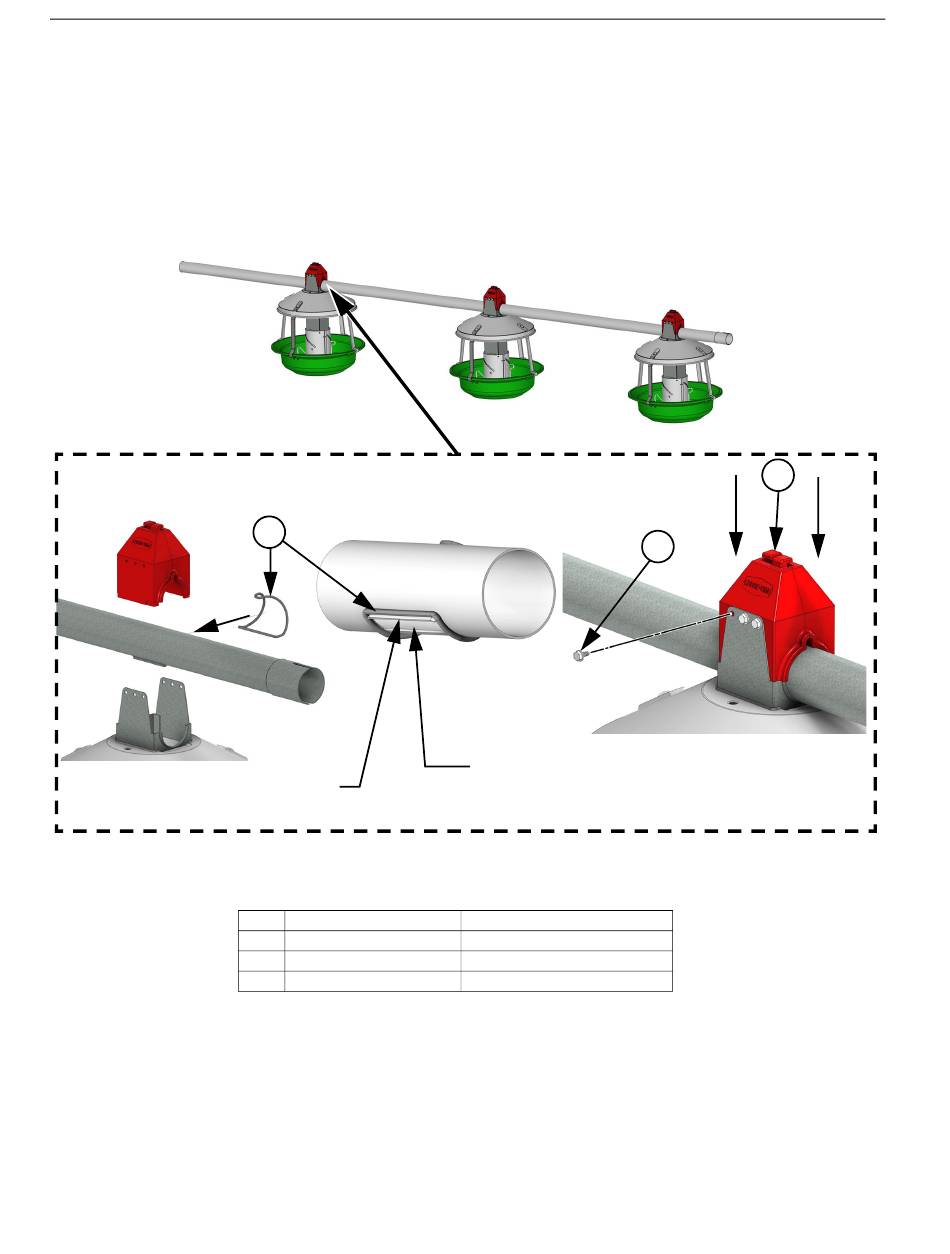

Figure 46. Install Feeders on Tubes
MODEL ATF™ and MODEL ATF™ PLUS Feeding System
X6
3
Hole in Auger Tube
Part No. Single Boot Kit
57092
56560
5776
2
MF2505A
