MODEL ATF™ and MODEL ATF™ PLUS Feeding System
Attaching the Main Winch Cable (Temporarily)
Plan for a Double-Back Pulley arrangement if over 350' [107m] (See Figure 10.)
Double Back Pulley Installations (Feed Lines over 350' [107m])
Cable Routing at Winch
Wrapping Cable on Winch Drum
2
MF2505A

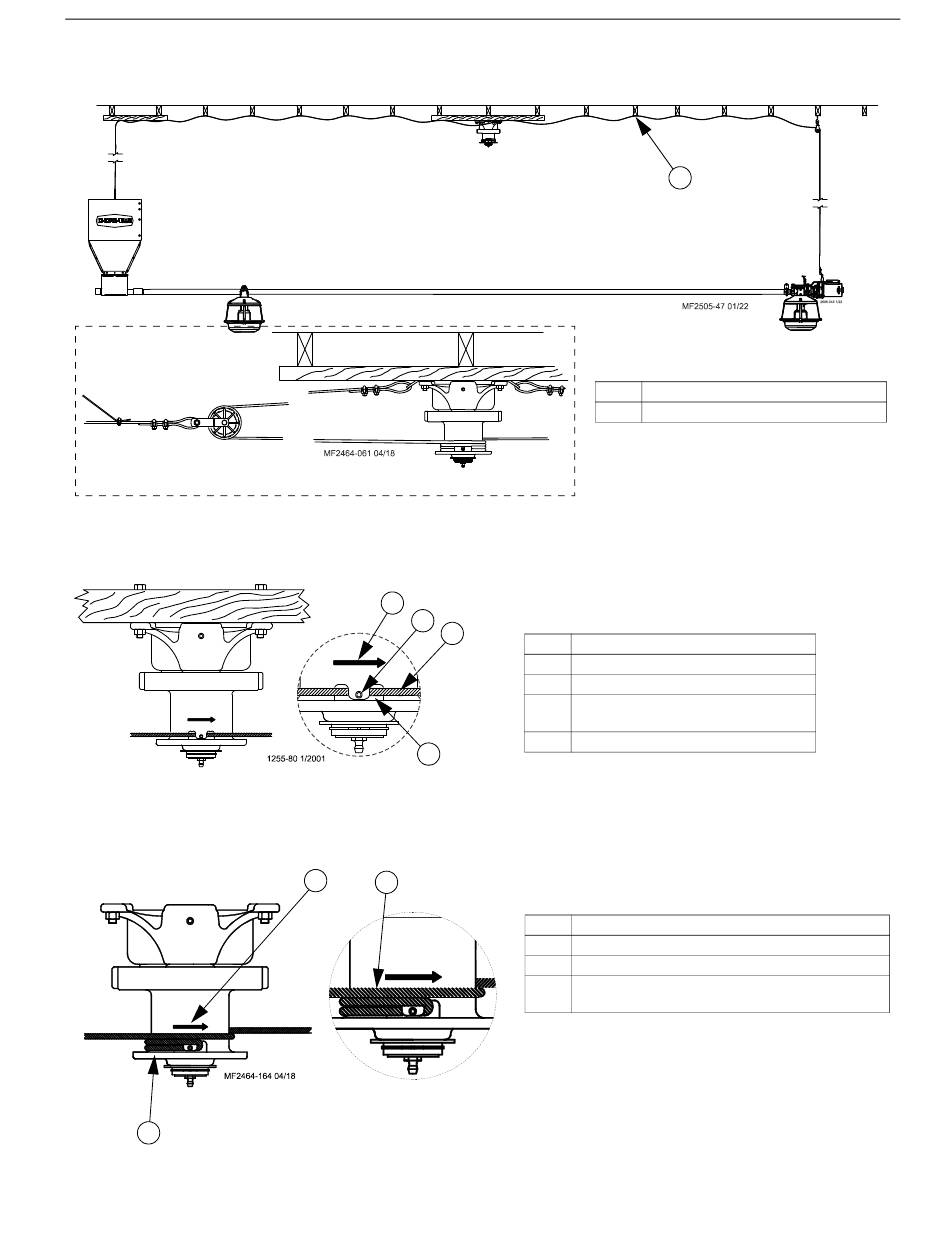

Figure 10.Temporarily Attaching Main Winch Cable to Ceiling
1
4
2
Figure 11.Winch Cable Routing
1
3
Figure 12.Wrapping Cable on Winch Drum
Item
1
3
Item
1
Direction of Rotation (Clockwise)
2
Winch Drum Relief with Setscrew
3
Route 3/16" Main Winch Cable
through Winch Drum Relief
4
Tighten Set Screw to Anchor Cable
Item
1
Rotate Winch Drum one full rotation Clockwise
2
Guide Cable against Flange
3
Cable must not overlap. Each Wrap tight to the
next.
1
Description
Fasten Cable with Nails, Staples, Etc.
Description
Description
Installation
17
