14.2 Attaching seat upholstery

About this task

Steps

Installation manual

NOTE

Screws must be used to secure the seat upholstery.

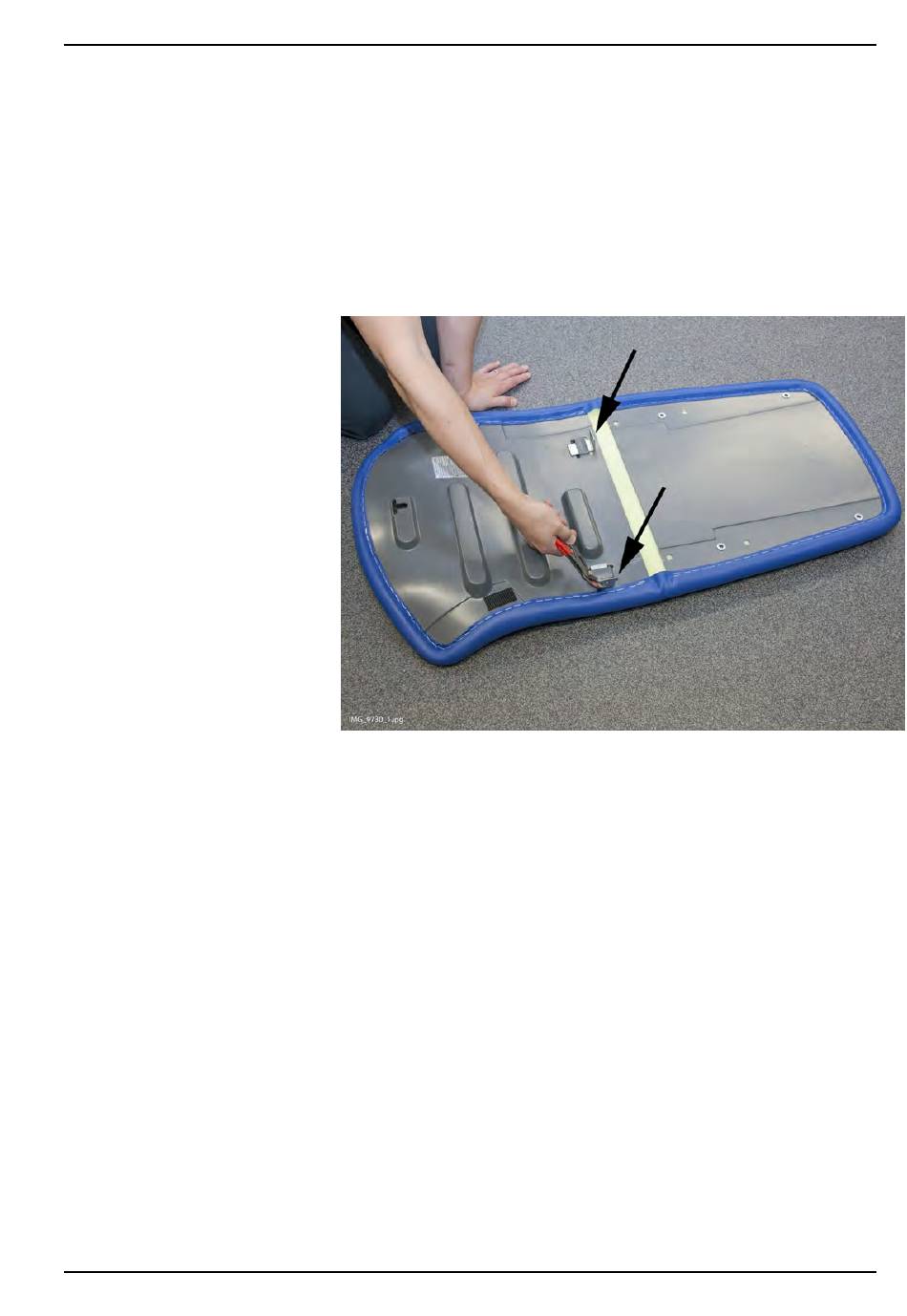

1. Slide the attachment plates to their positions at the seat upholstery

backplate, short end first.

2. Slide the seat upholstery towards the backrest casting in a way that the

attachment screw goes into the groove of the upholstery's backplate.

NOTE

You can bend the seat upholstery carefully from its sides to make the

attachment easier. If the attachment screw does not go into the groove,

the screw can be slightly opened by turning it clockwise. Make sure that

you have slid the upholstery as far as it goes.

14 Attaching chair upholsteries

Planmeca Compact i3
