5 Installing junction box
18
Planmeca Compact i3

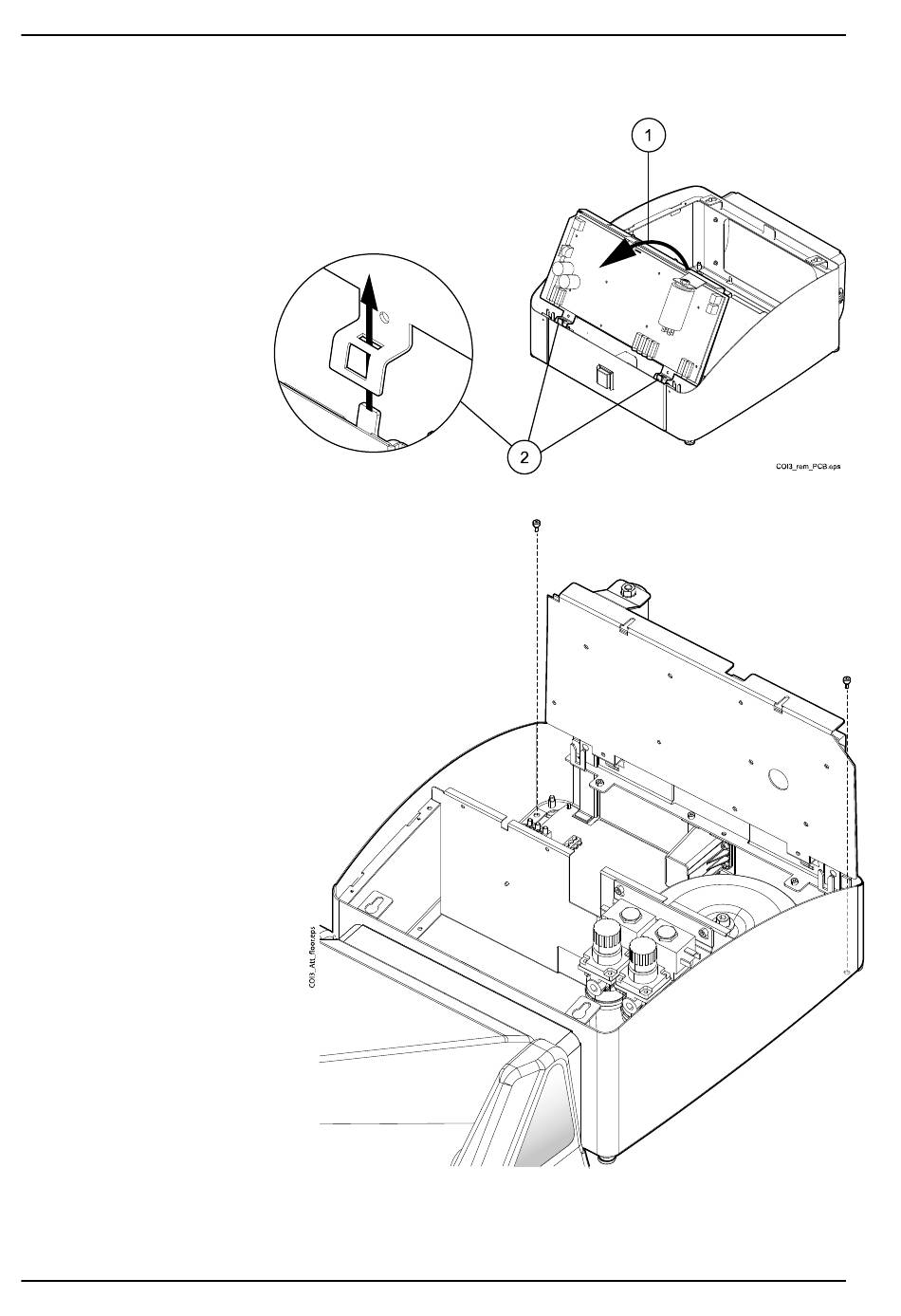

5. Tilt the Main control PCB away upwards (1) and secure it to the clips
located on the box frame (2).
6. Attach the junction box to the floor with two screws DIN 7981 4,2 x 25.
Installation manual
