9 Installing vertical arm
52
Planmeca Compact i3
18. Operating light: Route the operating light cable from the seat along the
lower cable duct in the lifting mechanism to the junction box. Connect the
operating light cable to terminal P11 marked Solanna on the Main control
PCB.
CAUTION
Take care when connecting the operating light cable. Connecting it
incorrectly will not cause any damage because of an internal protection,
but the light will not work.

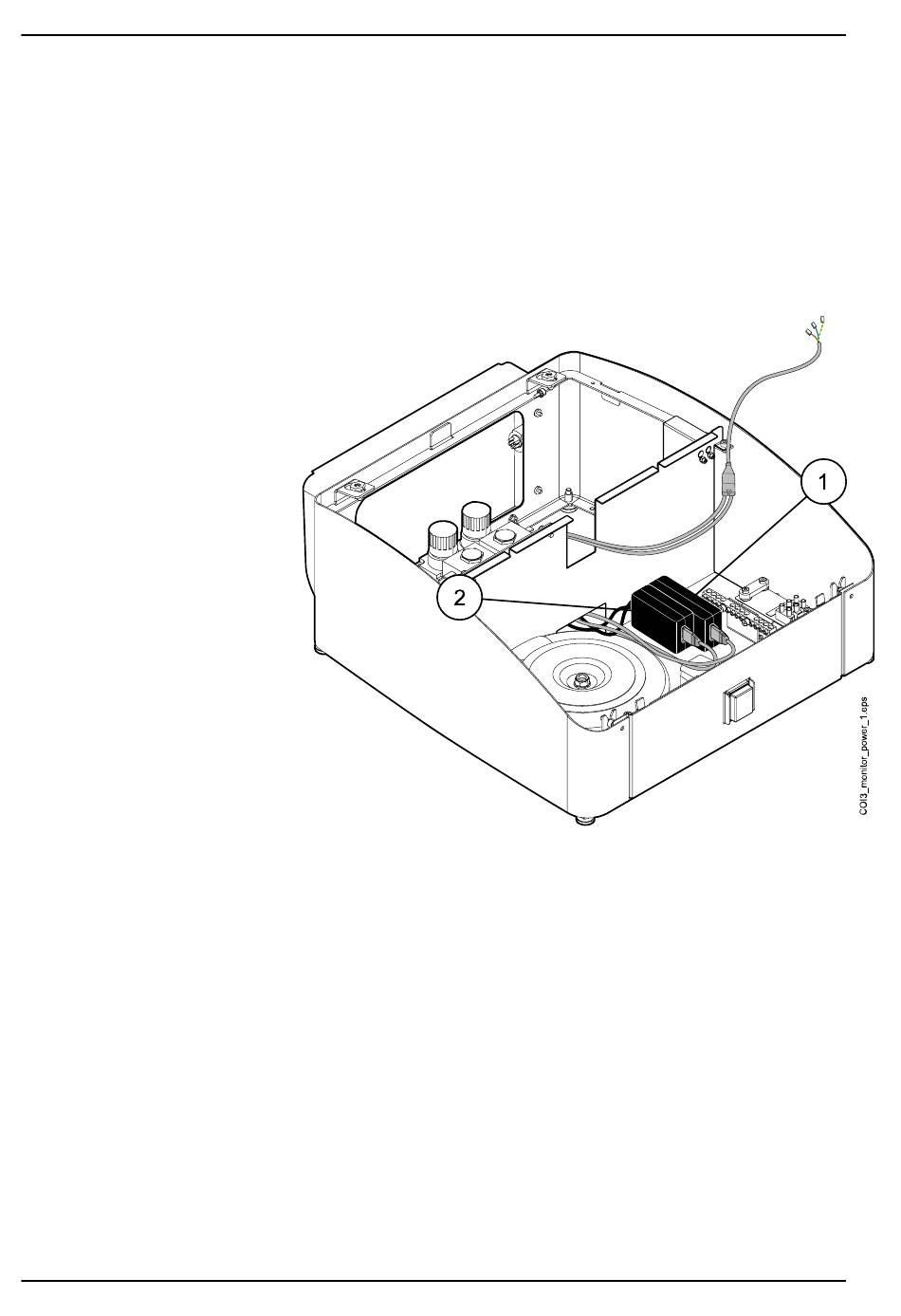

19. Monitor: Connect the monitor power (1) and the Planmeca Emerald
power (2).
20. Monitor: Route the monitor power cable from the junction box to the
lifting mechanism and connect it to the power cable coming from the
monitor.
21. Monitor: Route the monitor HDMI cable from the inside of the seat along
the lower cable duct in the lifting mechanism to the junction box, and
connect it to the outgoing HDMI cable.
