9 Installing vertical arm

About this task
Steps
Installation manual
NOTE
The monitor and the Planmeca Solanna operating light are optional features.

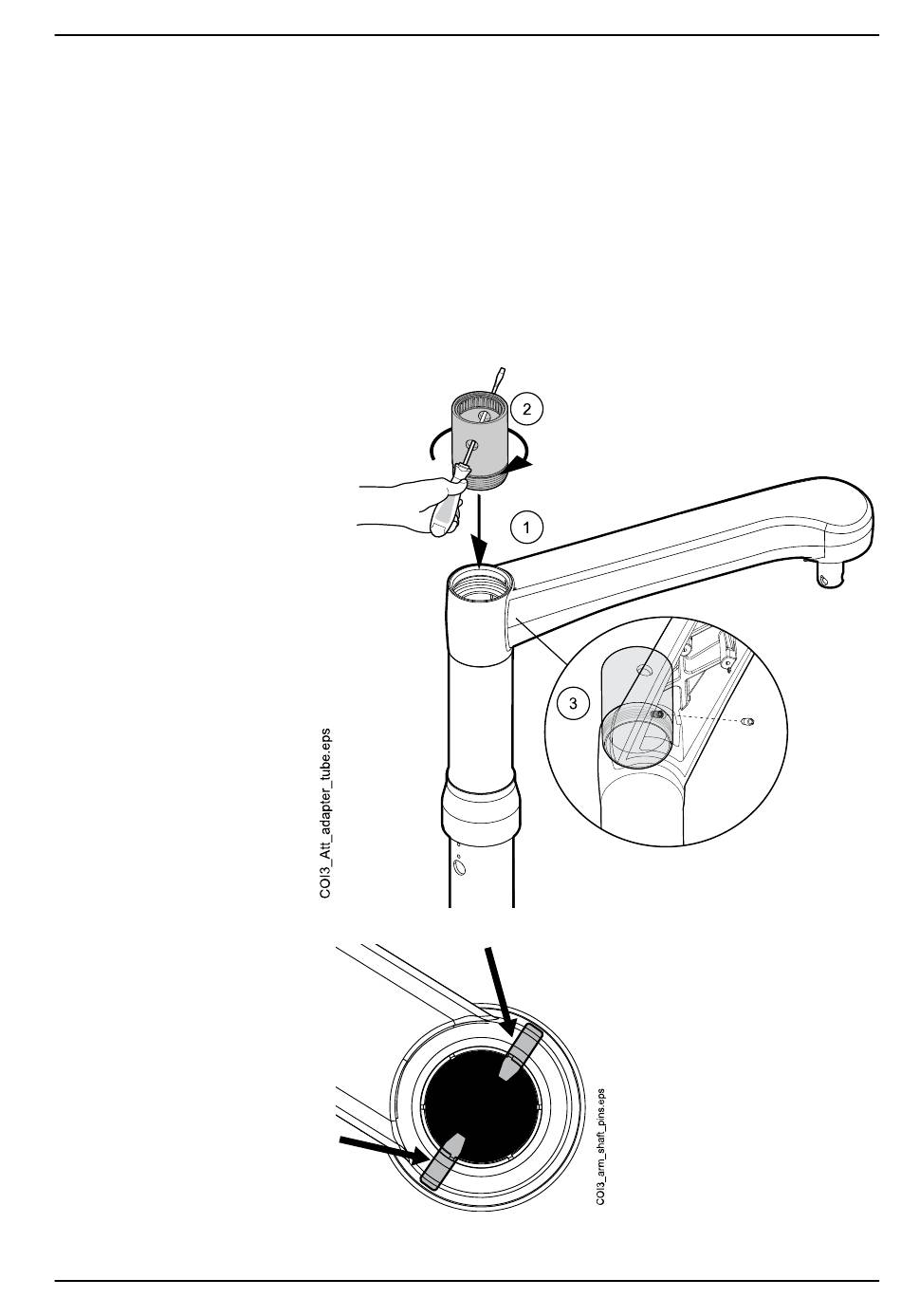

1. Attach the adapter tube on the OP delivery arm (1).
1.a.
Screw the adapter tube into place (2).
1.b.
Secure the tube to its position with the fastening screw (3).
2. Two arm shaft attachment pins are located inside the delivery arm.
9 Installing vertical arm
Planmeca Compact i3
43
