7.5 Dental units without operating light and monitor
About this task
Installation manual

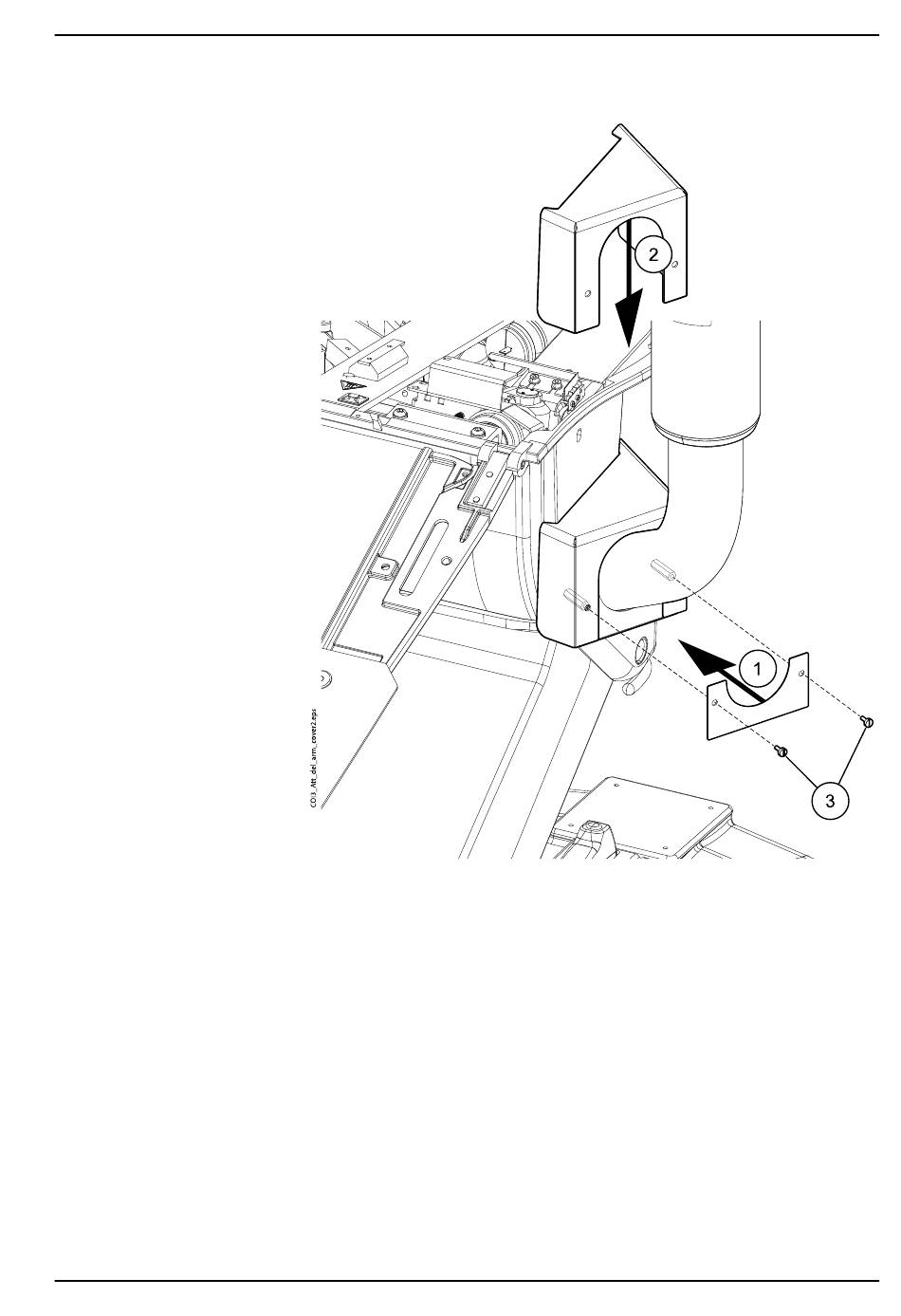

2. Place the lower cover plate (1) and adapter cover plate (2) into position.
Attach the cover plates with two screws DIN84 M4x8 (3).
If you are not installing the operating light and / or monitor, a cover plug is
inserted to the OP delivery arm opening.
7 Installing OP delivery arm
Planmeca Compact i3
33
